1994 Mazda MX-3 Service and Repair Manual

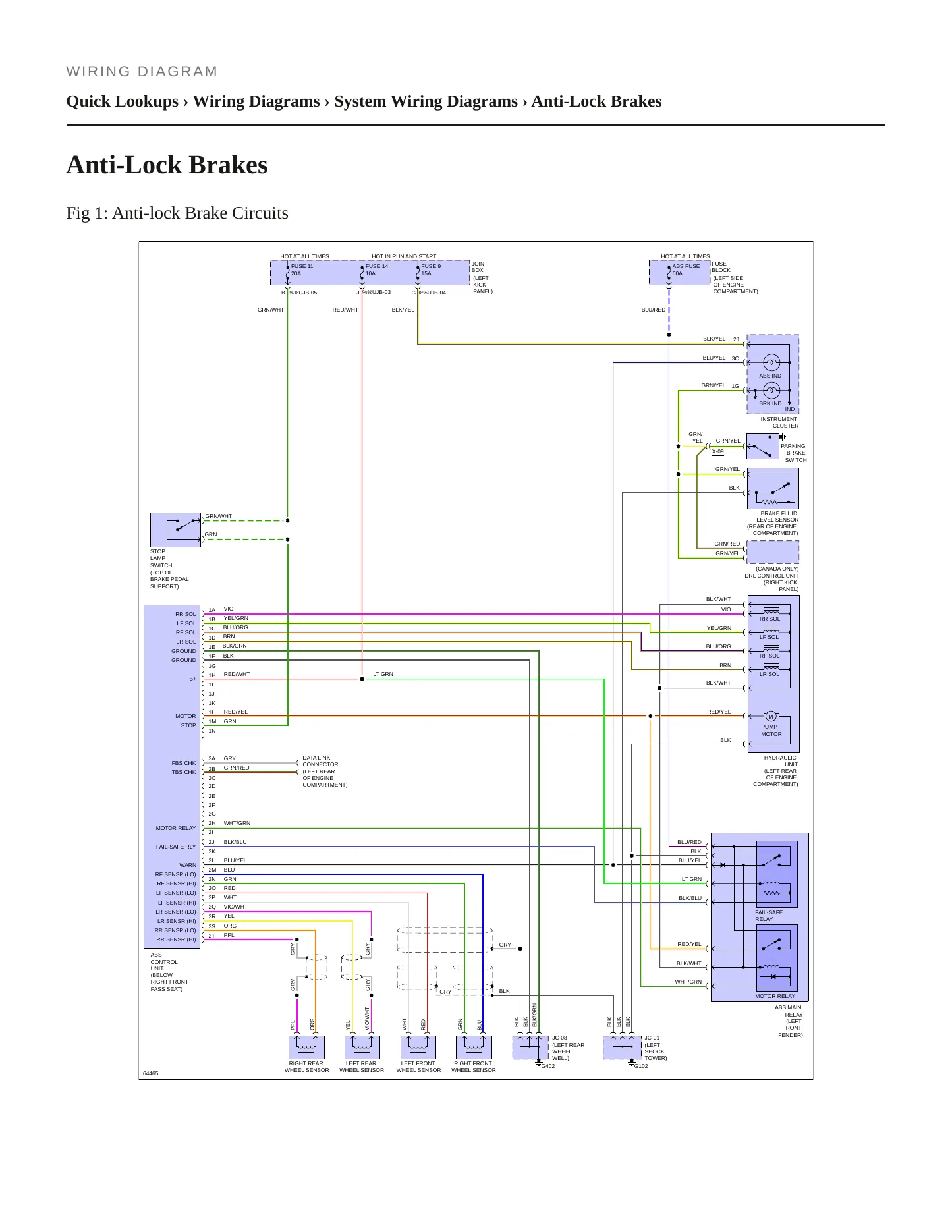

This factory service and repair manual for the 1994 Mazda MX-3 covers two engines, both with double overhead camshafts, both naturally aspirated and both burning gasoline: a 1.6L inline-four and a 1.8L V6. They power the 2-door coupe, listed in Base and GS trims. Specifications, torque values and procedures are given for the engines and their fuel, ignition and cooling systems, and wiring diagrams and diagnostics support work on the electrical system, the transmission, brakes, suspension, steering and body.

Engines covered

• 1.6L inline-four — DOHC, naturally aspirated, gasoline
• 1.8L V6 — DOHC, naturally aspirated, gasoline

Body styles covered

• 2-door coupe

Trims covered

• Base
• GS

Known issues on the 1994 MX-3. The 1994 MX-3 has a single recall and 19 owner complaints in NHTSA's data. It applied to certain 1994 MX-3 vehicles originally sold or registered in certain states where road salt is heavily used: salt could pit the front coil springs until one broke, and a broken spring could puncture a tire. The remedy was a guard assembly that keeps a broken spring away from the tire. Nine of the complaints cite suspension and six cite air bags; 7 complaints reported a crash and 4 an injury. Suspension and air bag procedures, specifications and diagnostics are in the manual.
