1989 Audi 90 Quattro Service and Repair Manual
Regular price
$40.99 USD
Unit price
Fits the 1989 90 Quattro — Base Sedan 4-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

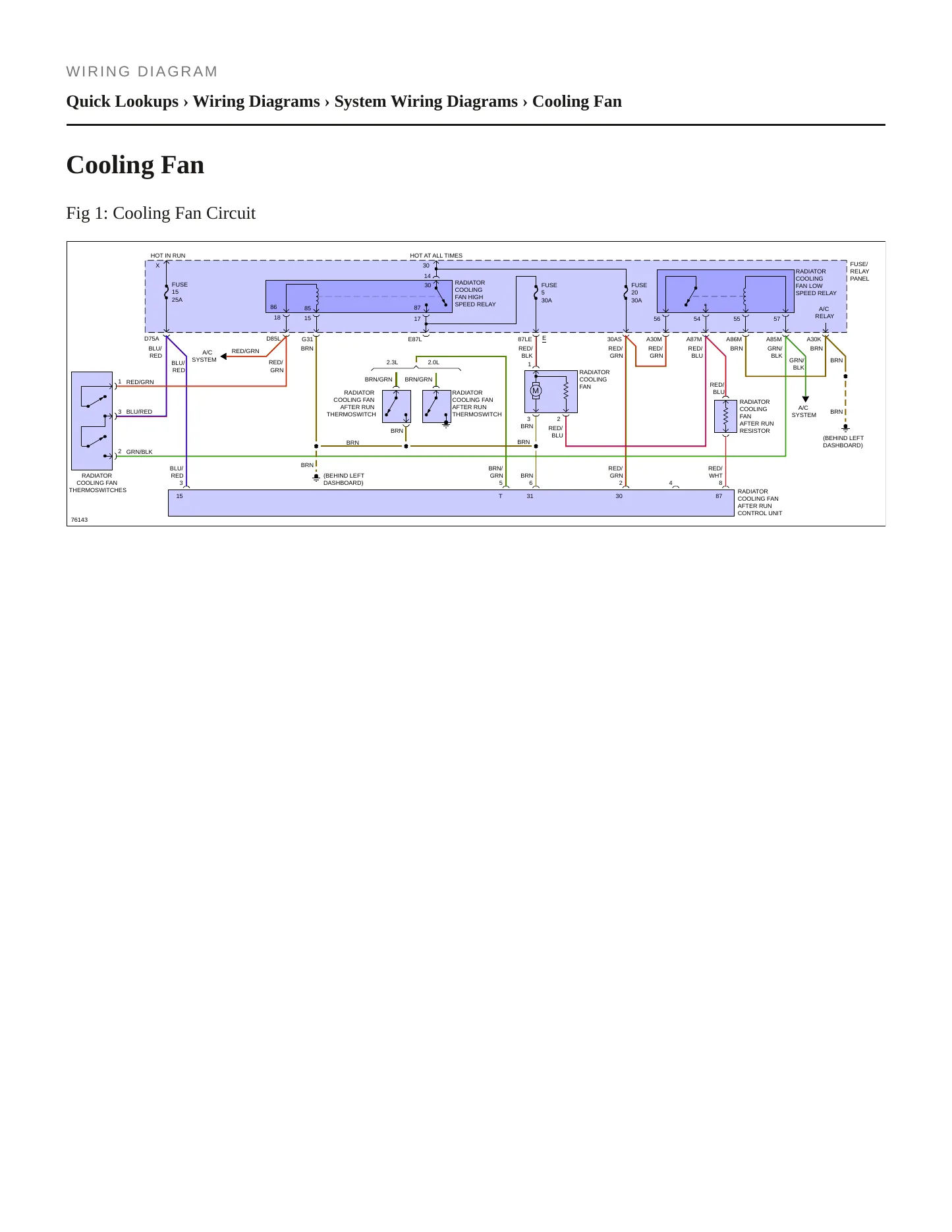

Wiring diagrams & schematics

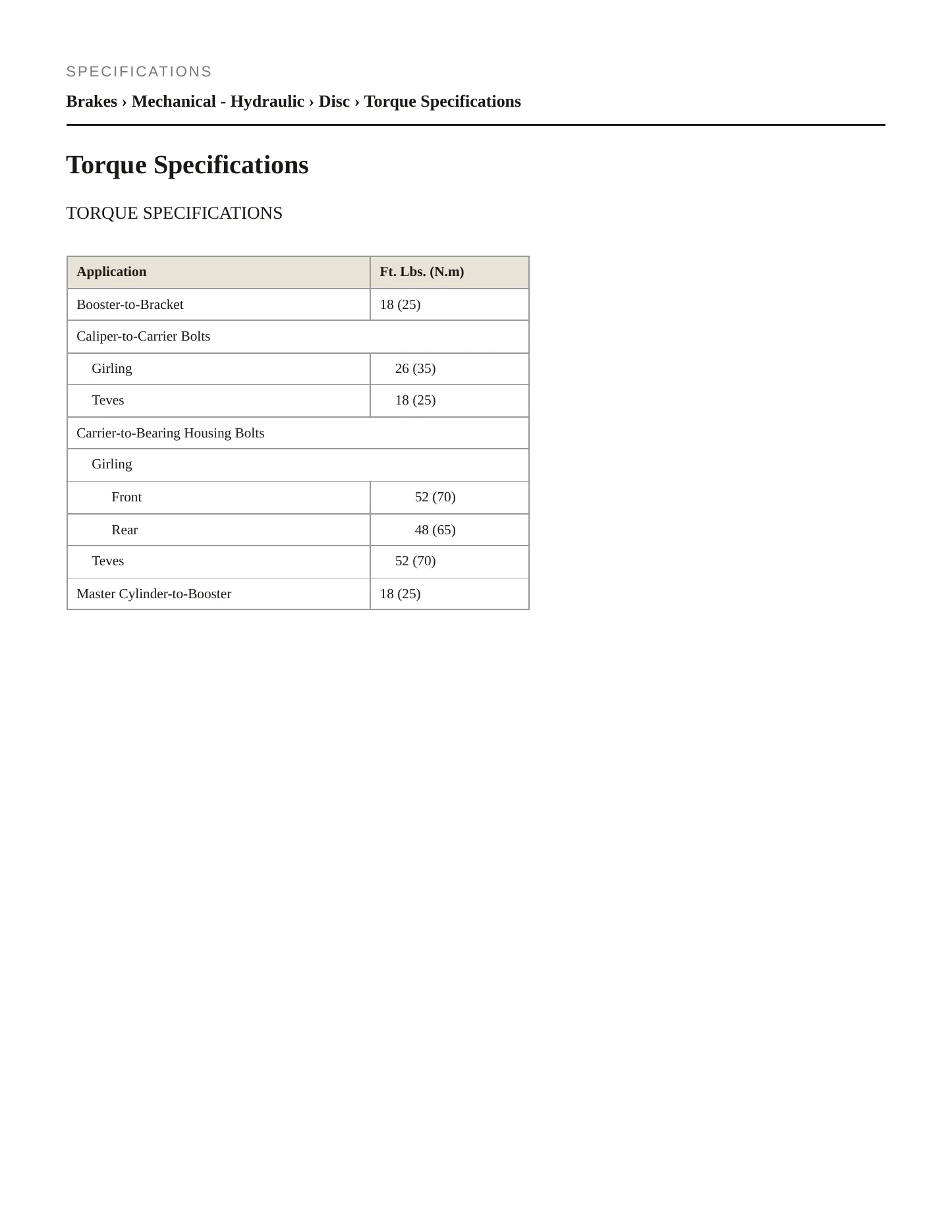

Torque specifications
Full search & bookmarks
$40.99
1989 Audi 90 Quattro Service and Repair Manual
Regular price
$40.99 USD
Unit price
This service and repair manual is built specifically around the 1989 Audi 90 Quattro, so the specifications, wiring routes and repair sequences inside are the ones Audi actually published for this year and trim rather than an approximation drawn from a similar model.
Engines covered
- 2.3L inline-five — SOHC, naturally aspirated, gasoline
Body styles covered
- 4-door sedan
Trims covered
- Base
Known issues on the 1989 90 Quattro. Two recalls are on federal record for this model year. The first covers the transaxle differential: oil is lost over time to evaporation, and the resulting low fluid level causes premature bearing and gear wear that can lead to axle failure, potentially locking the front wheels, causing rapid deceleration and loss of vehicle control. The second covers the frontal air bag sensor and control module, which does not meet Audi's durability standards over the vehicle's lifetime and can malfunction, deploying the air bag without warning and causing the driver to lose control. No complaints or technical service bulletins are logged for the year. The factory diagnostic and repair procedures behind both systems are here.
From a differential fluid check to inspecting the air bag sensor wiring, it keeps you on the OEM procedure and the correct specification for your specific 1989 90 Quattro.
THE DIFFERENTIAL OIL OF THE TRANSAXLE IS LOST OVER TIME DUE TO EVAPORATION. LOW OIL LEVELS CAUSE PREMATURE BEARING AND GEAR WEAR AND EVENTUAL FAILURE OF THE DIFFERENTIAL.
Consequence
IN THE EVENT OF FAILURE, THE VEHICLE'S DRIVE WHEELS COULDLOSE POWER. IN EXTREME CIRCUMSTANCES, THE FRONT WHEELS LOCK, CAUSING RAPIDDECELERATION RESULTING IN POSSIBLE LOSS OF VEHICLE CONTROL AND AN ACC
Remedy
DRAIN AND REPLACE THE DIFFERENTIAL GEAR OIL WITH OIL HAVING HIGHER PERFORMANCE CHARACTERISTICS.
VEHICLE DESCRIPTION: PASSENGER VEHICLES. SOME AIR BAG SENSORS DO NOT COMPLY WITH AUDI'S DURABILITY STANDARDS OVER THE LIFETIME OF THE VEHICLE.
Consequence
IN THE EVENT THE SENSOR SHOULD MALFUNCTION, THE AIR BAG RESTRAINT SYSTEM CAN INADVERTENTLY DEPLOY. DEPLOYMENT OF THE AIR BAG RESTRAINT SYSTEM WITHOUT WARNING COULD CAUSE A DRIVER TO LOSE VEHICLE CONT
Remedy
DEALERS WILL REPLACE THE AIR BAG SENSOR CONTROL MODULE.
No service bulletins
No technical service bulletins on file with NHTSA for the 1989 Audi 90 Quattro.
No complaints filed
No consumer complaints on file with NHTSA for the 1989 Audi 90 Quattro.
