1984 Dodge Ramcharger Service and Repair Manual

This factory service and repair manual for the 1984 Dodge Ramcharger covers the Base and Royal SE trims of a truck built in one shape, the two-door sport utility. Under the hood sat either the 318-cubic-inch 5.2L V8 or the 360-cubic-inch 5.9L V8, each an overhead-valve, naturally aspirated gasoline engine. For both engines you get specifications, torque values and diagnostics, alongside procedures for the transmission, drivetrain, brakes, steering, suspension and body.

Engines covered

• 5.2L V8 (318 cu in) — OHV, naturally aspirated, gasoline
• 5.9L V8 (360 cu in) — OHV, naturally aspirated, gasoline

Body styles covered

• 2-door sport utility

Trims covered

• Base
• Royal SE

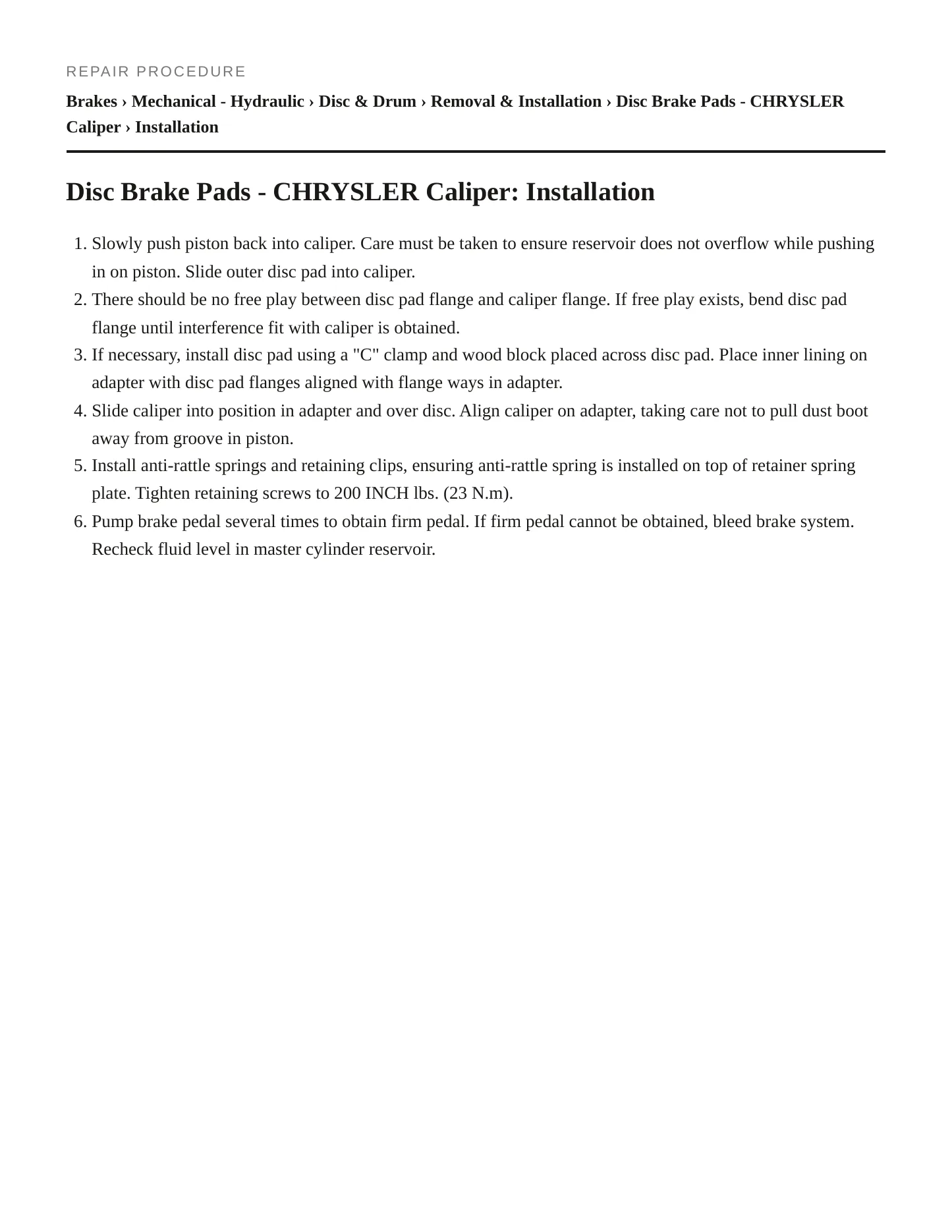

Known issues on the 1984 Ramcharger. Two recalls sit on the federal record for the 1984 Ramcharger. A leaking seal on the piston inside the brake master cylinder could make the front brakes cut out intermittently on certain 1984 Ramcharger vehicles, and the master cylinders were replaced. Separately, certain 1984 Ramcharger vehicles fitted with step bumpers but lacking a fuel tank skid plate fell short of the federal rear-impact fuel system standard, since the bumper could give way and fuel could leak; a skid plate was added. The manual gives brake and fuel system procedures, specifications and diagnostics.
