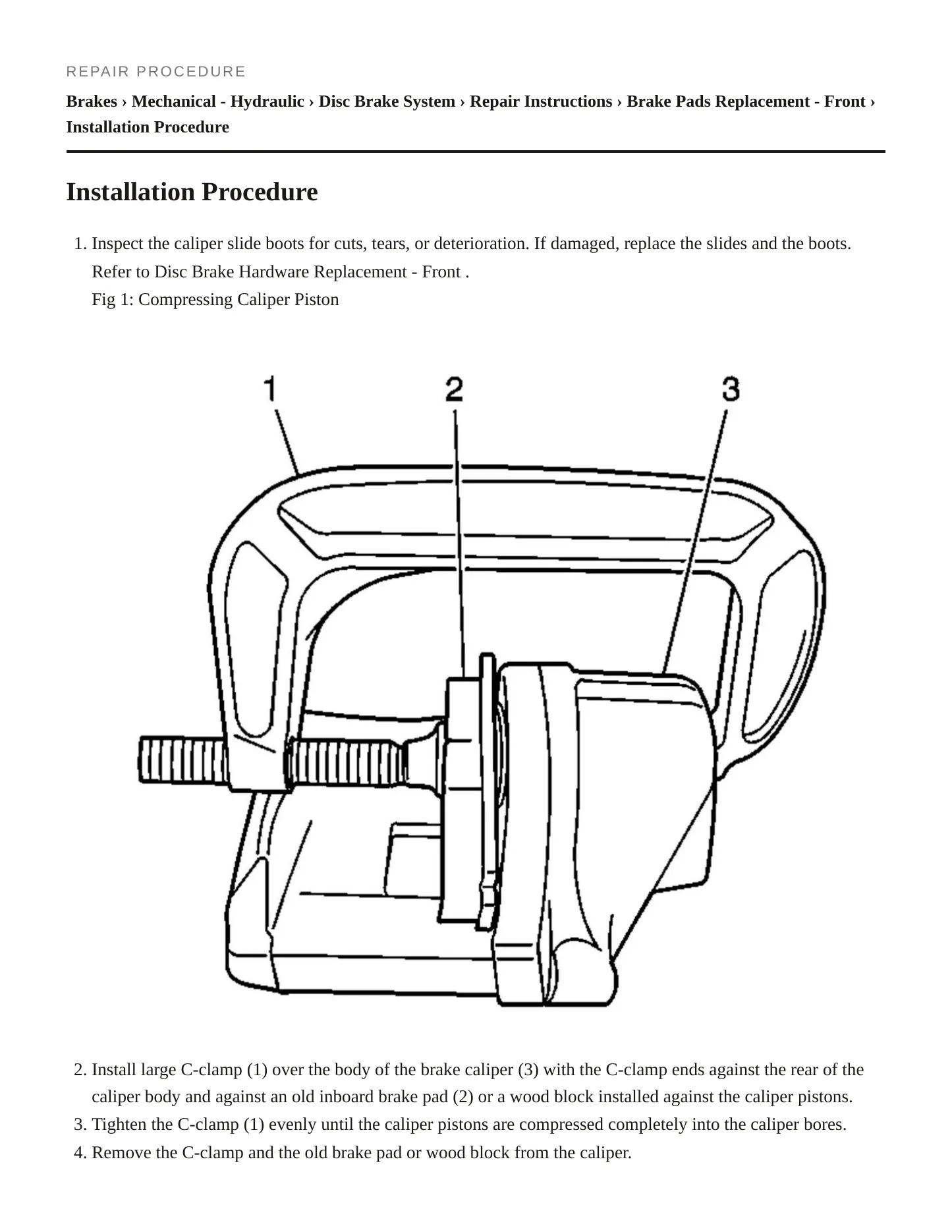

Complete repair procedures
Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
Scroll to view more pages
2004 Cadillac XLR Service and Repair Manual
Regular price
$29.99 USD
Unit price
2004 Cadillac XLR service and repair manual — a detailed, factory-style reference for maintenance, diagnostics, and repair. Use it to confirm correct procedures, specifications, and system coverage before you start work.
Built for technicians and DIY owners, this manual helps you troubleshoot accurately, follow step-by-step repair procedures, and use wiring diagrams and system sections to diagnose problems faster.
What’s included
- Step-by-step repair procedures and service information
- Specifications and reference data (where provided)
- Electrical coverage with wiring diagrams
- Coverage across key systems: engine, transmission, brakes, steering, suspension, HVAC, and more
Trims covered
- Base Convertible 2-Door
Engines covered
- 4.6L 281Cu. In. V8 GAS DOHC Naturally Aspirated
Index / Table of contents
- Body

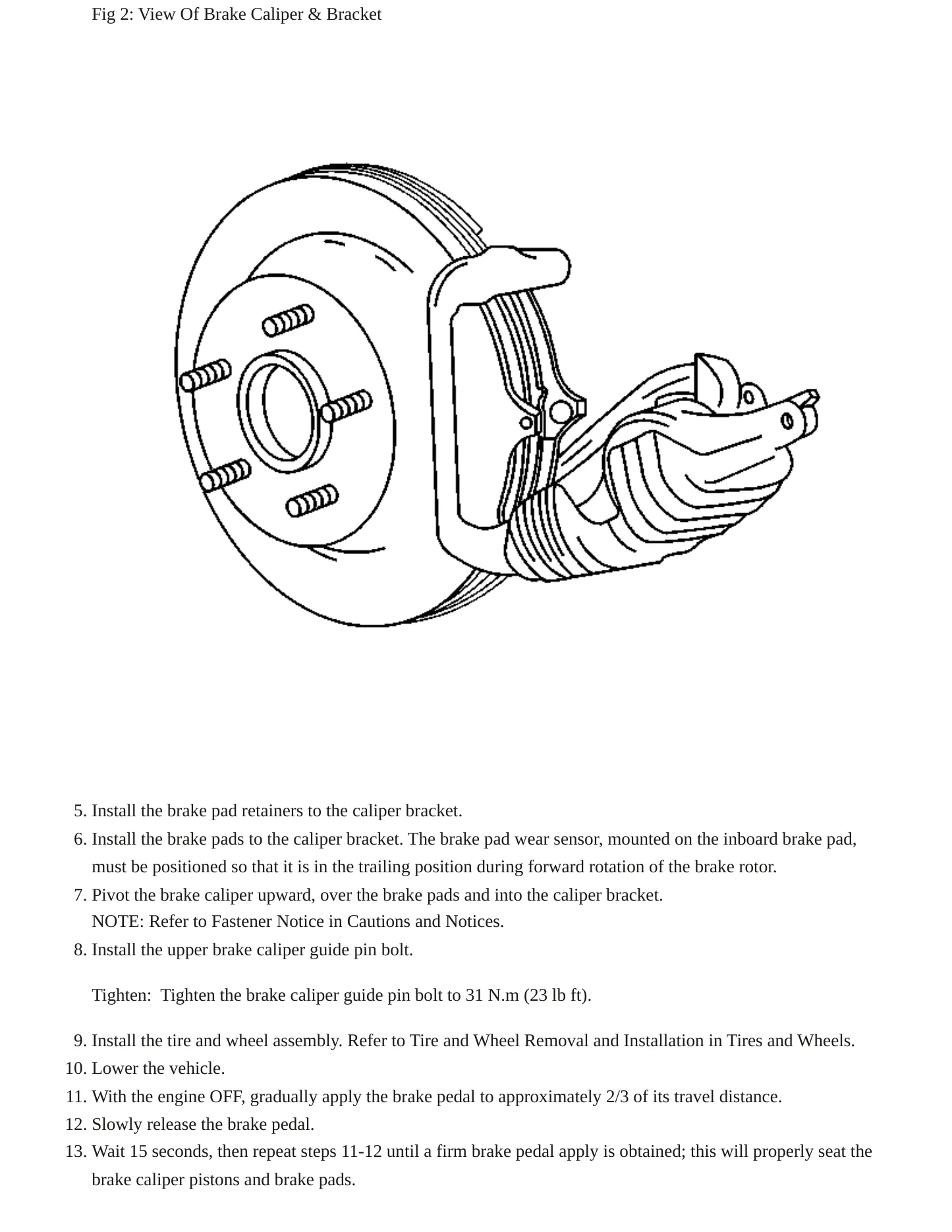

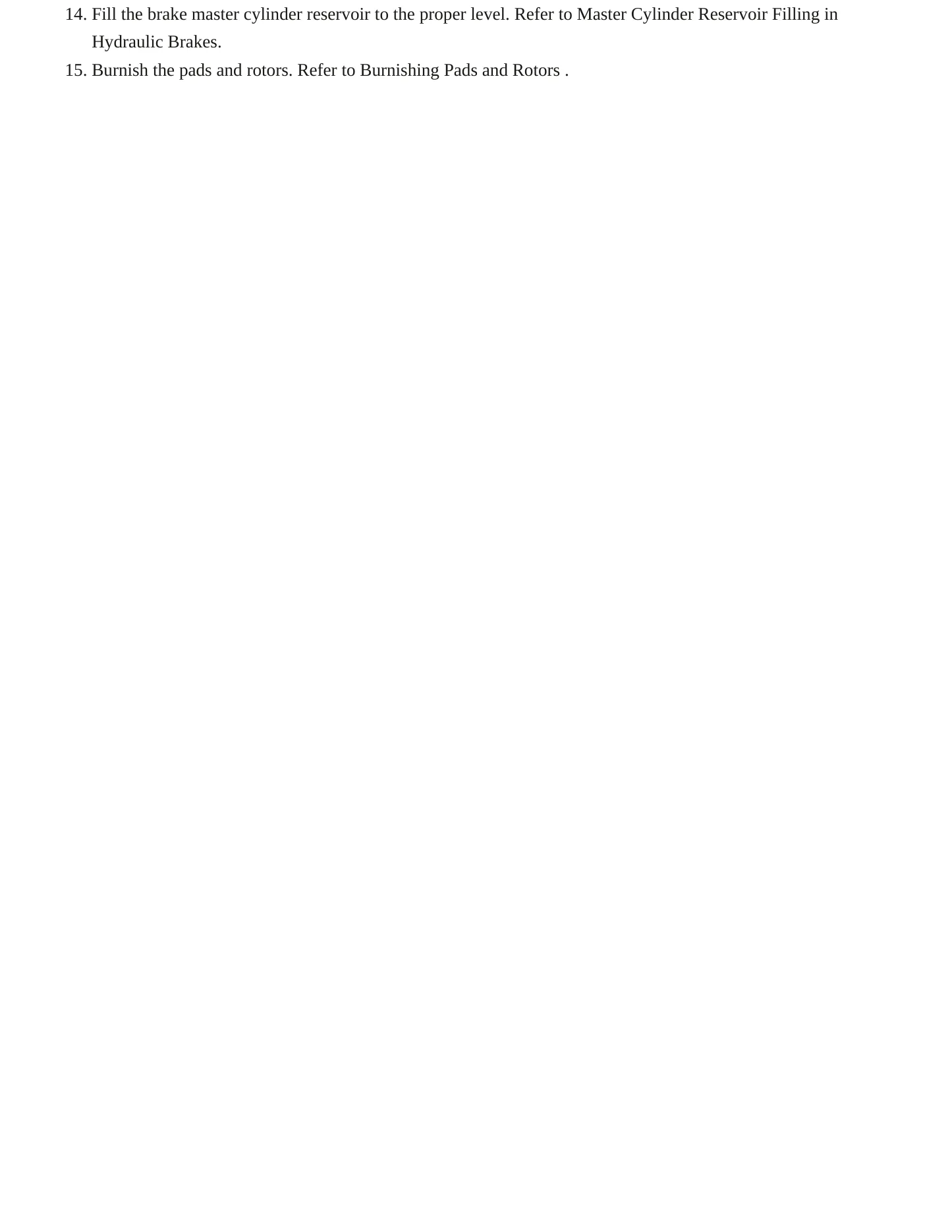

- Brakes
- Chassis Electrical
- Driveline
- Engine Cooling
- Engine Electrical
- Engine Mechanical
- Engine Performance & Emission Controls
- Fuel System
- General Information & Identification

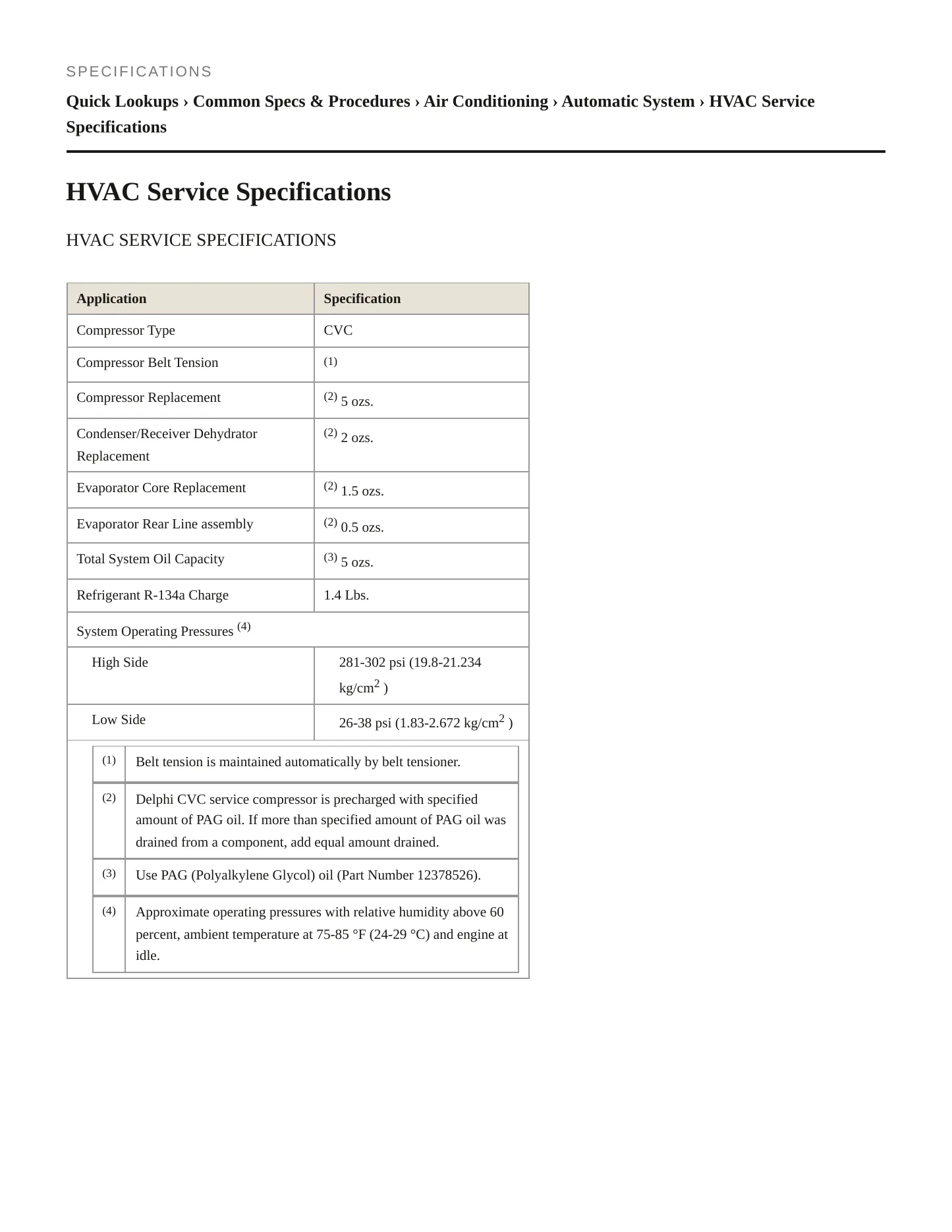

- Heating, Ventilation, & Air Conditioning
- Hybrid & Electric Vehicle Systems
- Steering
- Suspension
- Transmission, Clutch, & Transfer Case

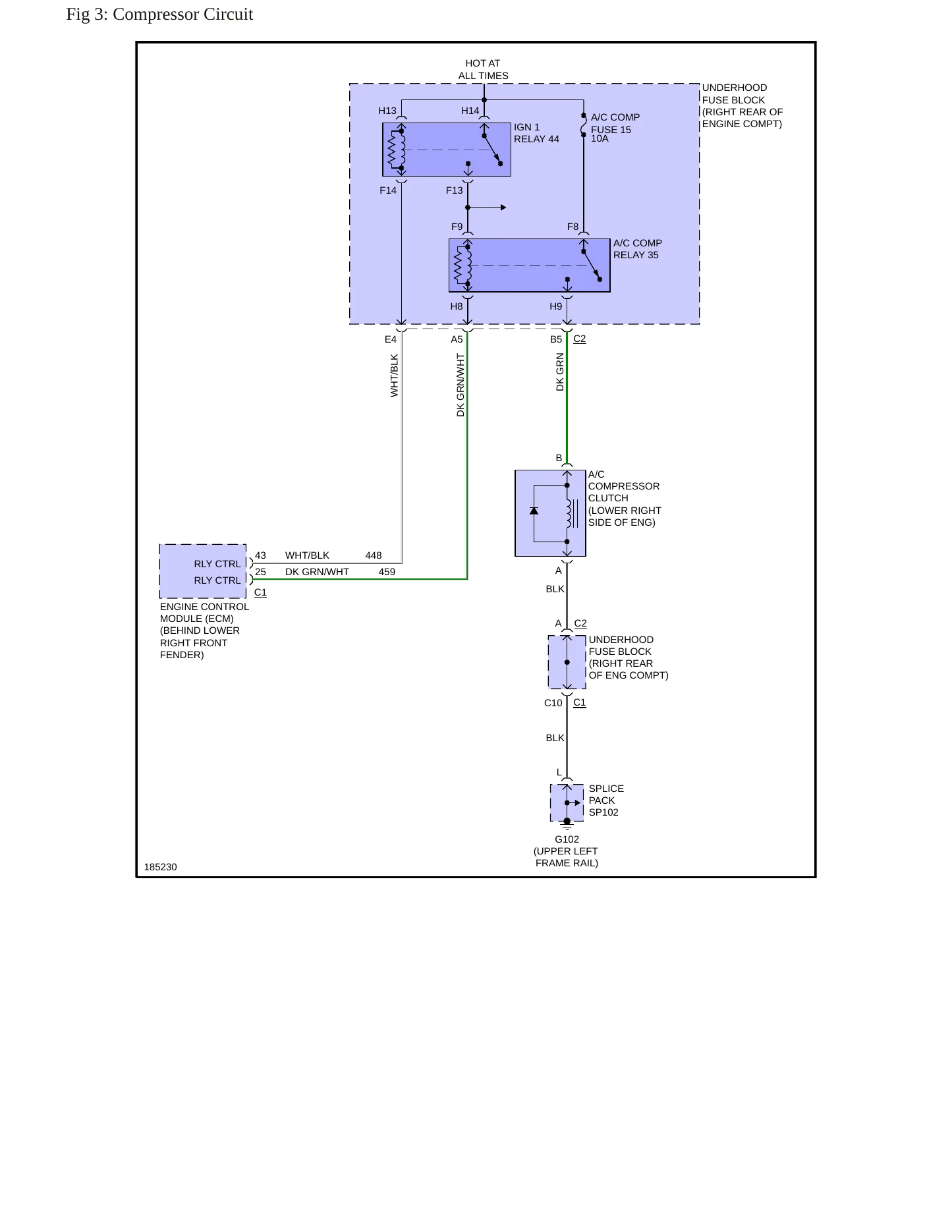

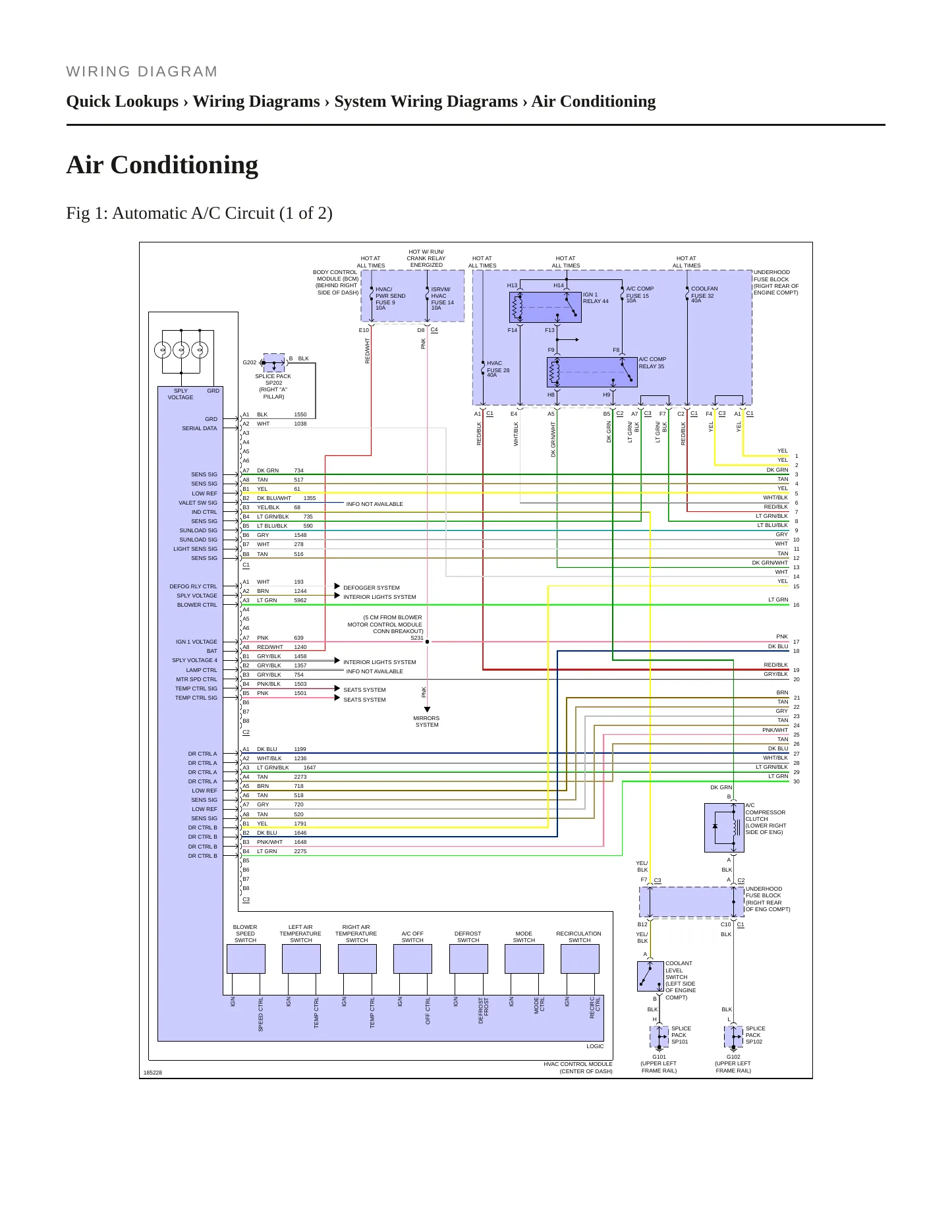

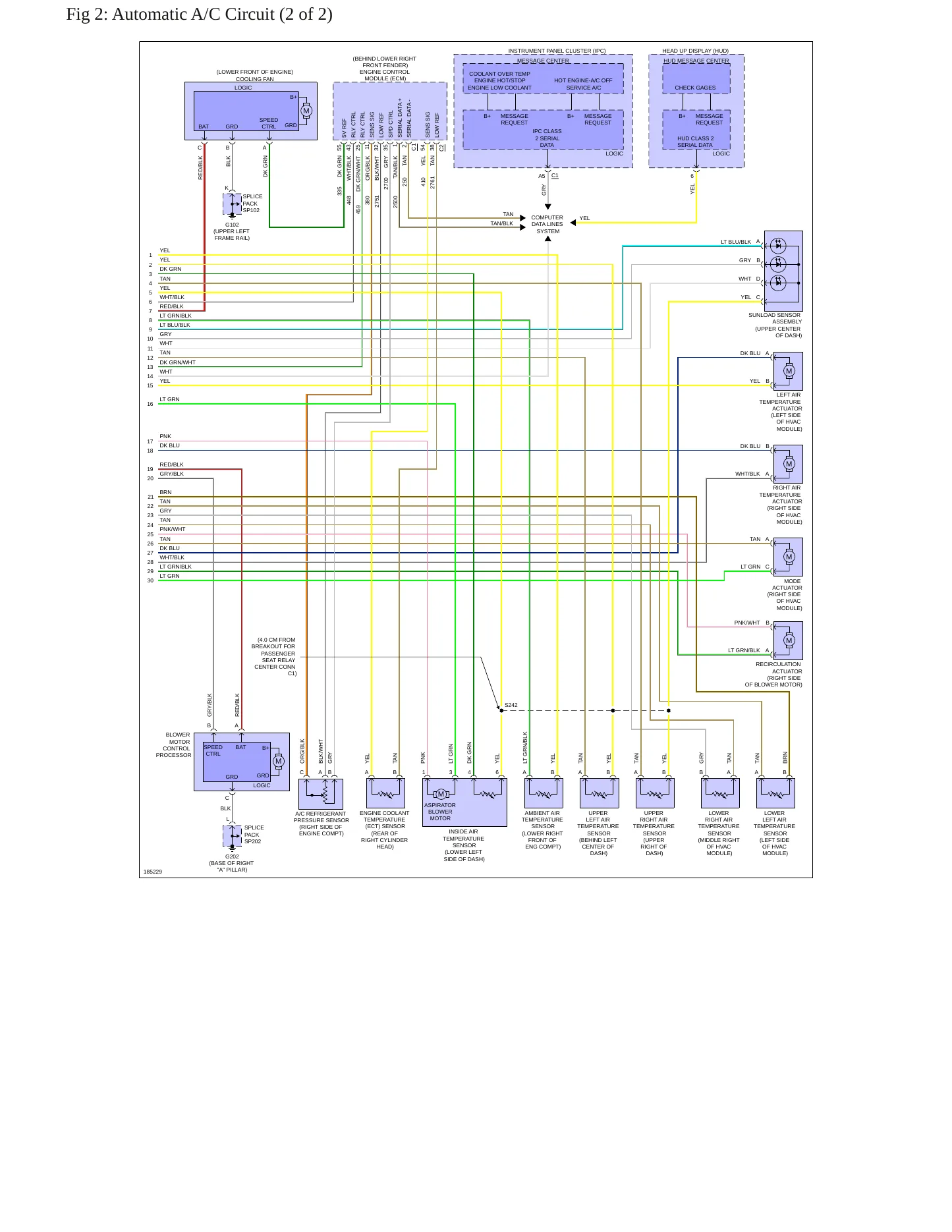

- Wiring Diagrams
TI AUTOMOTIVE IS RECALLING CERTAIN FUEL PUMPS, PART NUMBERS TU456 AND TU303, SOLD UNDER VARIOUS BRAND NAMES AS AFTERMARKET AND REPLACEMENT EQUIPMENT FOR THE MOTOR VEHICLES LISTED ABOVE. THE DEFECTIVE
Consequence
A VEHICLE CRASH COULD OCCUR SHOULD THE ENGINE STALL WHILE IN USE.
Remedy
TI AUTOMOTIVE WILL NOTIFY OWNERS OF RECORD AND WILL REPLACE ANY DEFECTIVE FUEL PUMP WITH A NEW OR RE
ON CERTAIN PASSENGER VEHICLES INVOLVED IN THIS CAMPAIGN, THE LOWER CONTROL ARM BALL STUD NUT/WASHER ASSEMBLIES WITH WASHERS WERE MADE OF THE WRONG MATERIAL. THE WASHERS MAY FRACTURE AND BECOME LOOSE
Consequence
IF THE CONTROL ARM SEPARATES FROM THE KNUCKLE, THE AFFECTED CORNER OF THE VEHICLE WILL DROP AND THE
Remedy
DEALERS WILL INSPECT THE BALL STUD JOINTS AND MEASURE THE TORQUE OF THE NUT FOR ALL FRONT LOWER CONT
CERTAIN PASSENGER VEHICLES FAIL TO COMPLY WITH THE REQUIREMENTS OF FEDERAL MOTOR VEHICLE SAFETY STANDARD NO. 124, 'ACCELERATOR CONTROL SYSTEMS.' IF ONE OF THE TWO ACCELERATOR PEDAL RETURN SPRINGS FAI
Consequence
IF THIS WERE TO OCCUR, GREATER BRAKE PEDAL FORCE AND A LONGER DISTANCE MAY BE REQUIRED TO STOP THE V
Remedy
DEALERS WILL REPLACE THE ACCELERATOR PEDAL ASSEMBLY. THIS RECALL BEGAN ON MARCH 8, 2005. OWNERS MA
CERTAIN PASSENGER VEHICLES WERE PRODUCED WITH ONE OR BOTH REAR BRAKE HYDRAULIC LINES THAT CAN COME IN CONTACT WITH OR BE AFFECTED BY HEAT FROM THE LEFT ENGINE EXHAUST MANIFOLD AND THE LEFT EXHAUST PIP
Consequence
IF THE BRAKE FLUID BOILS IN A REAR BRAKE LINE, THE EFFECTIVENESS OF THE REAR BRAKE SYSTEM WOULD BE R
Remedy
DEALERS WILL (1) INSPECT THE LEFT ENGINE EXHAUST MANIFOLD CLIP FOR PROPER ALIGNMENT AND PLACEMENT ON
This PI communicates the requirement to provide a pico file to receive diagnostic assistance from TAC.
This service bulletin provides information for dealers/technicians on OnStar Module 2G Sunset Information.
This Preliminary Information communication provides information to the technician about vehicles that have an unusual noise and is difficult to identify, isolate or pinpoint. Technician should get record a sound clip or take a video of the
This Preliminary Information communicates to the dealer the process for downloading or updating operating software for the Tire Pressure Monitor, Active Fuel Injector tester, multi media tester, PICO Scope, GR8 starting/charging tester and
This Preliminary Information communication provides information to the technician about vehicles that the Heater-Vent-Air Conditioning blows warm air. Before calling General Motors Technical Assistance Center technician will need to have hi
This Preliminary Information communication provides information to the technician about vehicles that the Heater-Vent-Air Conditioning blows warm air. Before calling General Motors Technical Assistance Center technician will need to have hi
This Preliminary Information communication provides information to the technician about changing the tire and wheel size on vehicles. General Motors will only support a tire calibration for tires that have been sized, tested and designed fo
Vehicle Wide Programming (VWP) is a new process to update software on GM Vehicles. It provides the ability via a single selection within Techline Connect to first identify which modules need updating and then proceed to updating affected mo
Showing the 8 most recent of 314 technical service bulletins on file with NHTSA.
