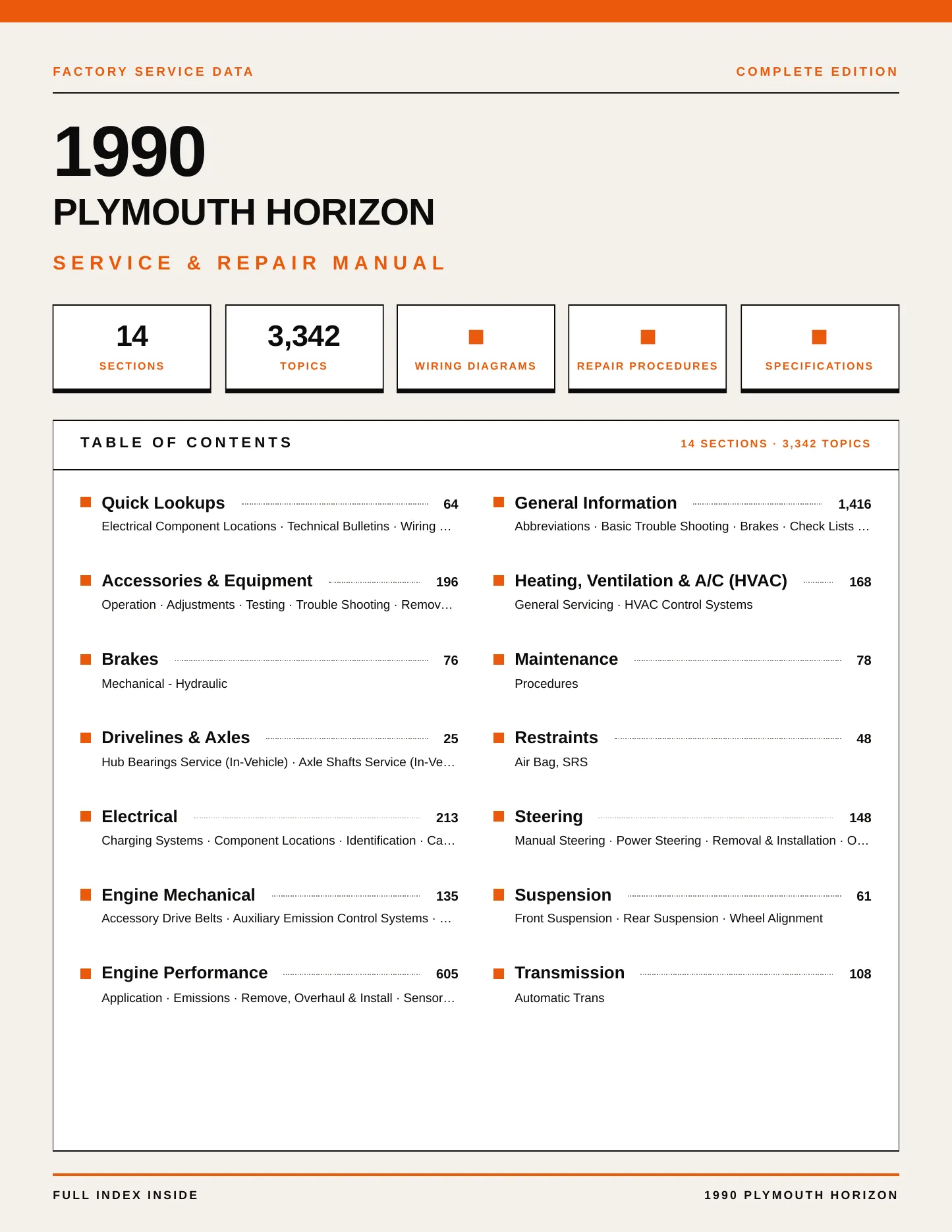

1990 Plymouth Horizon Service and Repair Manual

Regular price $49.99 USD
4.5 1067 reviews
  • Digital manual
  • Matched to your model
  • Pay once, yours to keepPay once
  • 180-day refund
Buy 2+ manuals, save 20%Applied automatically at checkout

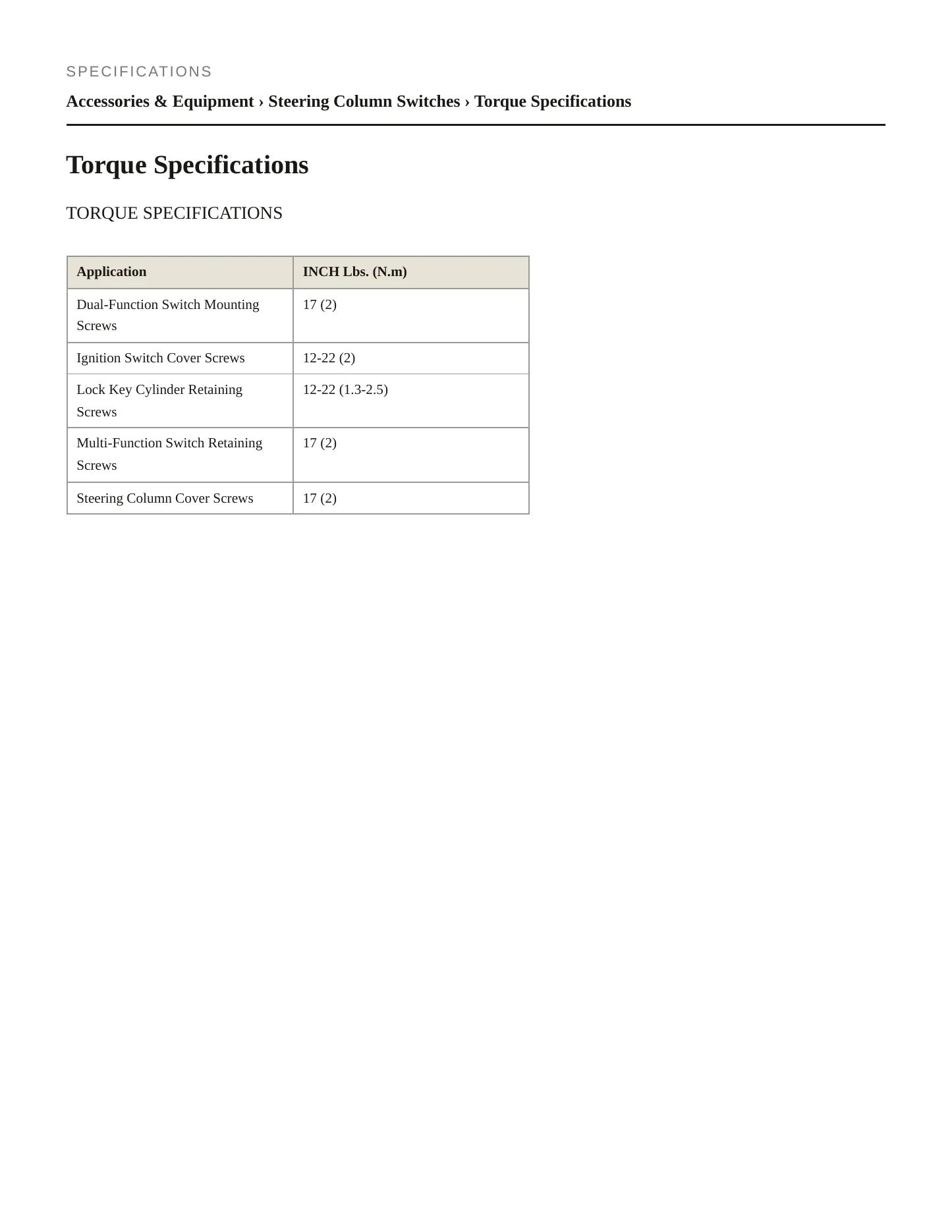

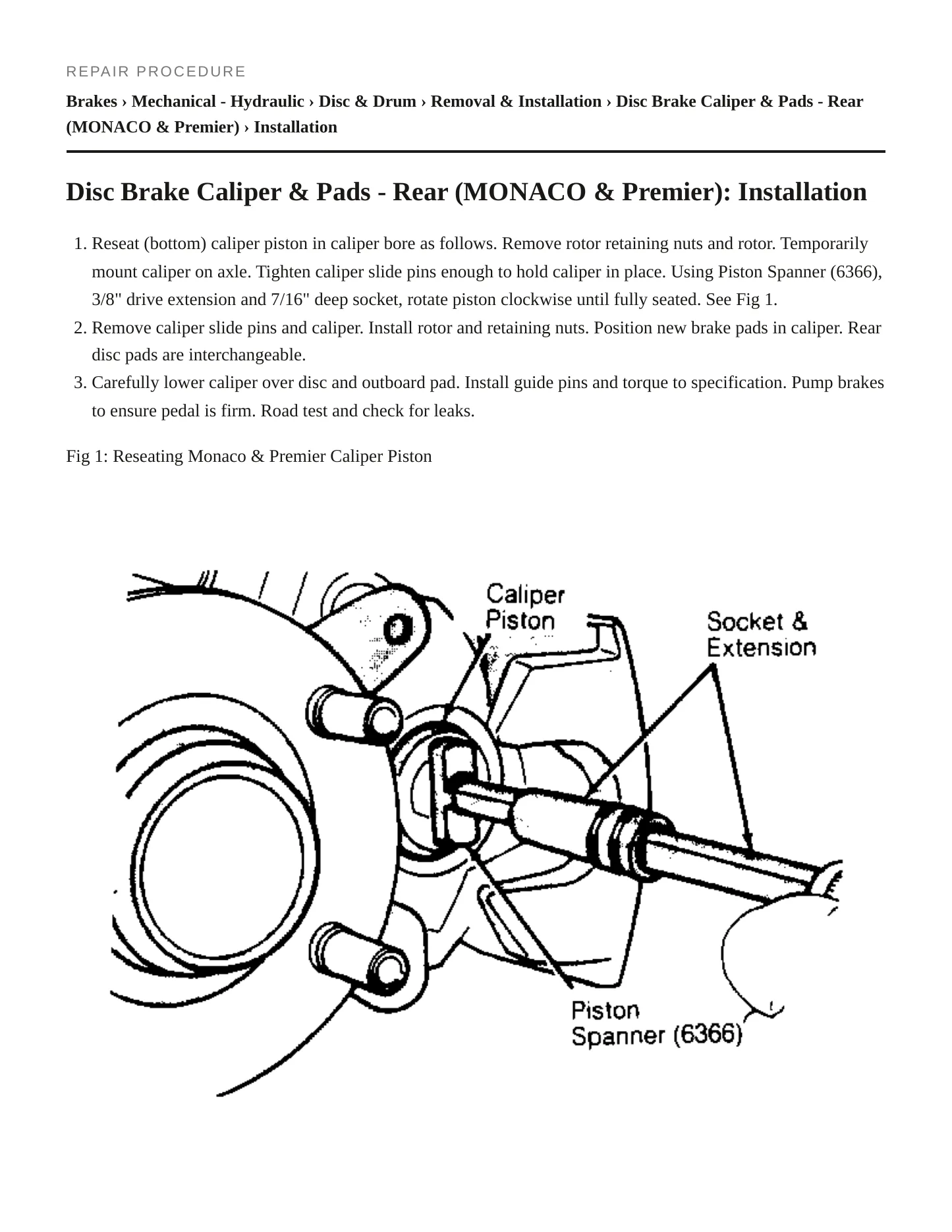

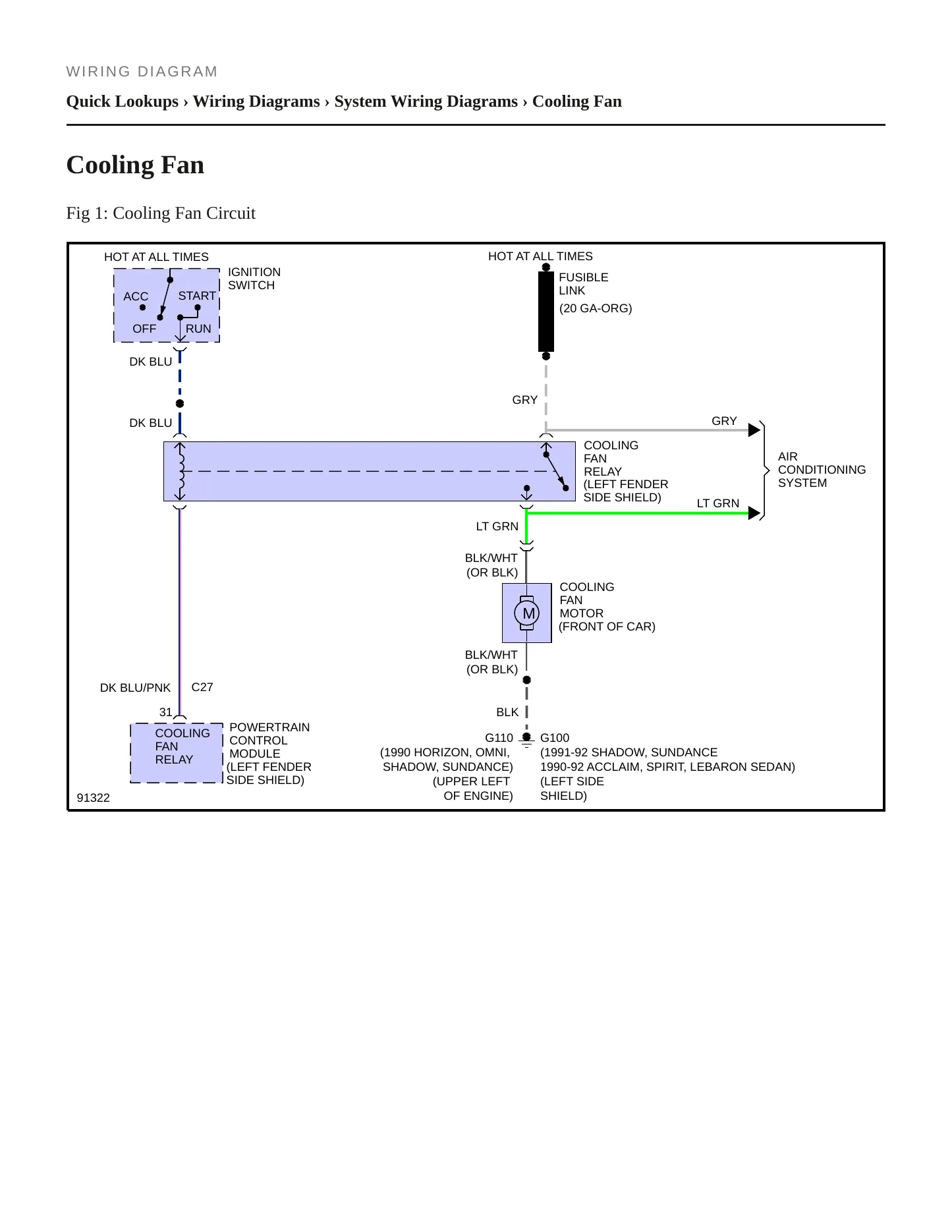

This factory service and repair manual for the 1990 Plymouth Horizon documents the Base trim of the four-door hatchback. Its engine is a gasoline 2.2L inline-four with one overhead camshaft and natural aspiration, 135 cubic inches in displacement. The manual sets out procedures for that four-cylinder and the fuel, ignition and cooling systems around it, then provides specifications, torque values and wiring diagrams for the transmission, brakes, suspension, steering and body.

Engines covered

  • 2.2L inline-four (135 cu in) — SOHC, naturally aspirated, gasoline

Body styles covered

  • 4-door hatchback

Trims covered

  • Base

Known issues on the 1990 Horizon. For the 1990 Horizon the record shows 1 recall, and it concerns oil seepage: on certain 1990 Horizon vehicles the valve cover gasket could work loose, allowing oil to leak into the engine compartment and raising a fire risk. Dealers installed a revised cover sealed with RTV instead of the old gasket. The 3 complaints filed name the seat belts, the structure and the tires, 1 apiece. Engine, body and seat belt related systems are served by procedures, specifications and torque values here.
