1986 Plymouth Horizon Service and Repair Manual
- Digital manual
- Matched to your model
- Pay once, yours to keepPay once
- 180-day refund

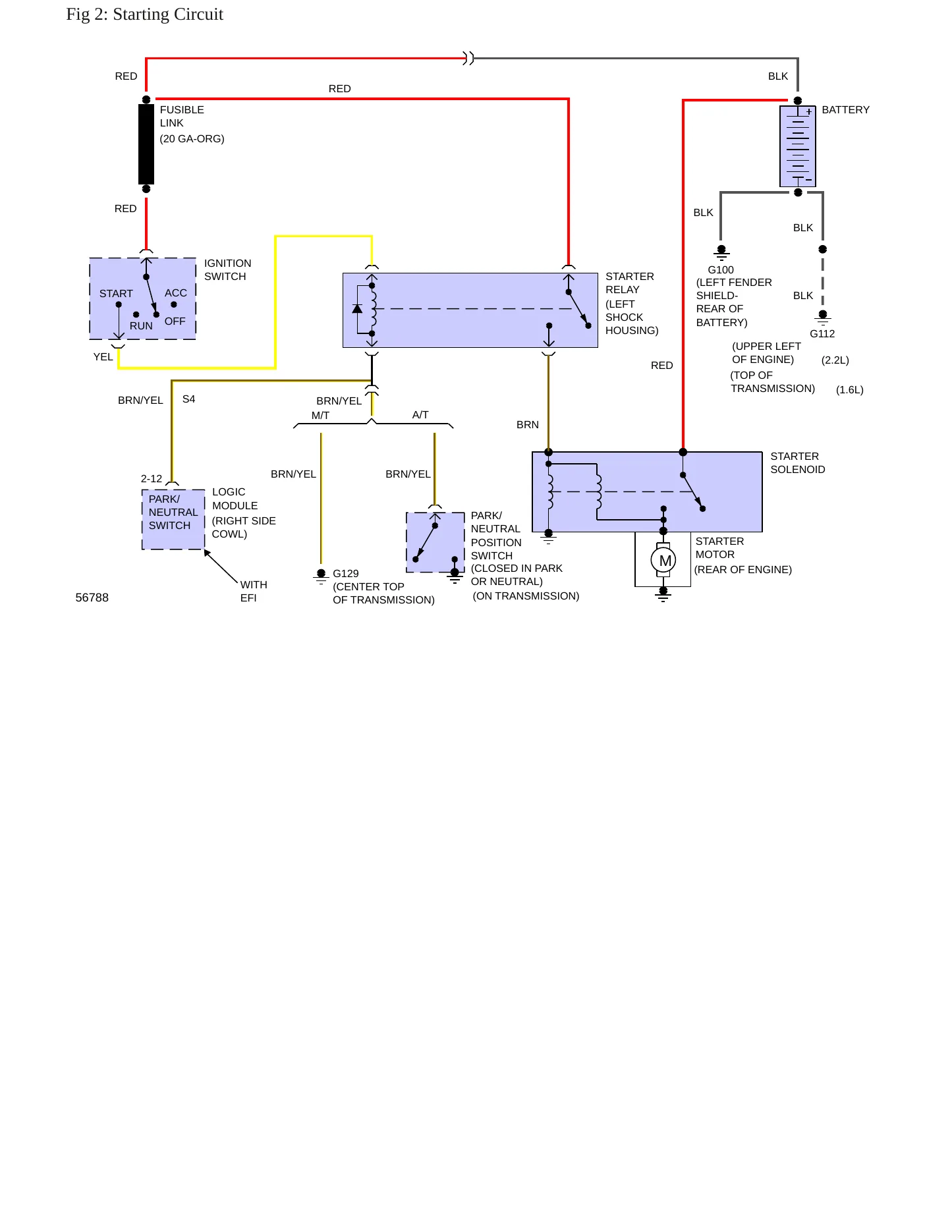

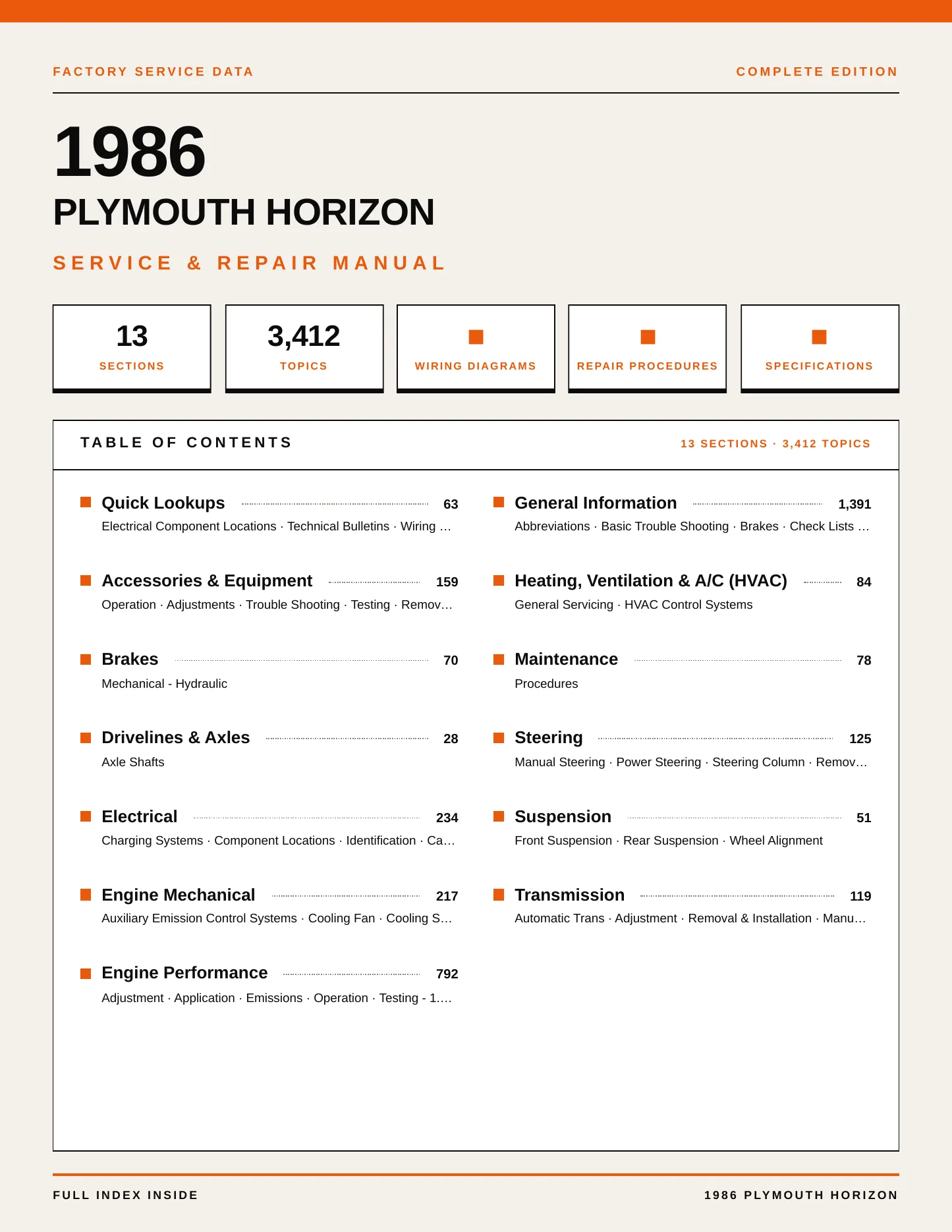

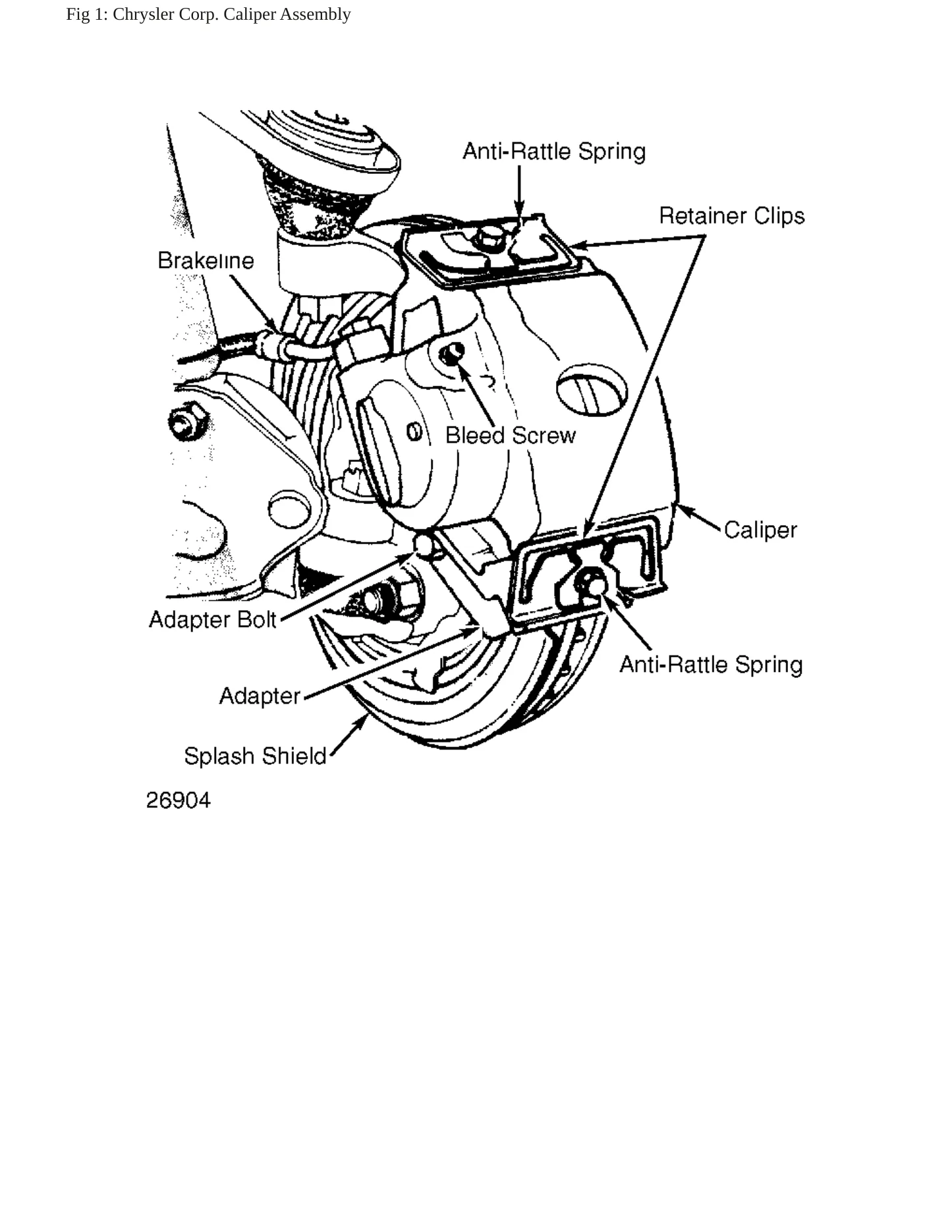

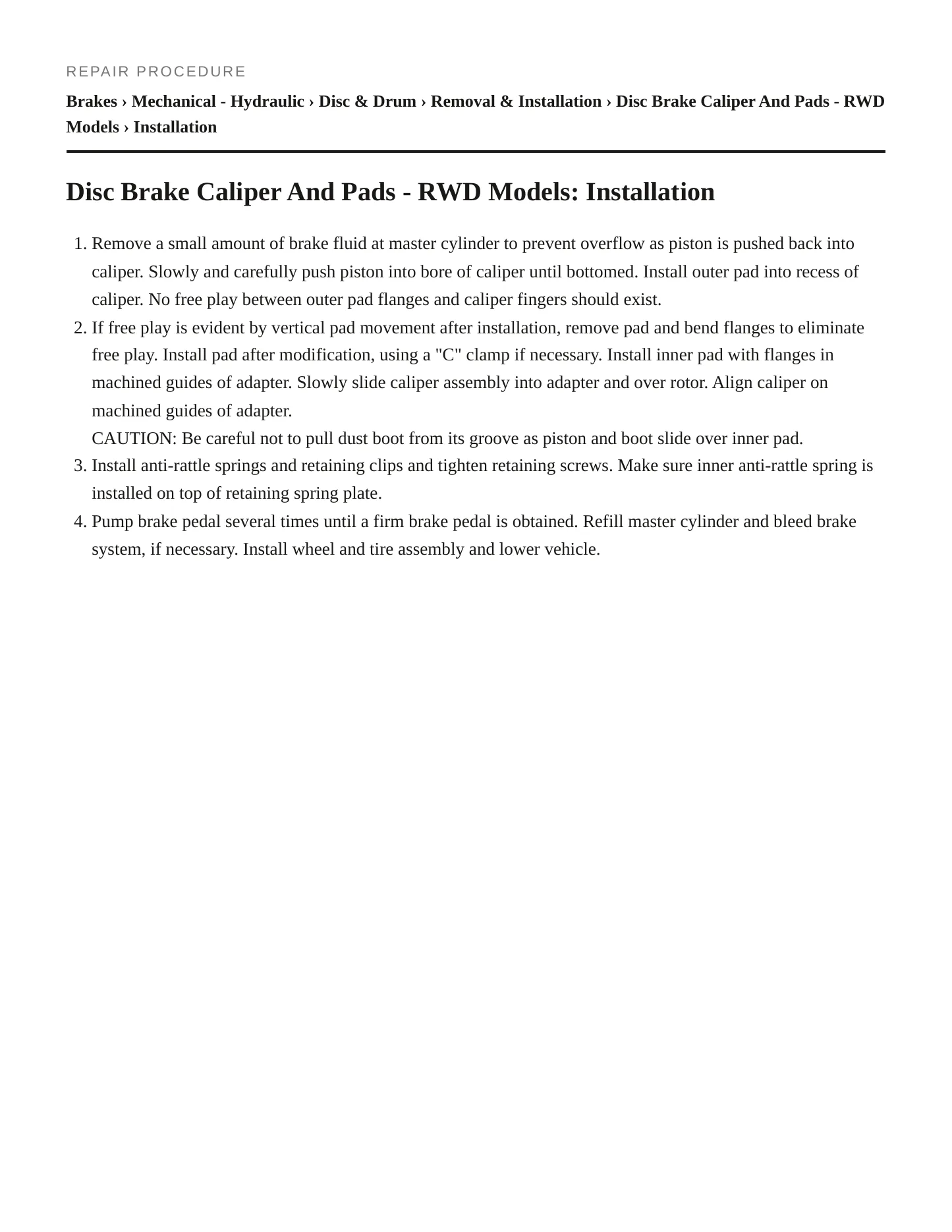

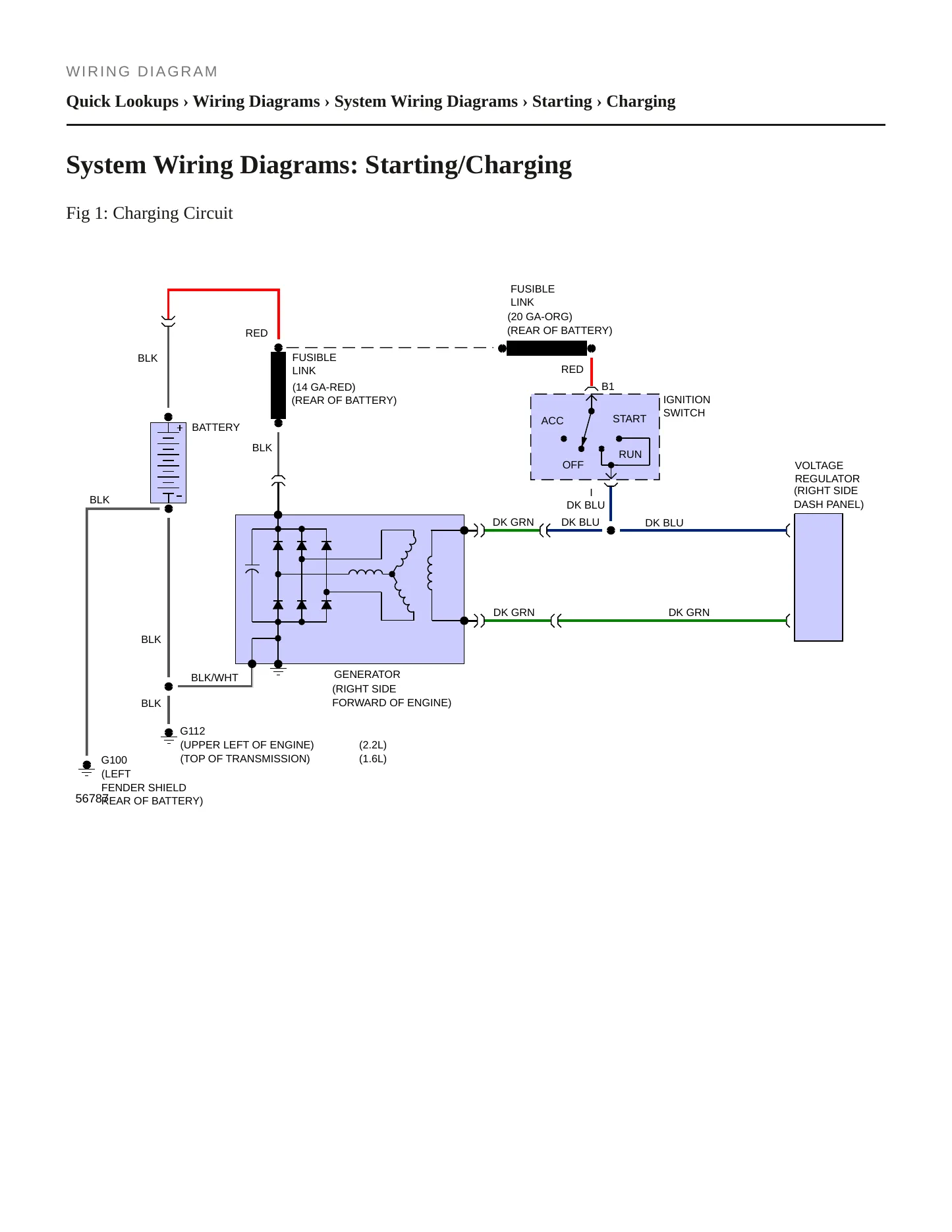

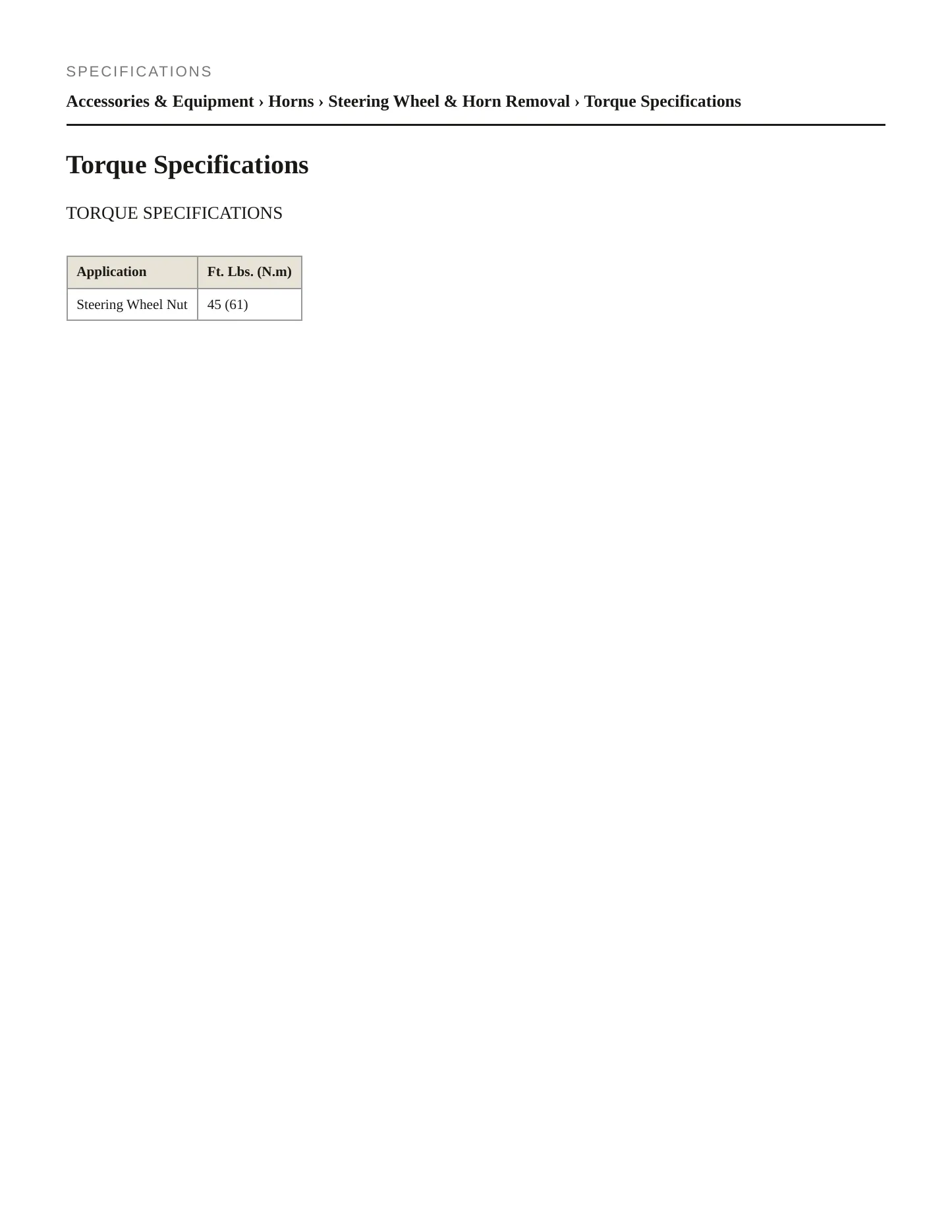

This factory service and repair manual for the 1986 Plymouth Horizon deals with a four-door hatchback offered as Base or SE. Its engine bay held one of two naturally aspirated, single-overhead-cam inline-fours running on gasoline: the 97-cubic-inch 1.6L or the larger 2.2L at 135 cubic inches. Specifications, torque values and wiring diagrams run across the engine, fuel, ignition and cooling systems, and on through the transmission, brakes, steering and suspension of the hatchback.
Engines covered
- 1.6L inline-four (97 cu in) — SOHC, naturally aspirated, gasoline
- 2.2L inline-four (135 cu in) — SOHC, naturally aspirated, gasoline
Body styles covered
- 4-door hatchback
Trims covered
- Base
- SE
Known issues on the 1986 Horizon. Two recalls are recorded for the 1986 Horizon. One recalled certain 1986 Horizon vehicles because the bolts pivoting the rear trailing arms on their hanger brackets could crack from stress corrosion, possibly traced to how they were made; a failed bolt could let the rear suspension partly separate and cost the driver control. Properly processed bolts went in. A second recall, limited to certain 1986 Horizon cars carrying batteries from one supplier, addressed vent caps that could be clogged with plastic flashing and let gas pressure build until the case burst, especially after charging. One owner complaint concerns the gasoline fuel system. Suspension, fuel and electrical system procedures, specifications and torque values are covered here.
