Stihl SR200 backpack sprayer Service & Repair Manual

The Stihl SR200 backpack sprayer service & repair manual is the complete 90-page factory workshop manual for this machine — with full step-by-step procedures, specifications, torque values, wiring and hydraulic diagrams and fault diagnosis.

What’s inside this manual:

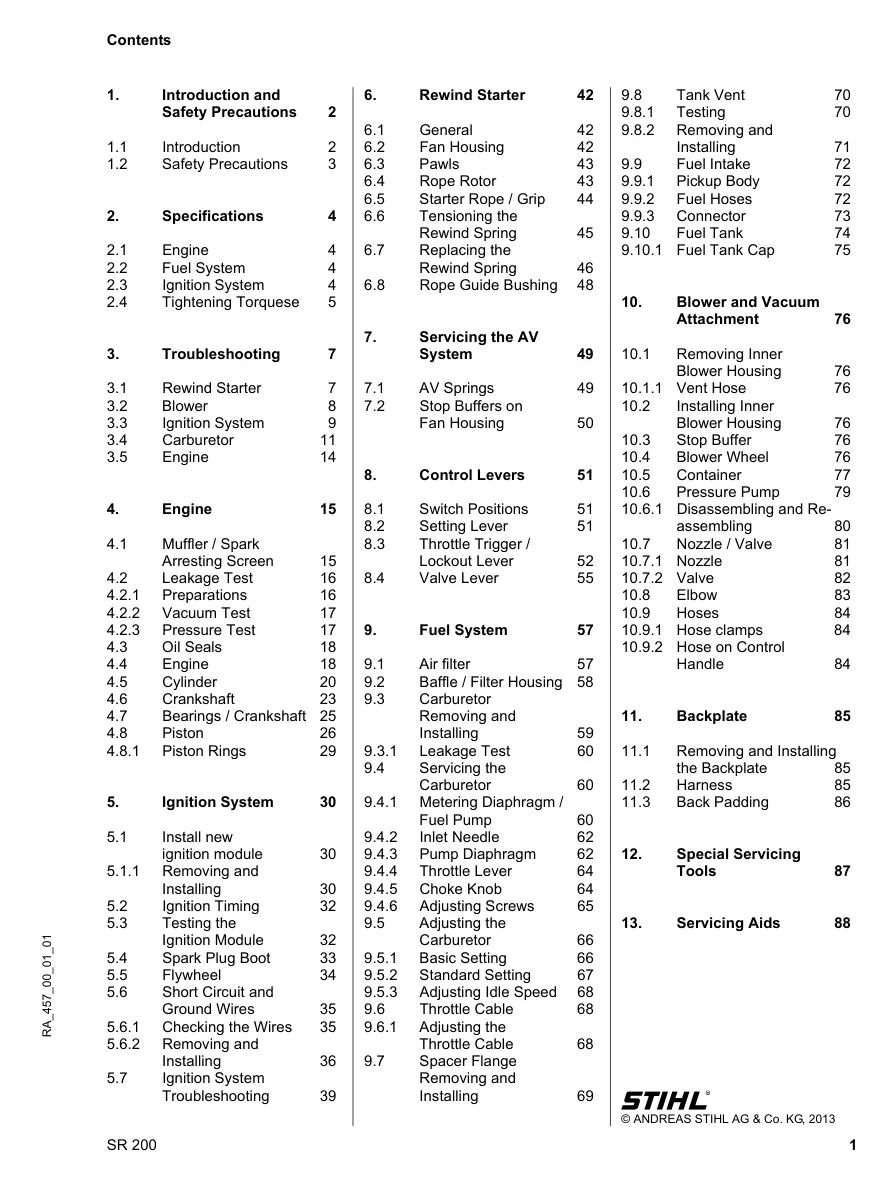

• Contents

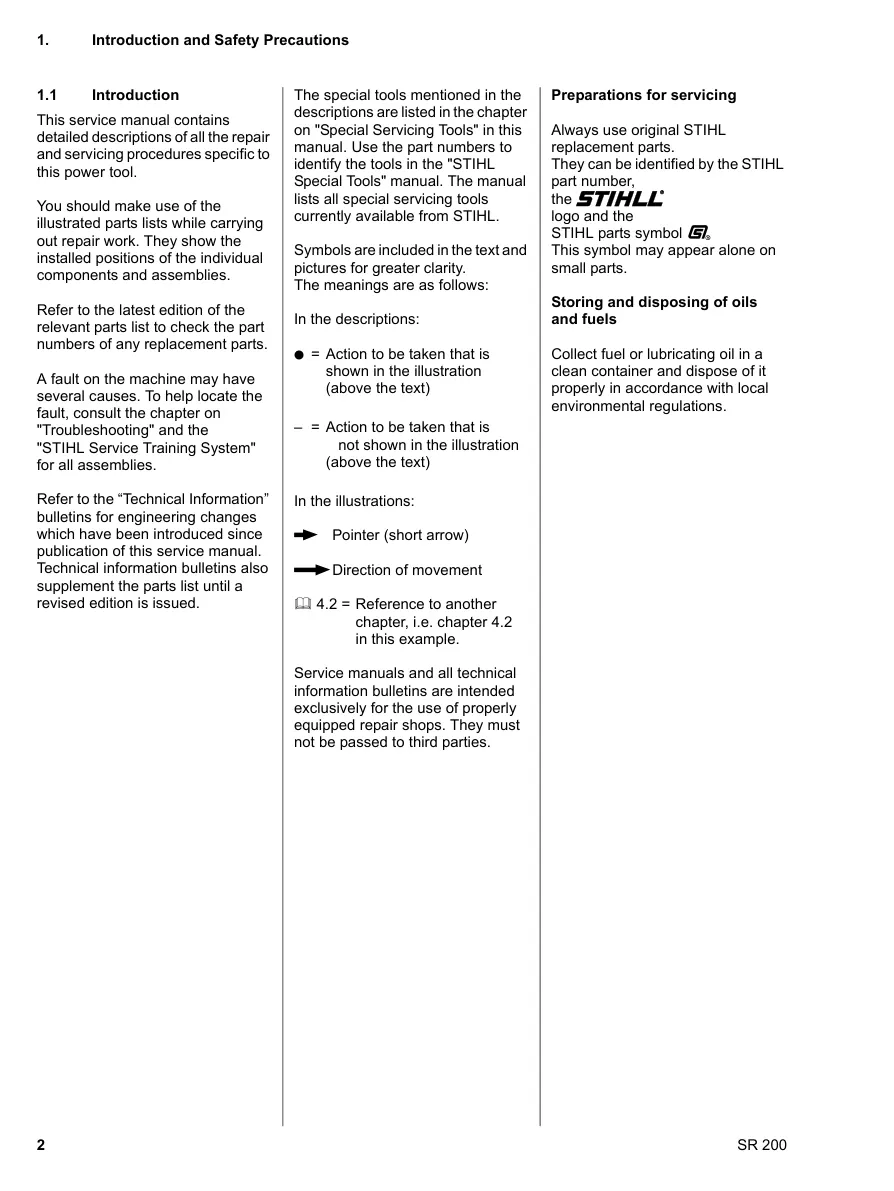

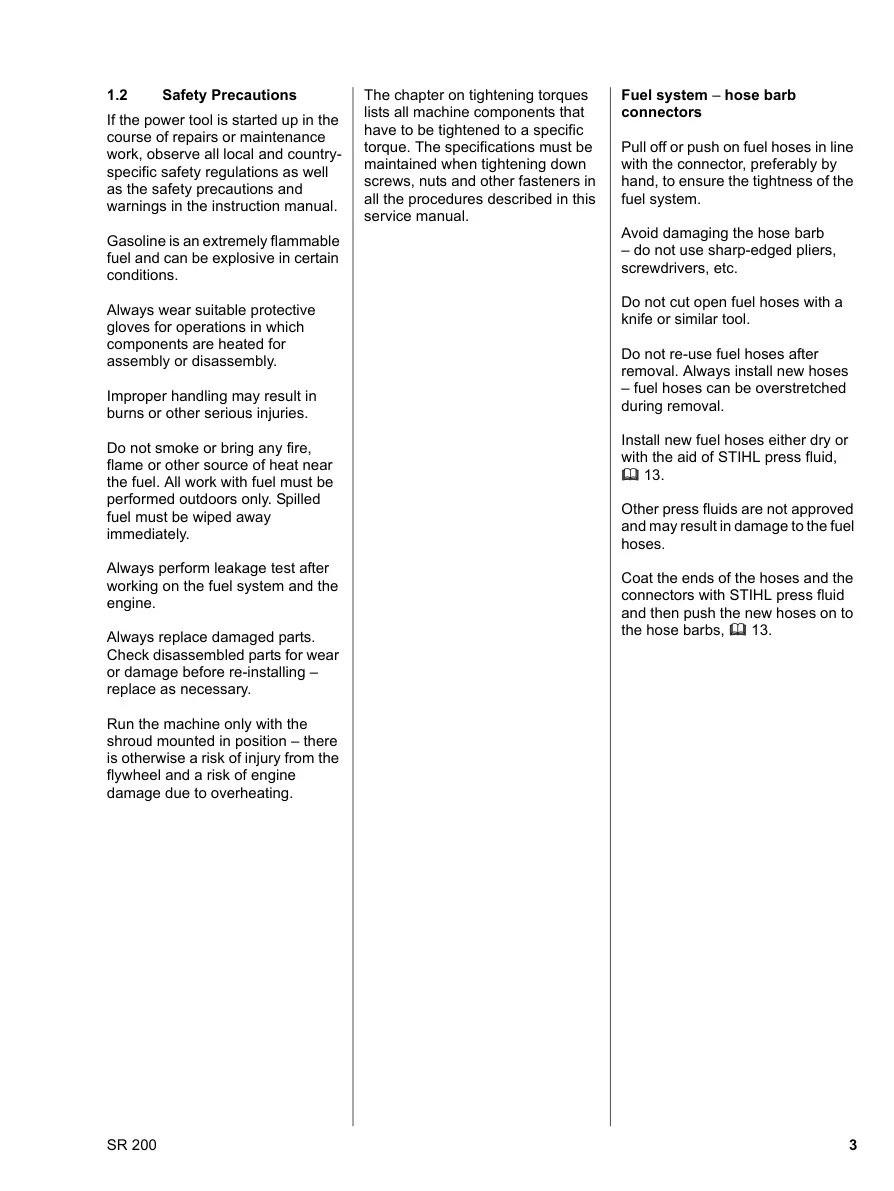

• 1. Introduction and Safety Precautions
• 1.1 Introduction
• 1.2 Safety Precautions

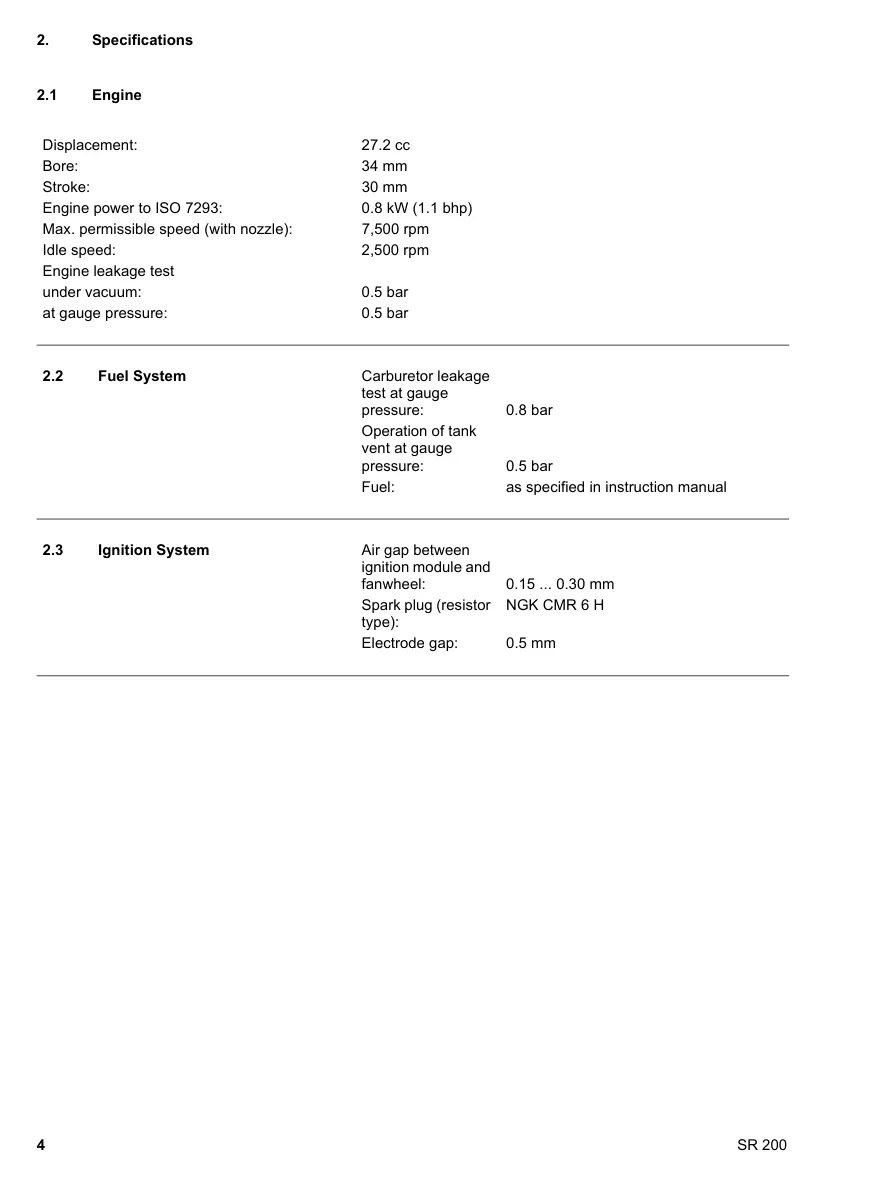

• 2. Specifications
• 2.1 Engine
• 2.2 Fuel System
• 2.3 Ignition System

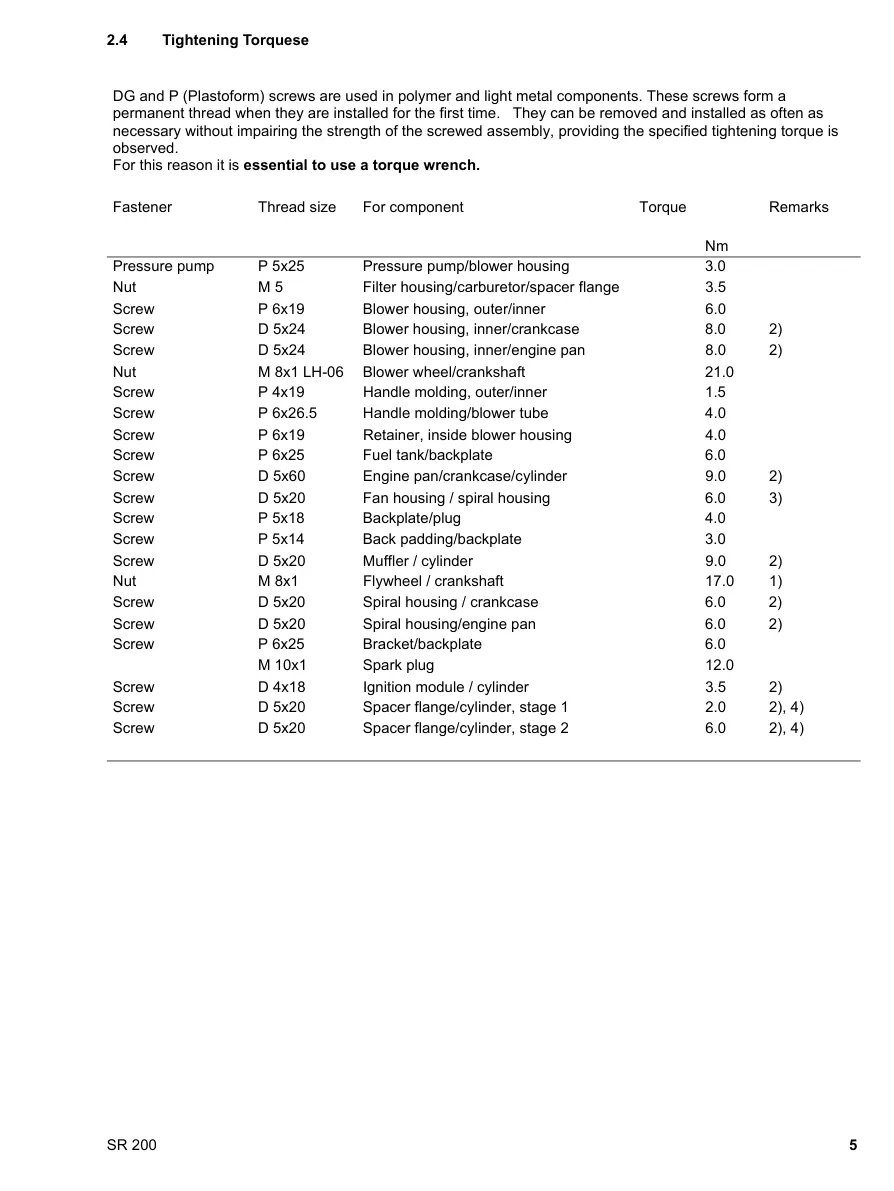

• 2.4 Tightening Torquese
• 3. Troubleshooting
• 3.1 Rewind Starter
• 3.2 Blower
• 3.3 Ignition System
• 3.4 Carburetor
• 3.5 Engine
• 4. Engine
• 4.1 Muffler / Spark Arresting Screen
• 4.2 Leakage Test
• 4.3 Oil Seals
• 4.4 Engine
• 4.5 Cylinder
• 4.6 Crankshaft
• 4.7 Bearings / Crankshaft
• 4.8 Piston
• 5. Ignition System
• 5.1 Install new ignition module
• 5.2 Ignition Timing
• 5.3 Testing the Ignition Module
• 5.4 Spark Plug Boot
• 5.5 Flywheel
• 5.6 Short Circuit and Ground Wires
• 5.7 Ignition System Troubleshooting
• 6. Rewind Starter
• 6.1 General
• 6.2 Fan Housing
• 6.3 Pawls
• 6.4 Rope Rotor
• 6.5 Starter Rope / Grip
• 6.6 Tensioning the Rewind Spring
• 6.7 Replacing the Rewind Spring
• 6.8 Rope Guide Bushing
• 7. Servicing the AV System
• 7.1 AV Springs
• 7.2 Stop Buffers on Fan Housing
• 8. Control Levers
• 8.1 Switch Positions
• 8.2 Setting Lever
• 8.3 Throttle Trigger / Lockout Lever
• 8.4 Valve Lever
• 9. Fuel System
• 9.1 Air filter
• 9.2 Baffle / Filter Housing
• 9.3 Carburetor Removing and Installing
• 9.4 Servicing the Carburetor
• 9.5 Adjusting the Carburetor

With OEM-level detail throughout, it is everything needed to service, diagnose and repair the machine.
