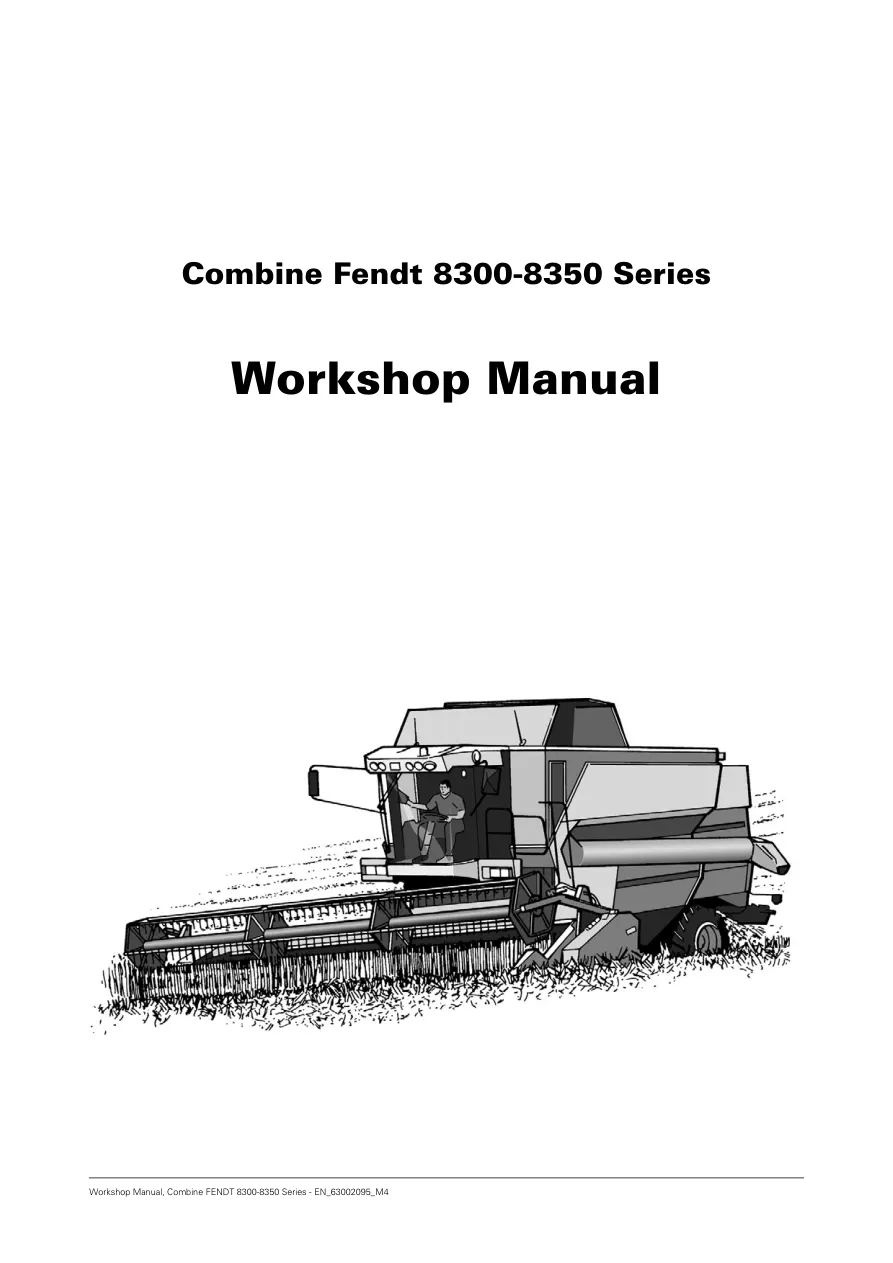

Fendt 8300 8350 Series Combine Service & Repair Manual

The Fendt 8300 8350 Series Combine service & repair manual is the complete 644-page factory workshop manual for this machine — with full step-by-step procedures, specifications, torque values, wiring and hydraulic diagrams and fault diagnosis.

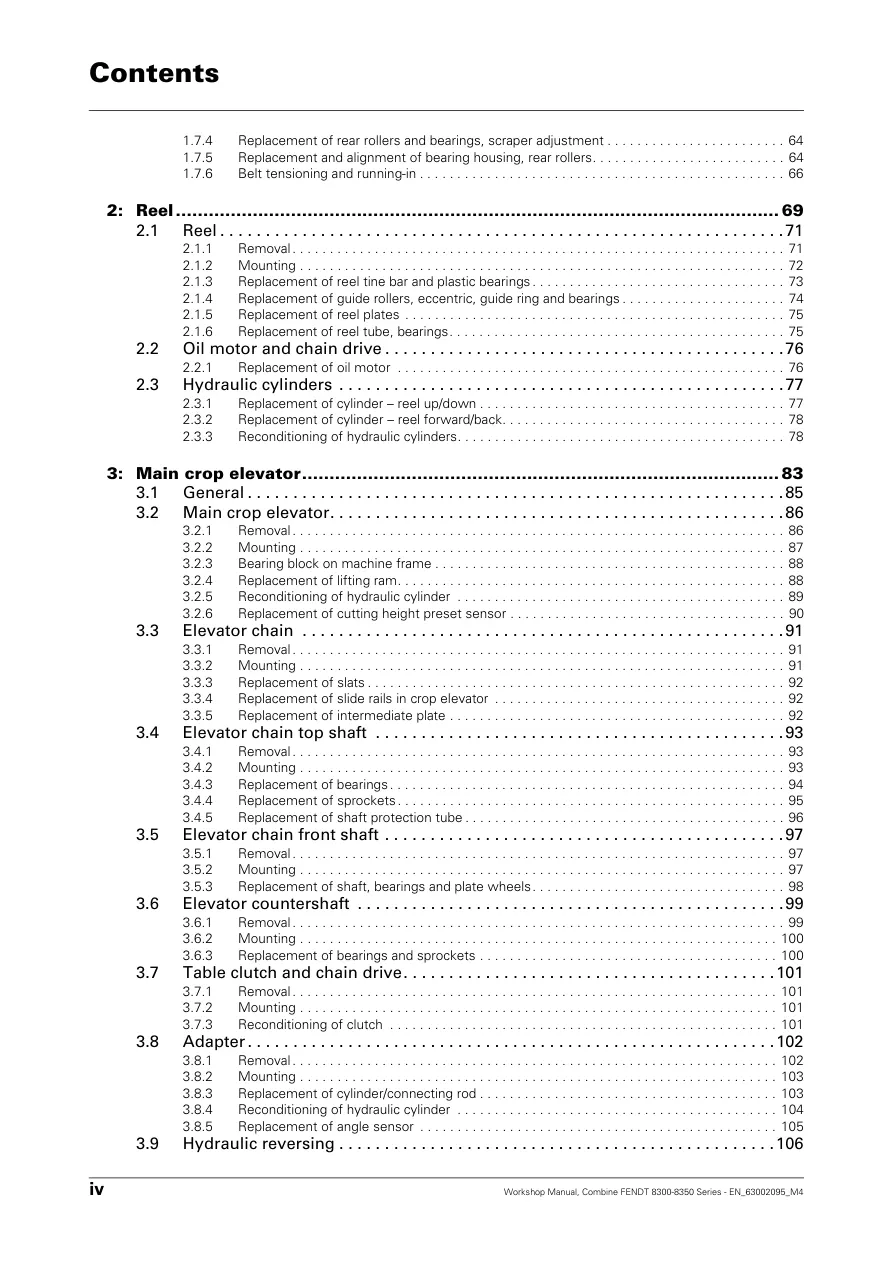

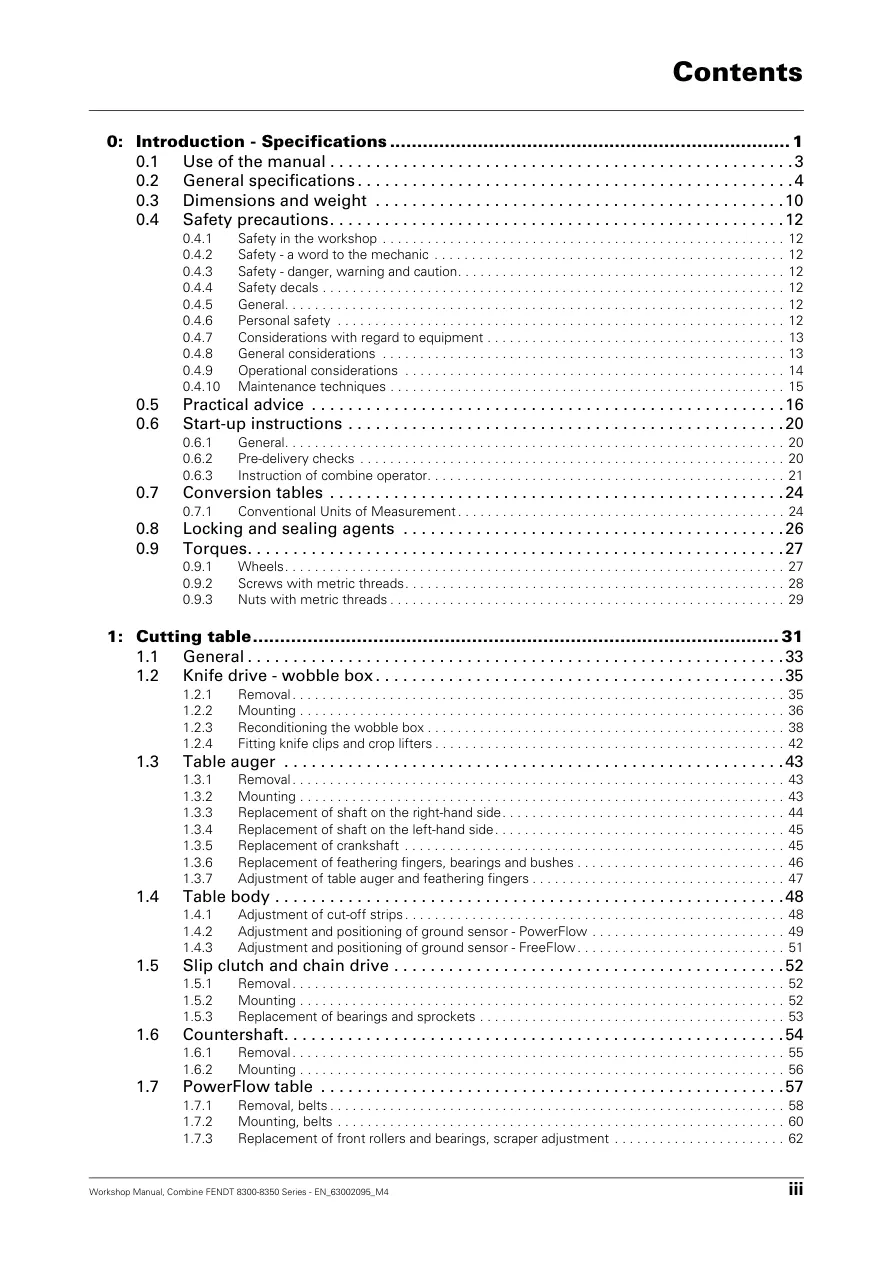

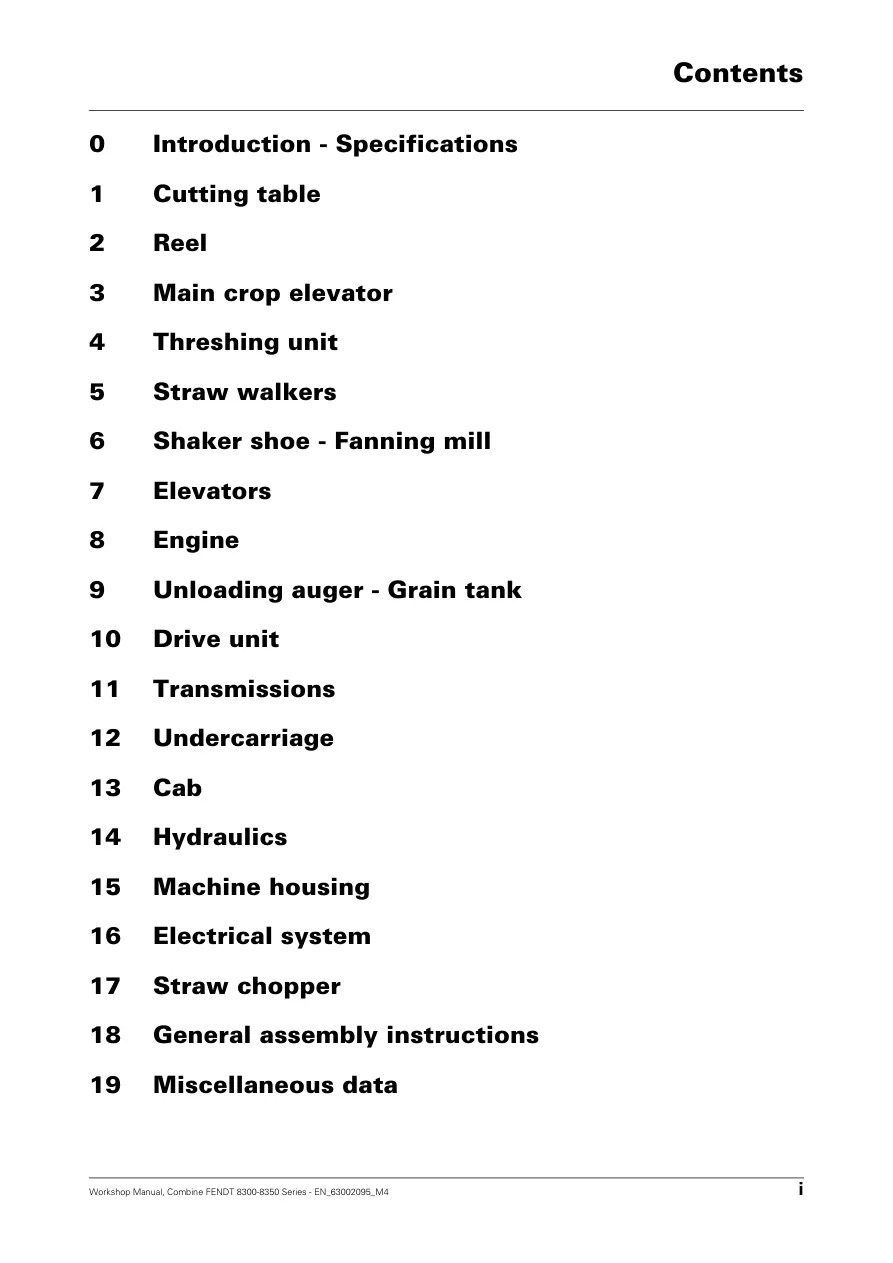

What’s inside this manual:

• 0. Introduction - Specifications
• 0.1 Use of the manual
• 0.2 General specifications
• 0.3 Dimensions and weight
• 0.4 Safety precautions
• 0.5 Practical advice
• 0.6 Start-up instructions
• 0.7 Conversion tables
• 0.8 Locking and sealing agents
• 0.9 Torques
• 1. Cutting table
• 1.1 General
• 1.2 Knife drive - wobble box
• 1.3 Table auger
• 1.4 Table body
• 1.5 Slip clutch and chain drive
• 1.6 Countershaft
• 1.7 PowerFlow table
• 2. Reel
• 2.1 Reel
• 2.2 Oil motor and chain drive
• 2.3 Hydraulic cylinders
• 3. Main crop elevator
• 3.1 General
• 3.2 Main crop elevator
• 3.3 Elevator chain
• 3.4 Elevator chain top shaft
• 3.5 Elevator chain front shaft
• 3.6 Elevator countershaft
• 3.7 Table clutch and chain drive
• 3.8 Adapter
• 3.9 Hydraulic reversing
• 3.10 Electrical Reversing
• 4. Threshing unit
• 4.1 General
• 4.2 Stone trap
• 4.3 Concave
• 4.4 Threshing cylinder
• 4.5 Cylinder variator - table clutch
• 4.6 Bracket for counter drive
• 4.7 Rear beater
• 4.8 Rear beater concave
• 4.9 Rotary separator cylinder
• 4.10 Rotary separator concave
• 5. Straw walkers
• 5.1 General
• 5.2 Straw walkers
• 5.3 Crank - front
• 5.4 Crank - rear
• 5.5 Straw walker transmission - chain
• 6. Shaker shoe - Fanning mill
• 6.1 General
• 6.2 Fanning mill
• 6.3 Main grain pan
• 6.4 Second grain pan

From routine maintenance to a full rebuild, every procedure, specification and diagram is included.
