Claas Quantum 4500 5500 6800 Self-Loading Forage Wagon Operation Machine Service & Repair Manual

The Claas Quantum 4500 5500 6800 Self-Loading Forage Wagon Operation Machine service & repair manual is the complete 152-page factory workshop manual for this machine — with full step-by-step procedures, specifications, torque values, wiring and hydraulic diagrams and fault diagnosis.

What’s inside this manual:

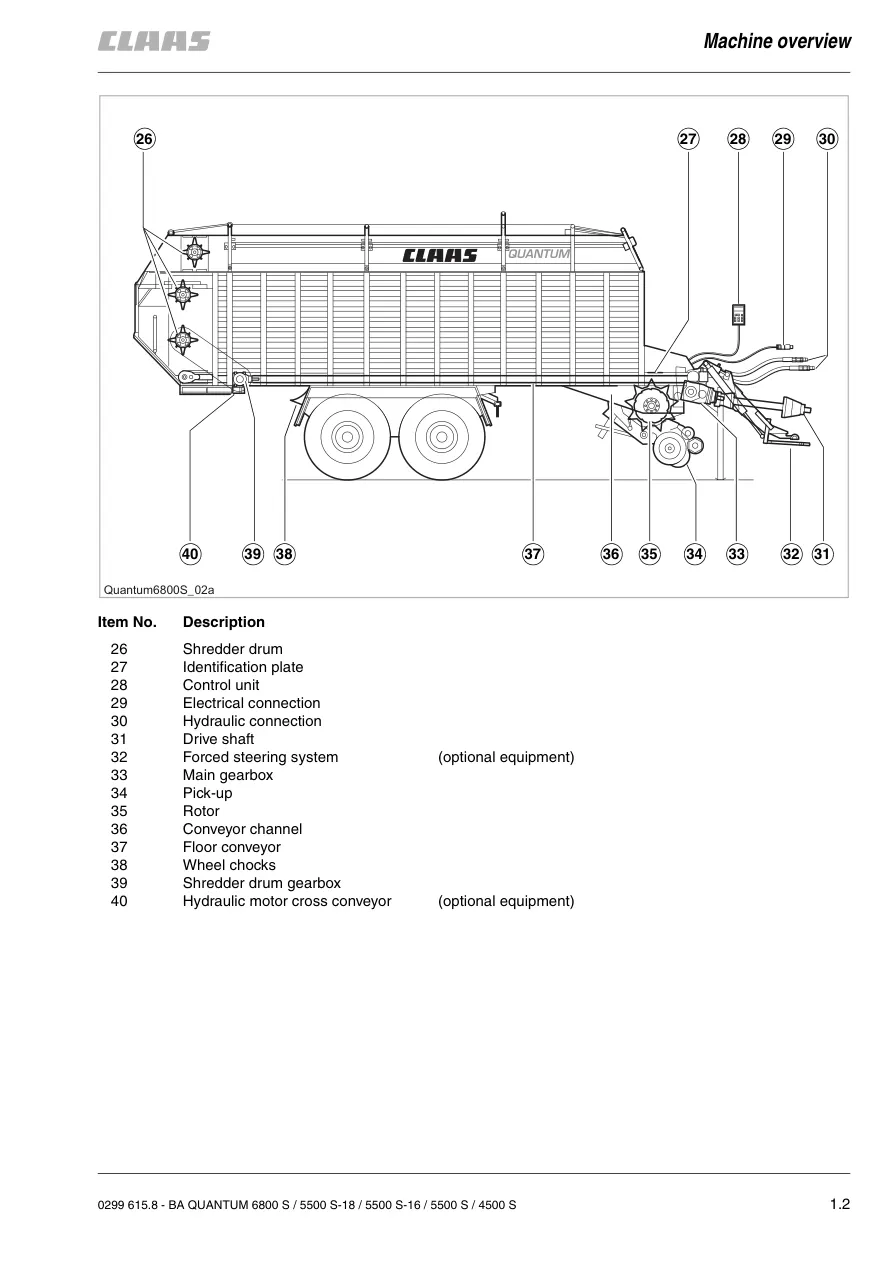

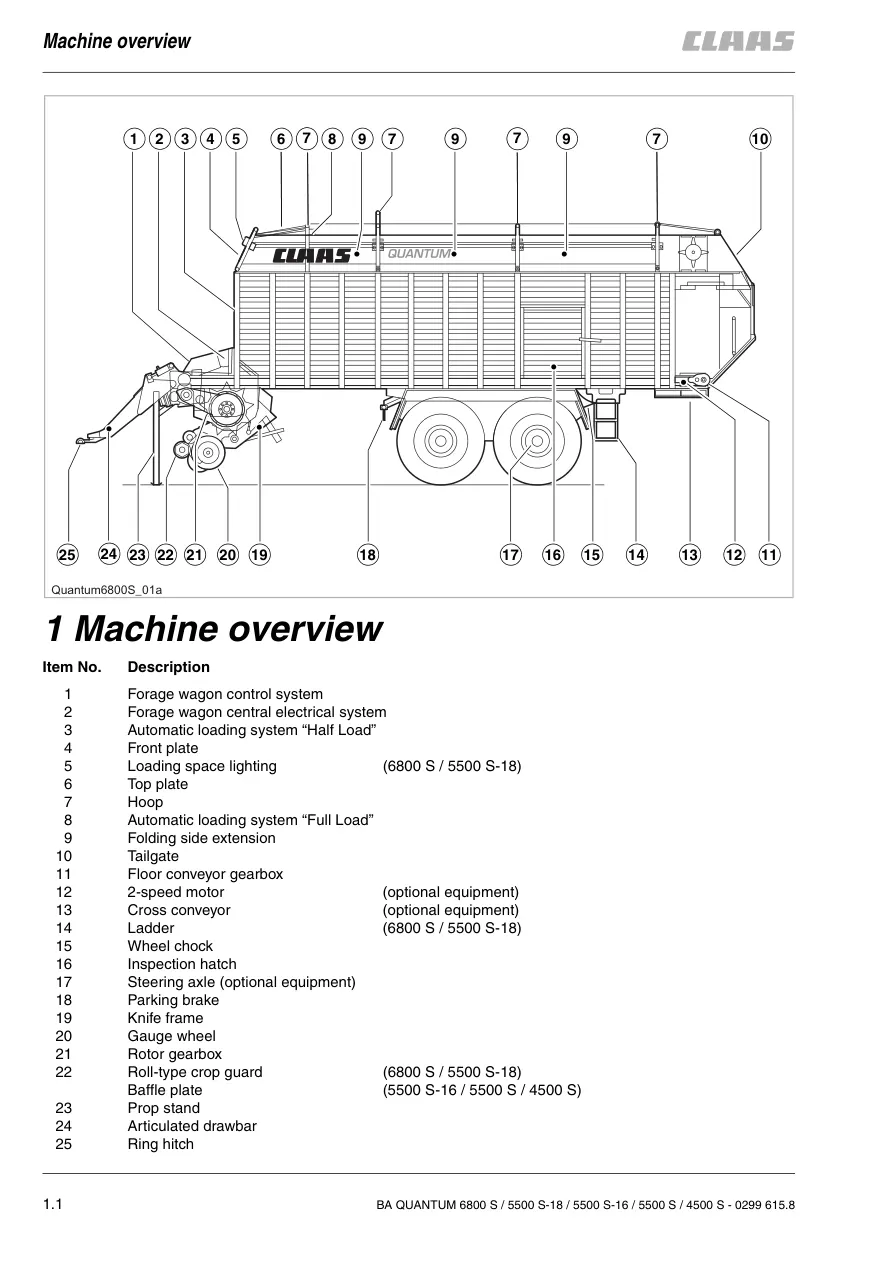

• 1 Machine overview
• 2 Introduction

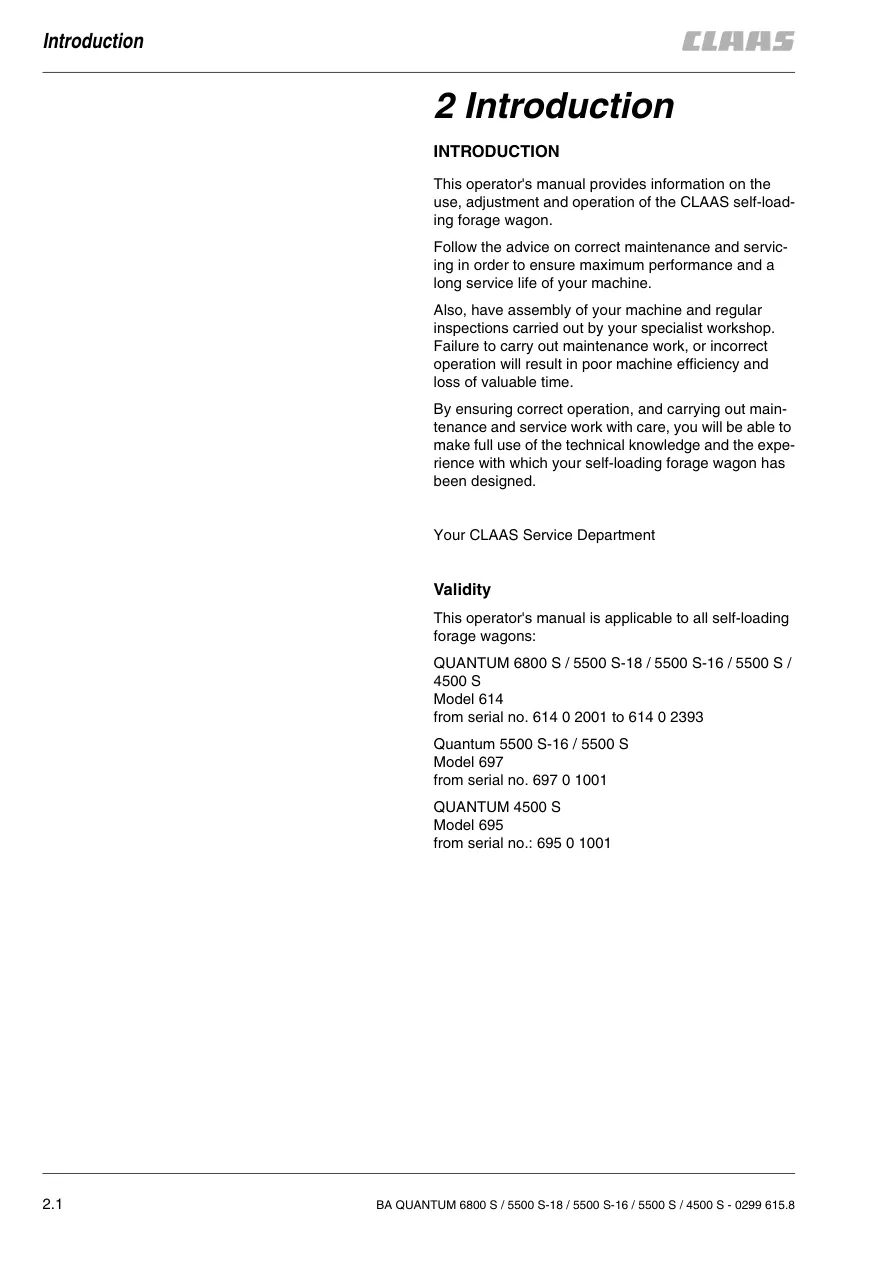

• Introduction
• 3 Contents
• 4 Preface
• Of special importance
• Identification plate
• Road transport
• 5 Safety Rules
• Designated use
• Identification of warning and danger signs
• General Safety and Accident Prevention Instructions
• PTO Operation
• Brakes
• Hydraulic system
• Wheels and tyres, threaded fastenings
• Maintenance
• Sound pressure level
• Safety decals with pictorials
• 6 Specifications
• QUANTUM 6800 S
• QUANTUM 5500 S-18
• QUANTUM 5500 S-16
• QUANTUM 5500 S
• QUANTUM 4500 S
• 7 Assembly
• Assembly
• Coupling machine for the first time
• 8 Prior to operation
• Check and observe the following points prior to operation
• Coupling to the tractor
• Unhitching
• Prior to transportation
• 9 Operation
• Brief introduction
• Loading operation
• Unloading operation
• Operation of self-loading forage wagon
• Emergency operation
• Optional equipment
• 10 Maintenance
• Important Maintenance Instructions
• Diagnostic System
• Brakes and axles
• Forced steering system
• Cutting mechanism
• Adjusting the scraper unit
• Drive systems
• Chains
• Clutch
• Air bounce
• Electrical system
• Tailgate
• Gas shock absorber
• Drive shaft

Built for real workshop use — the complete reference for keeping this machine running season after season.
