Claas Lexion 480 Combine Service & Repair Manual

The Claas Lexion 480 Combine service & repair manual is the complete 985-page factory workshop manual for this machine — with full step-by-step procedures, specifications, torque values, wiring and hydraulic diagrams and fault diagnosis.

What’s inside this manual:

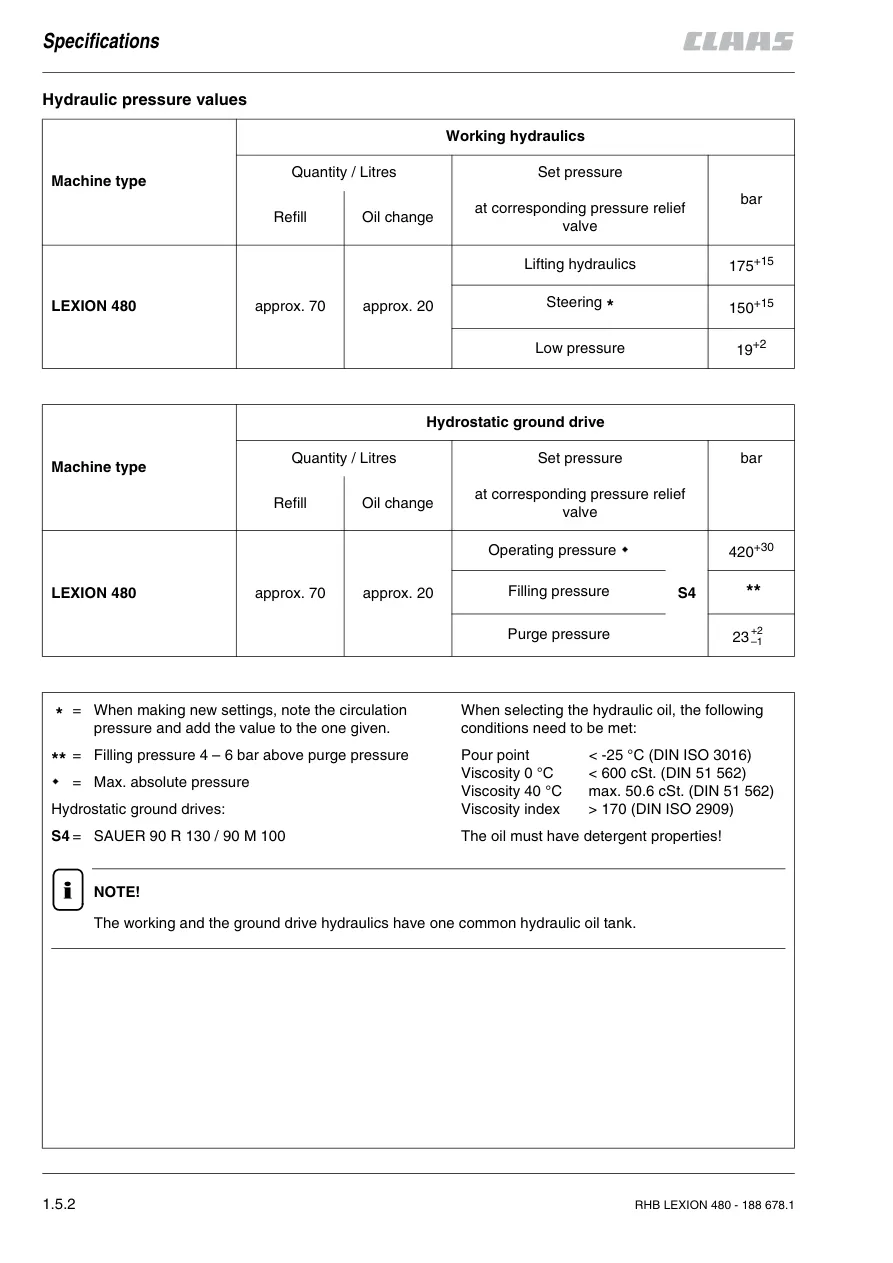

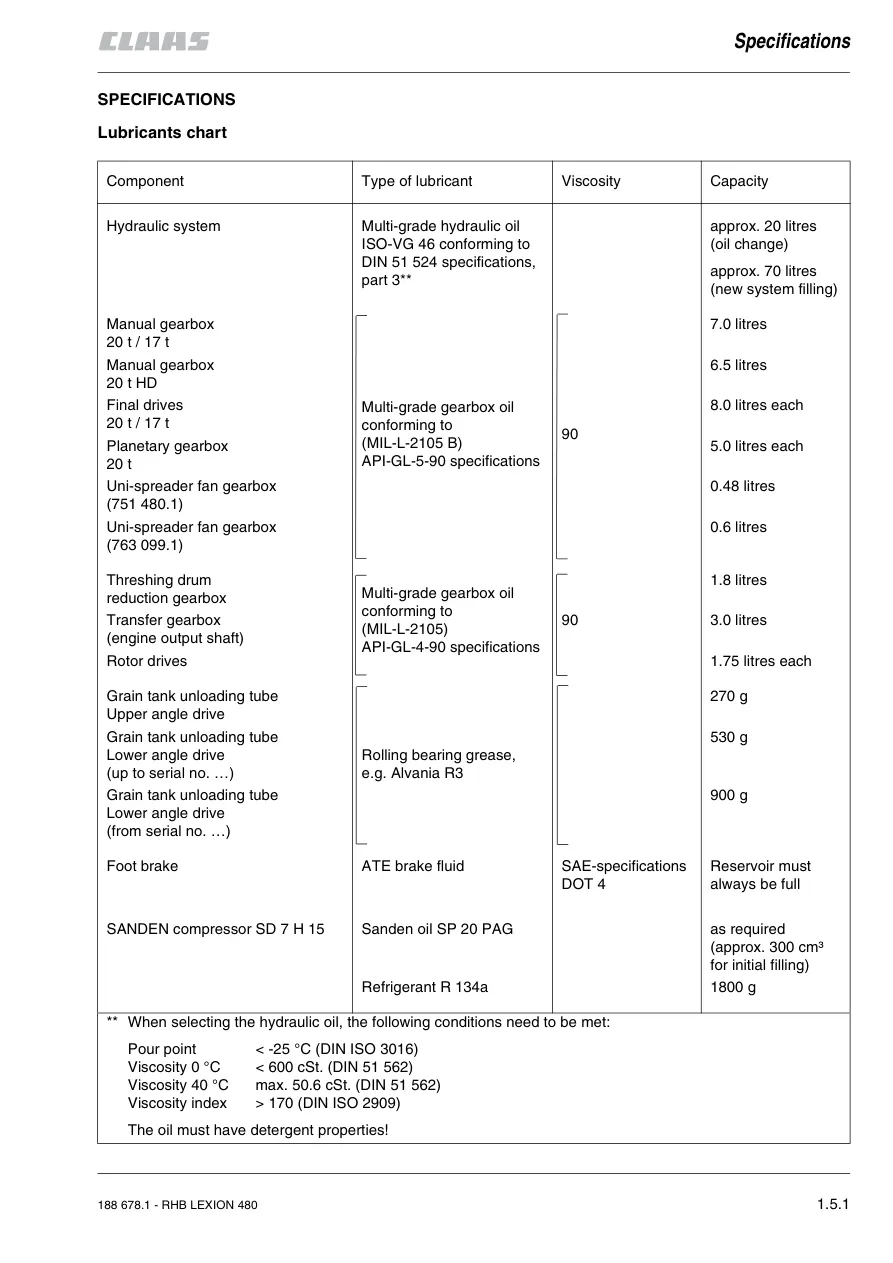

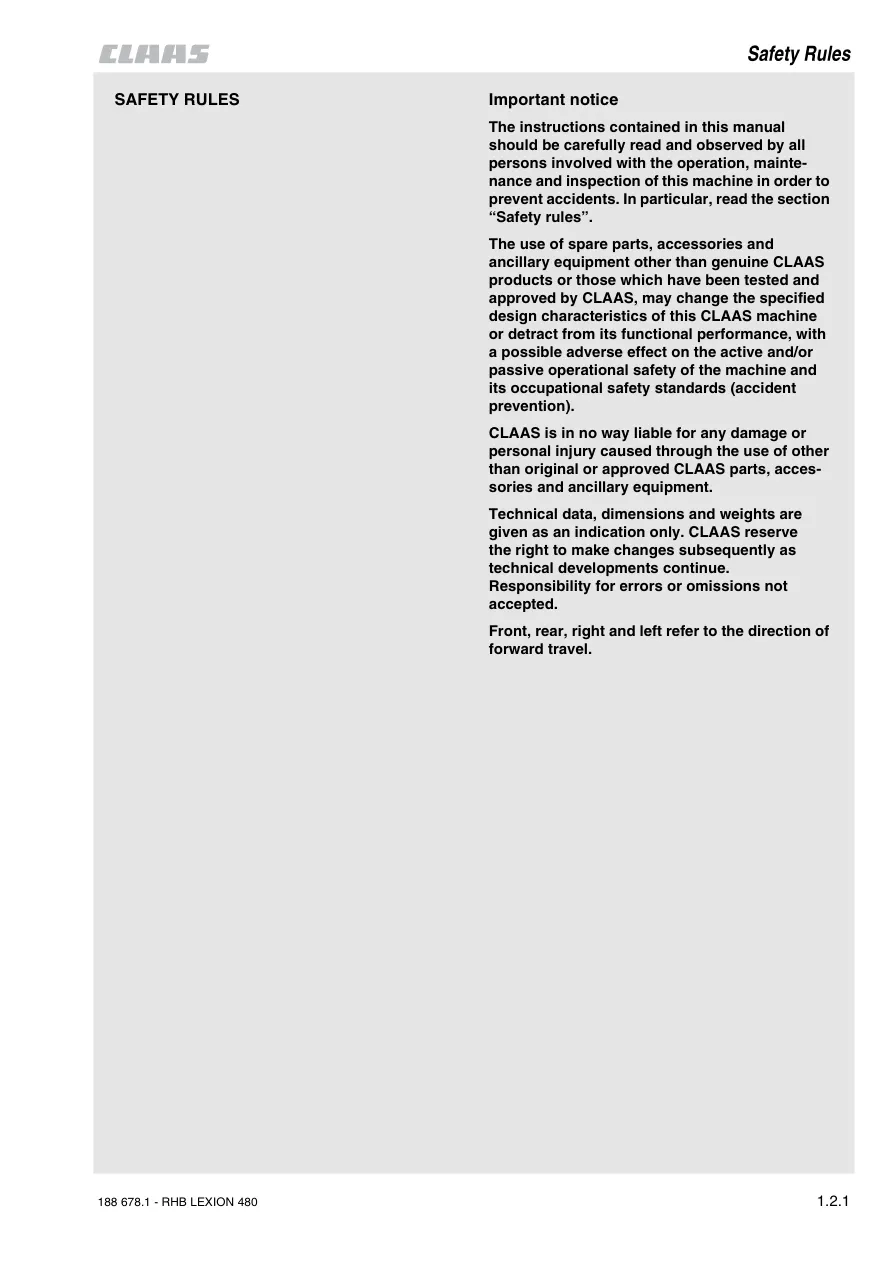

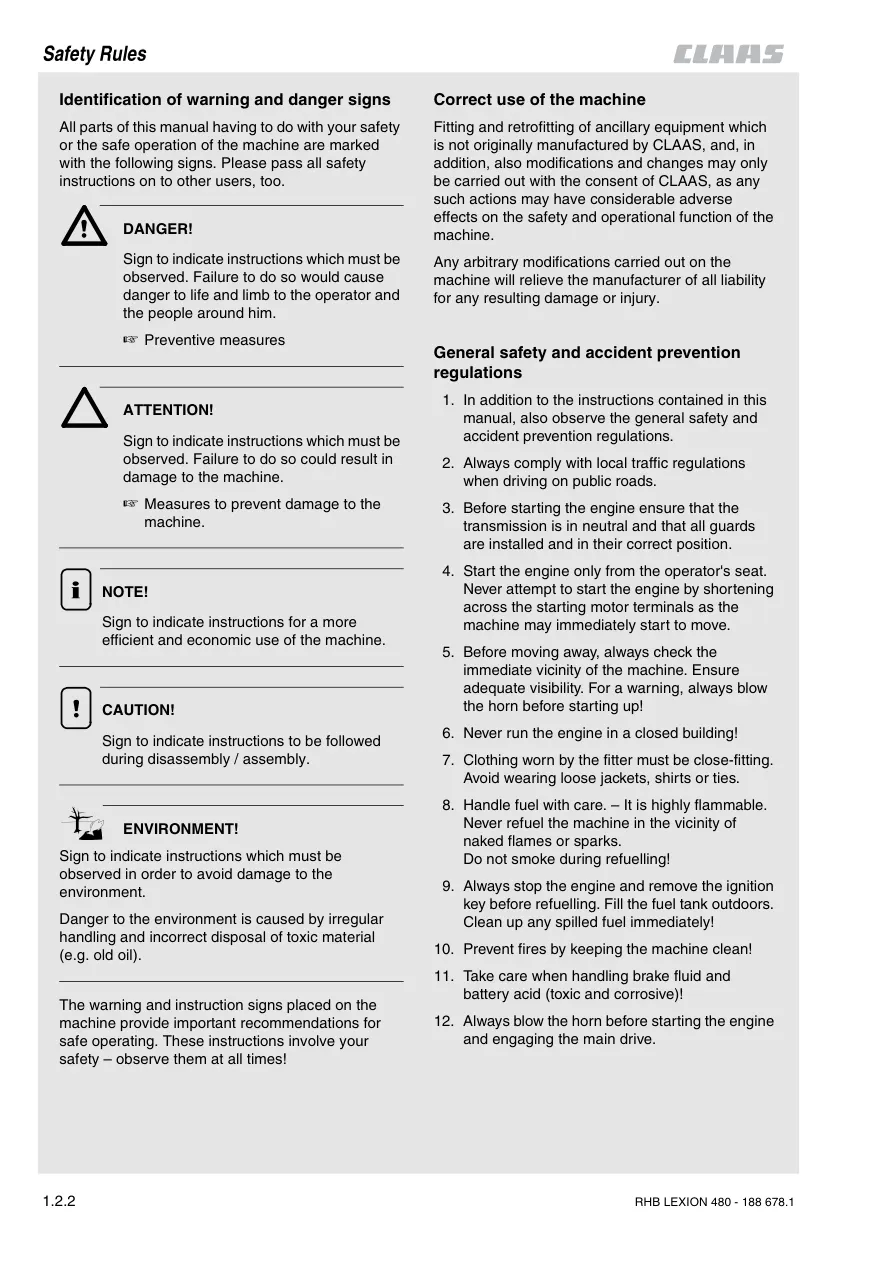

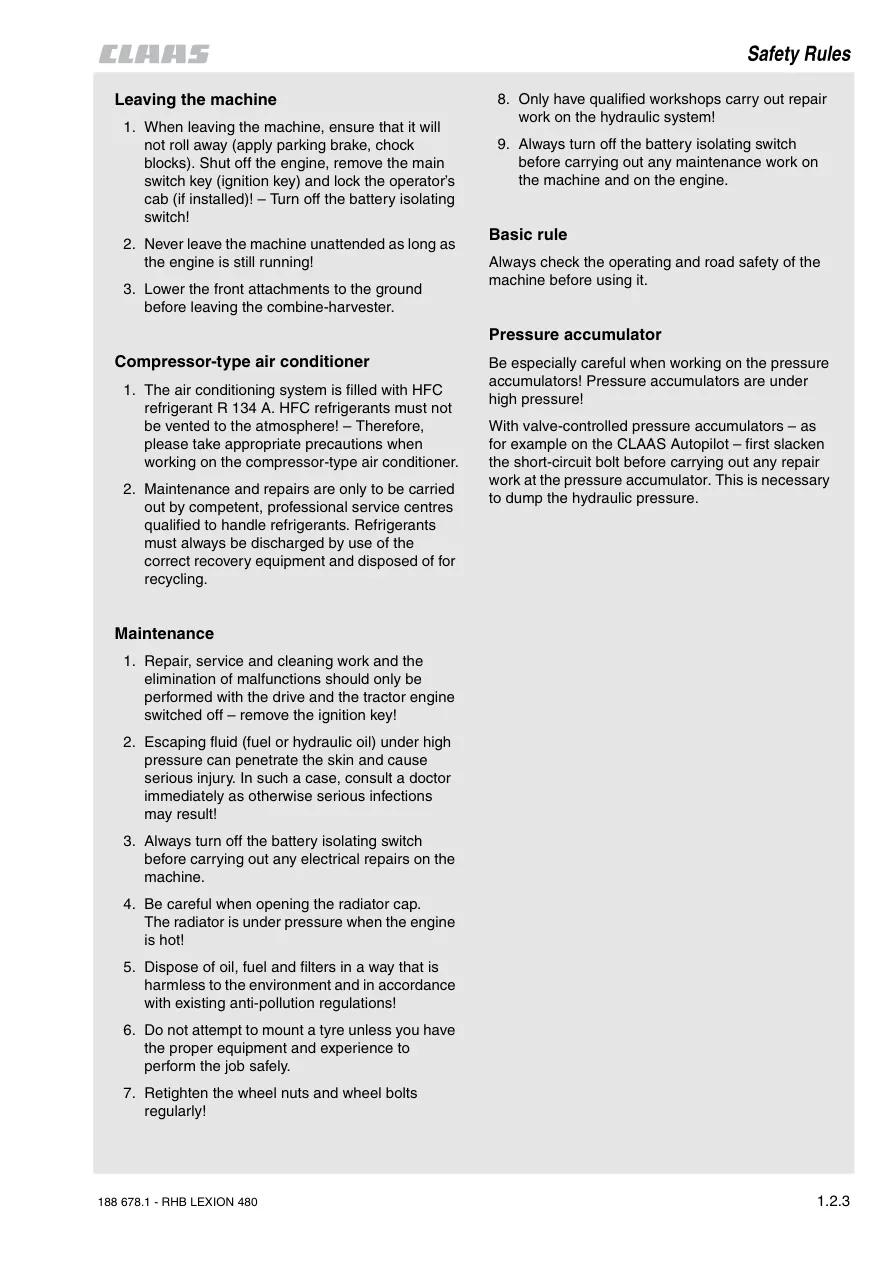

• Safety Rules m (p.1-4)
• General m (p.7-10)
• General repair information (p.11-14)
• Sectional view of machine (p.15-18)
• Drives, axles, drive diagram, belts (p.19-296)
• Final drives (p.9-38)
• Drive belts (p.39-42)
• Left-hand drive belts (p.43-78)
• Right-hand drive belts (p.79-110)
• Axial rotor drive (p.111-132)
• Chopper drive (p.133-152)
• Cutterbar drive (p.153-218)
• Fan drive (p.219-260)
• Rocker arm drive (p.261-264)
• Straw spreader drive (p.265-276)
• Uni-spreader drive (p.277-278)
• Engine, Engine output, Eectrical system (p.297-330)
• Engine (p.1-10)
• Engine electric system (p.11-12)
• Engine output (p.13-34)
• Fuel system (p.331-334)
• Axial rotors (p.335-358)
• Brake (p.359-366)
• Cleaning fan (p.367-380)
• Cooling system (p.381-386)
• Feed rake conveyor (p.387-424)
• Grain elevator (p.425-444)
• Grain tank unloading, drive (p.445-490)
• Grain tank unloading (p.1-42)
• Grain tank unloading drive (p.43-46)
• Hydraulic (p.491-590)
• Hydraulic cylinders – High-pressure hydraulic circuit (p.1-36)
• Hydraulic cylinders – Steering hydraulics (p.37-48)
• Hydraulic cylinders for low-pressure hydraulics (p.49-88)
• Hydraulic pumps (p.89-96)
• Maintenance hydraulic system (p.97-100)
• Hydrostatic fixed displacement motors (p.591-600)
• Impeller (p.601-614)
• Manual gearbox (p.615-642)
• Oil cooler (p.643-646)
• Preparation floor (p.647-650)
• Returns elevator, pan (p.651-670)
• Returns elevator (p.7-20)
• Rotary screen drive (p.671-688)
• Rotary screen (p.1-12)
• Rotary screen drive (p.13-18)
• Sieve pan, drive (p.689-720)
• Sieve pan (p.1-24)

Built for real workshop use — the complete reference for keeping this machine running season after season.
