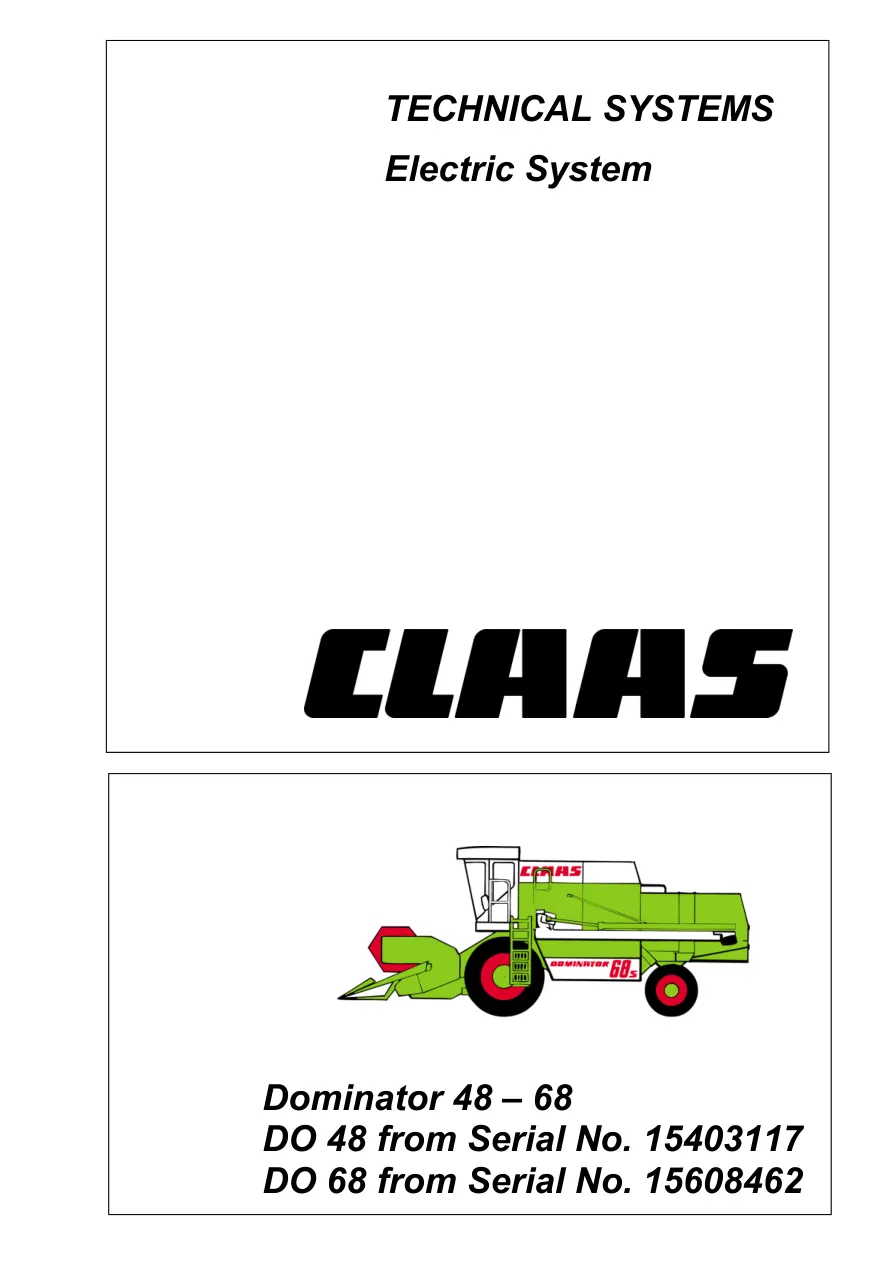

Claas Class Dominator DO48 DO68 Combine Service & Repair Manual

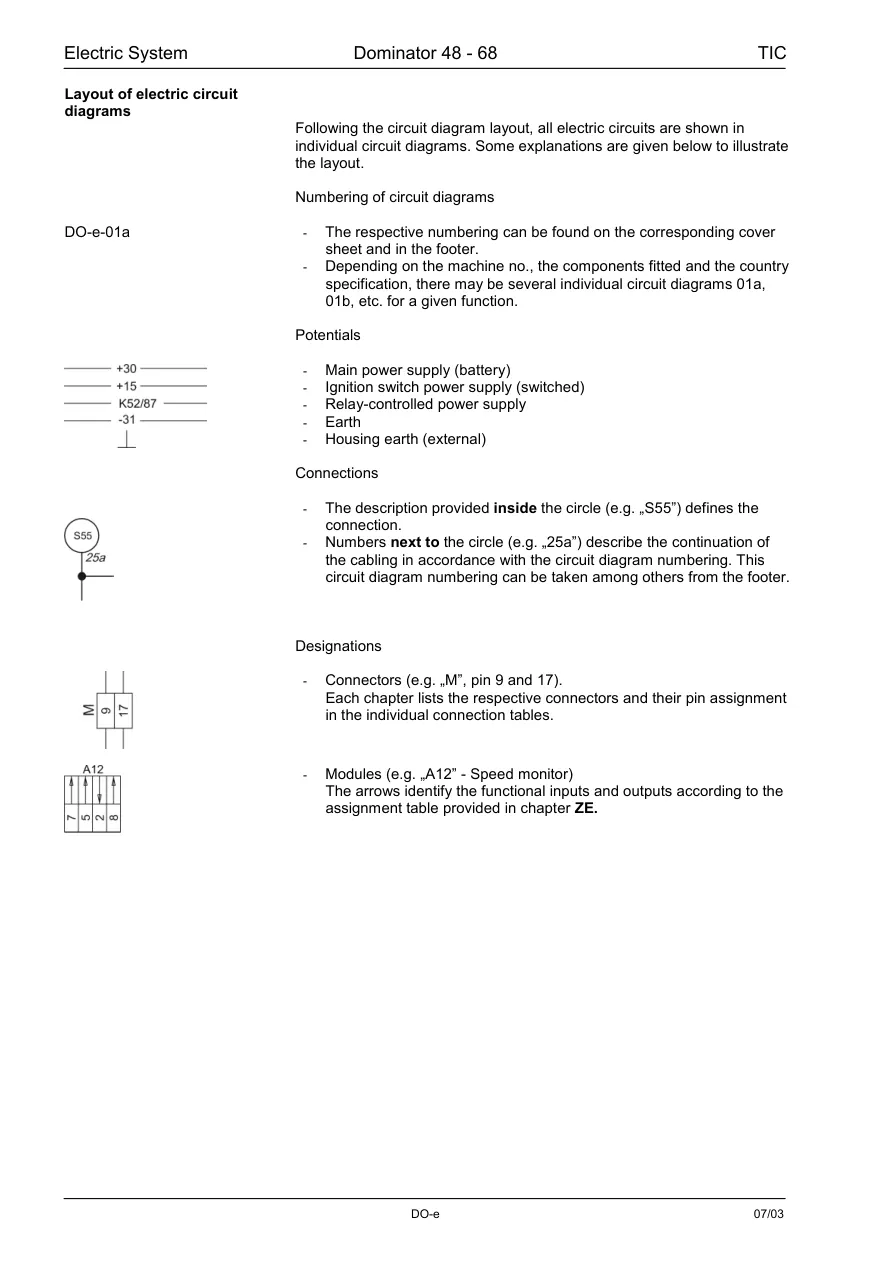

The Claas Class Dominator DO48 DO68 Combine service & repair manual is the complete 112-page factory workshop manual for this machine — with full step-by-step procedures, specifications, torque values, wiring and hydraulic diagrams and fault diagnosis.

What’s inside this manual:

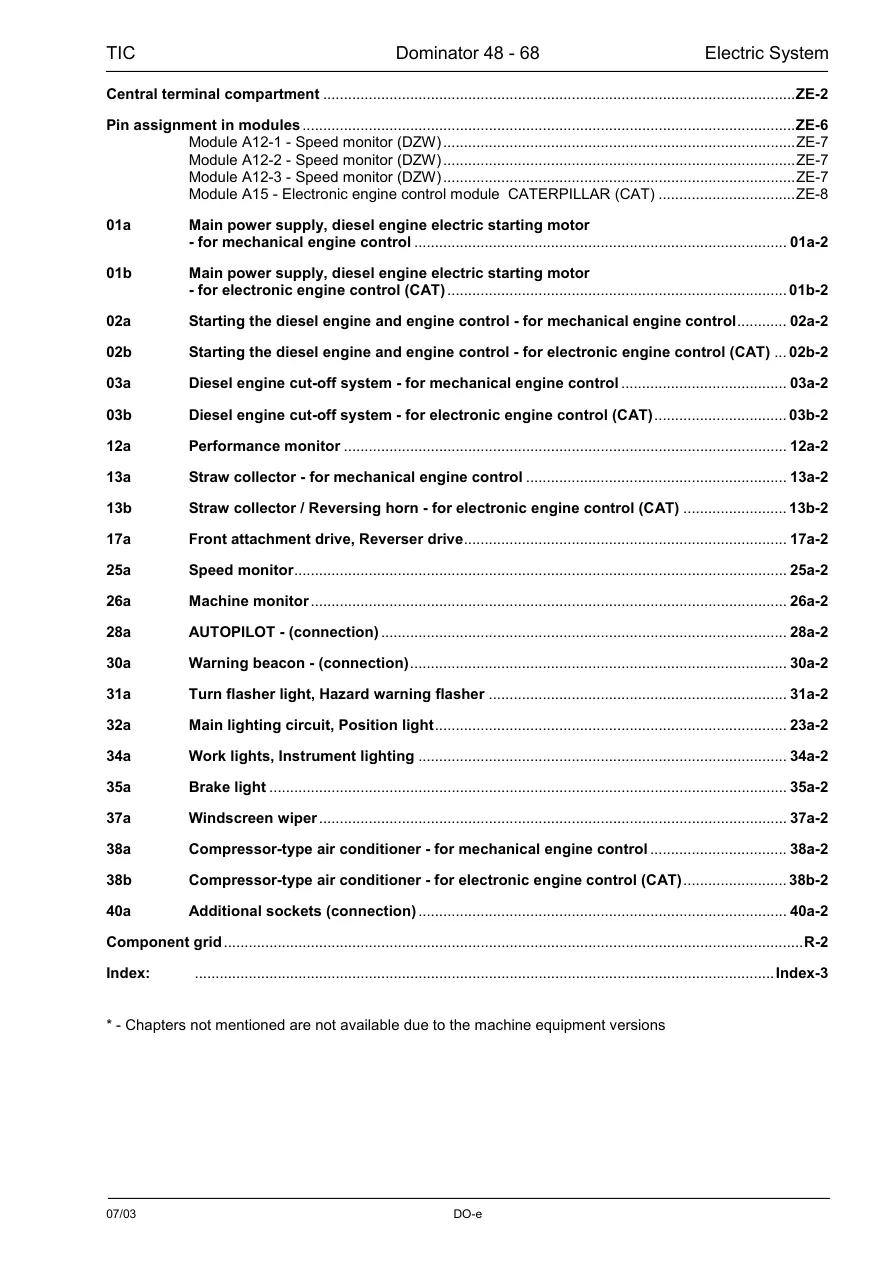

• Contents
• Central terminal compartment
• Pin assignment in modules
• Module A12-1 - Speed monitor (DZW)
• Module A12-2 - Speed monitor (DZW)
• Module A12-3 - Speed monitor (DZW)
• Module A15 - Electronic engine control module CATERPILLAR (CAT)
• 01a Main power supply, diesel engine electric starting motor - for mechanical engine control
• 01b Main power supply, diesel engine electric starting motor - for electronic engine control (CAT)
• 02a Starting the diesel engine and engine control - for mechanical engine control
• 02b Starting the diesel engine and engine control - for electronic engine control (CAT)
• 03a Diesel engine cut-off system - for mechanical engine control
• 03b Diesel engine cut-off system - for electronic engine control (CAT)
• 12a Performance monitor
• 13a Straw collector - for mechanical engine control
• 13b Straw collector / Reversing horn - for electronic engine control (CAT)
• 17a Front attachment drive, Reverser drive
• 25a Speed monitor
• 26a Machine monitor
• 28a AUTOPILOT - (connection)
• 30a Warning beacon - (connection)
• 31a Turn flasher light, Hazard warning flasher
• 32a Main lighting circuit, Position light
• 34a Work lights, Instrument lighting
• 35a Brake light
• 37a Windscreen wiper
• 38a Compressor-type air conditioner - for mechanical engine control
• 38b Compressor-type air conditioner - for electronic engine control (CAT)
• 40a Additional sockets (connection)

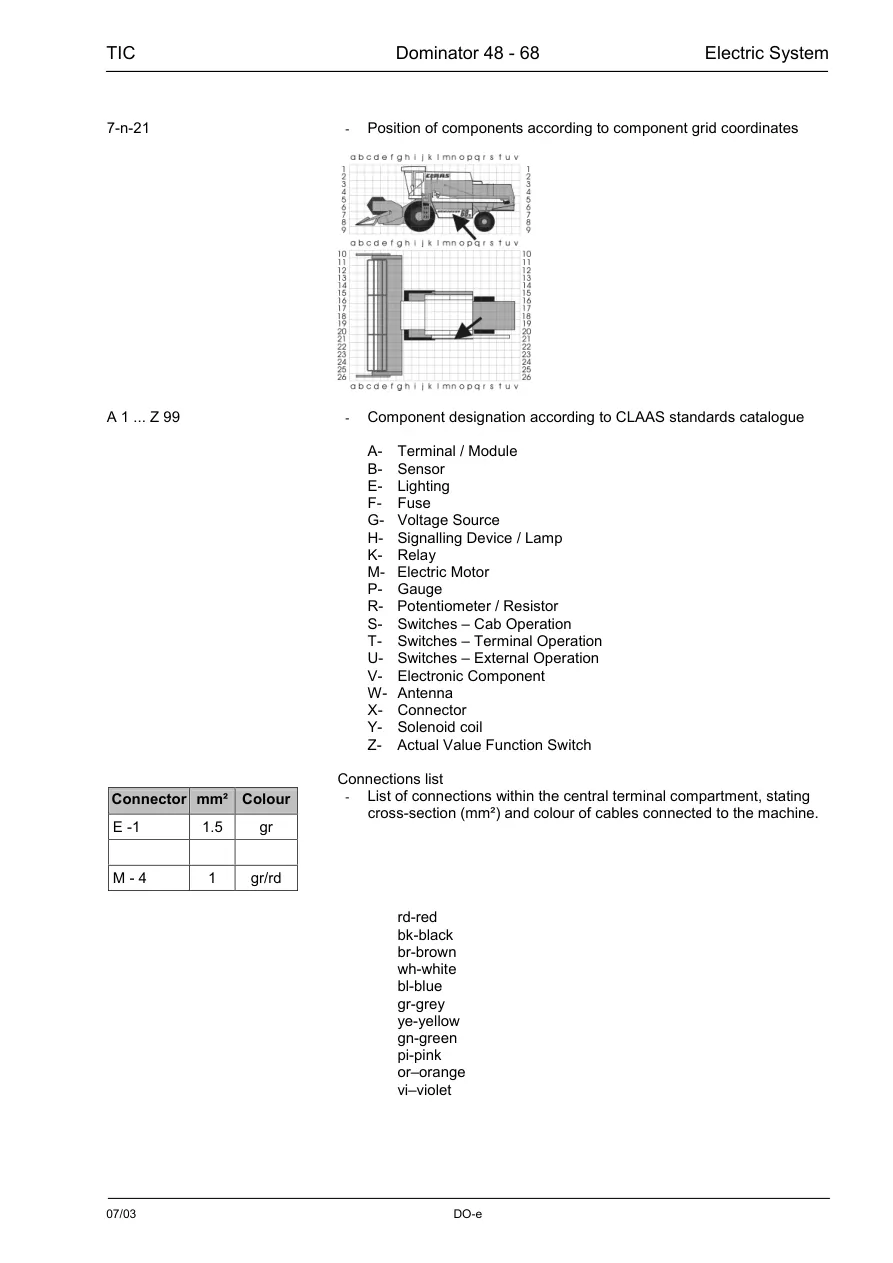

• Component grid
• Index

With OEM-level detail throughout, it is everything needed to service, diagnose and repair the machine.
