Case 970 1070 Tractors Service & Repair Manual

The Case 970 1070 Tractors service & repair manual is the complete 697-page factory workshop manual for this machine — with full step-by-step procedures, specifications, torque values, wiring and hydraulic diagrams and fault diagnosis.

What’s inside this manual:

• Cover

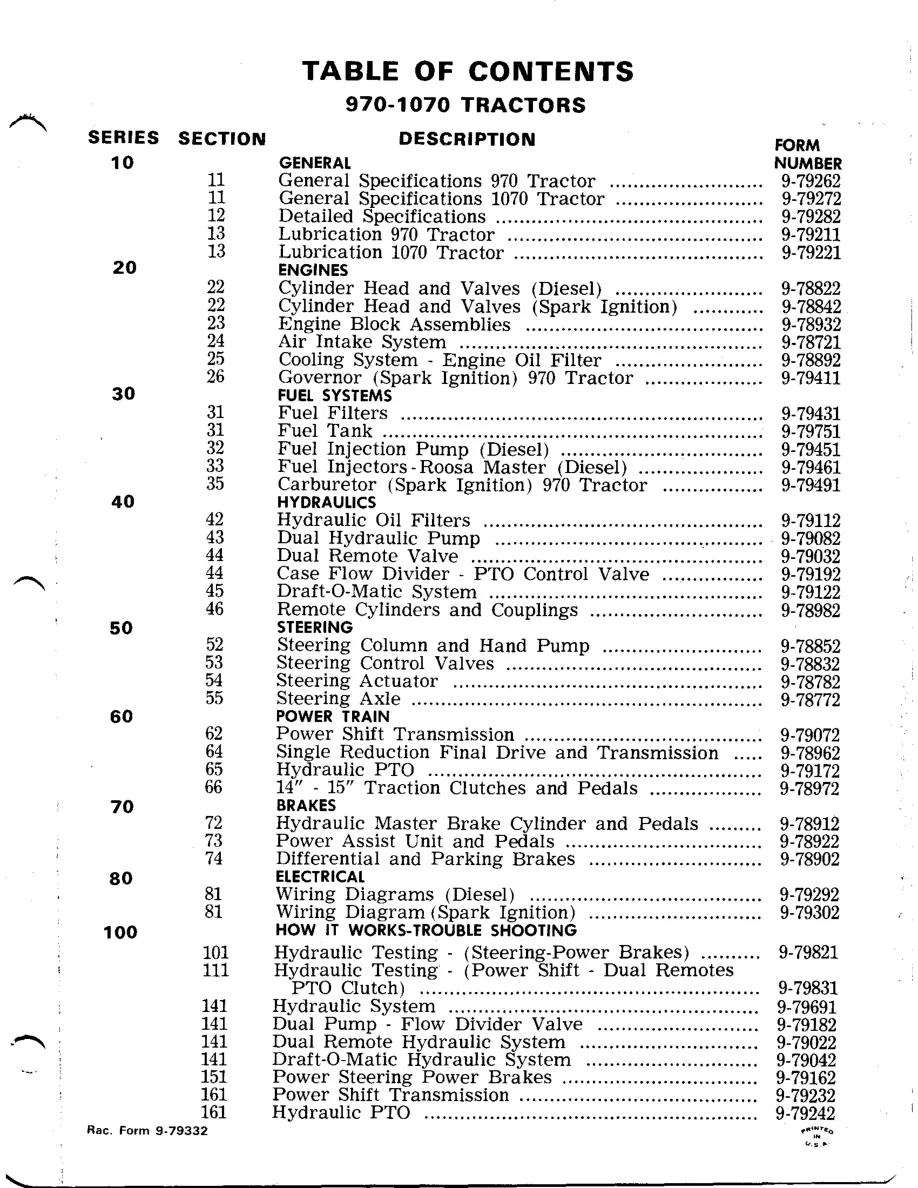

• CONTENTS
• 10- GENERAL

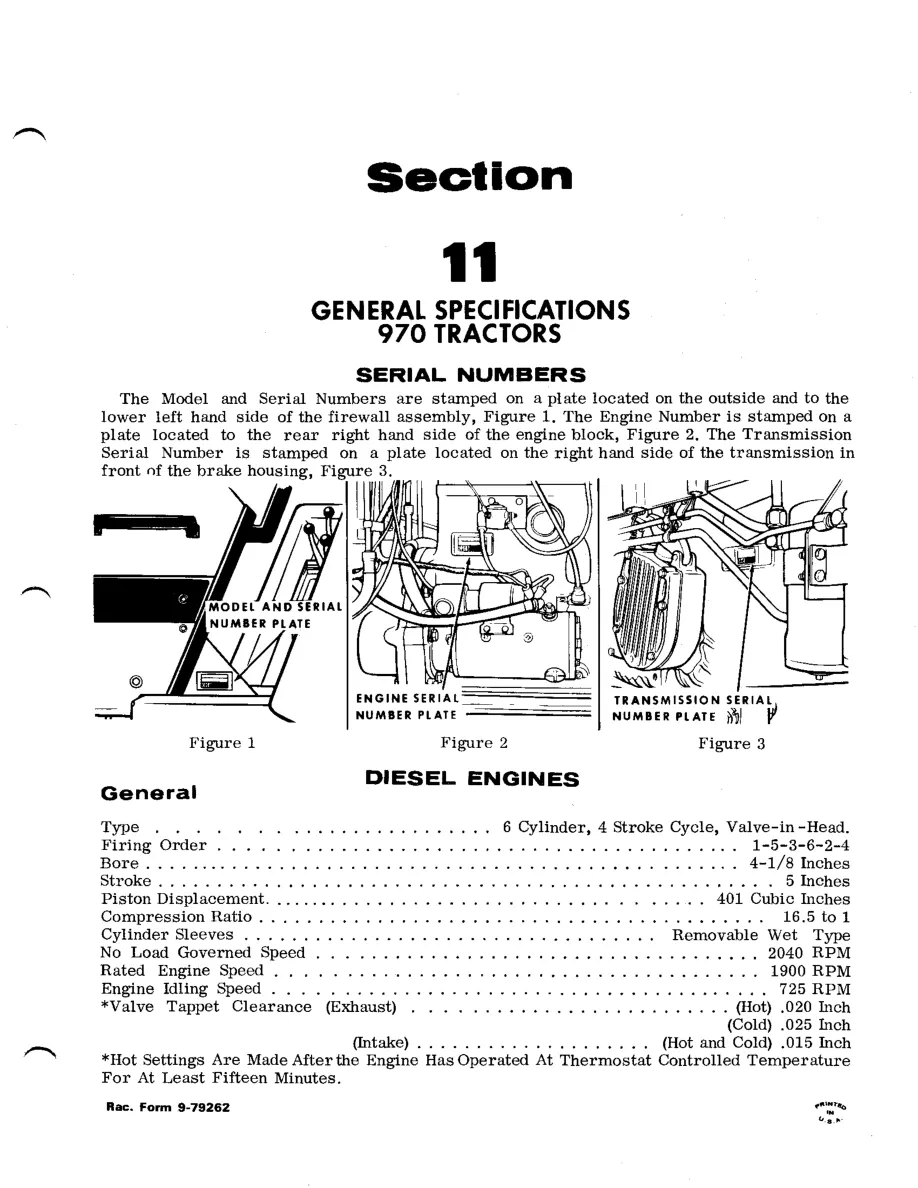

• 11- General Specifications 970 Tractor
• 11- General Specifications 1070 Tractor

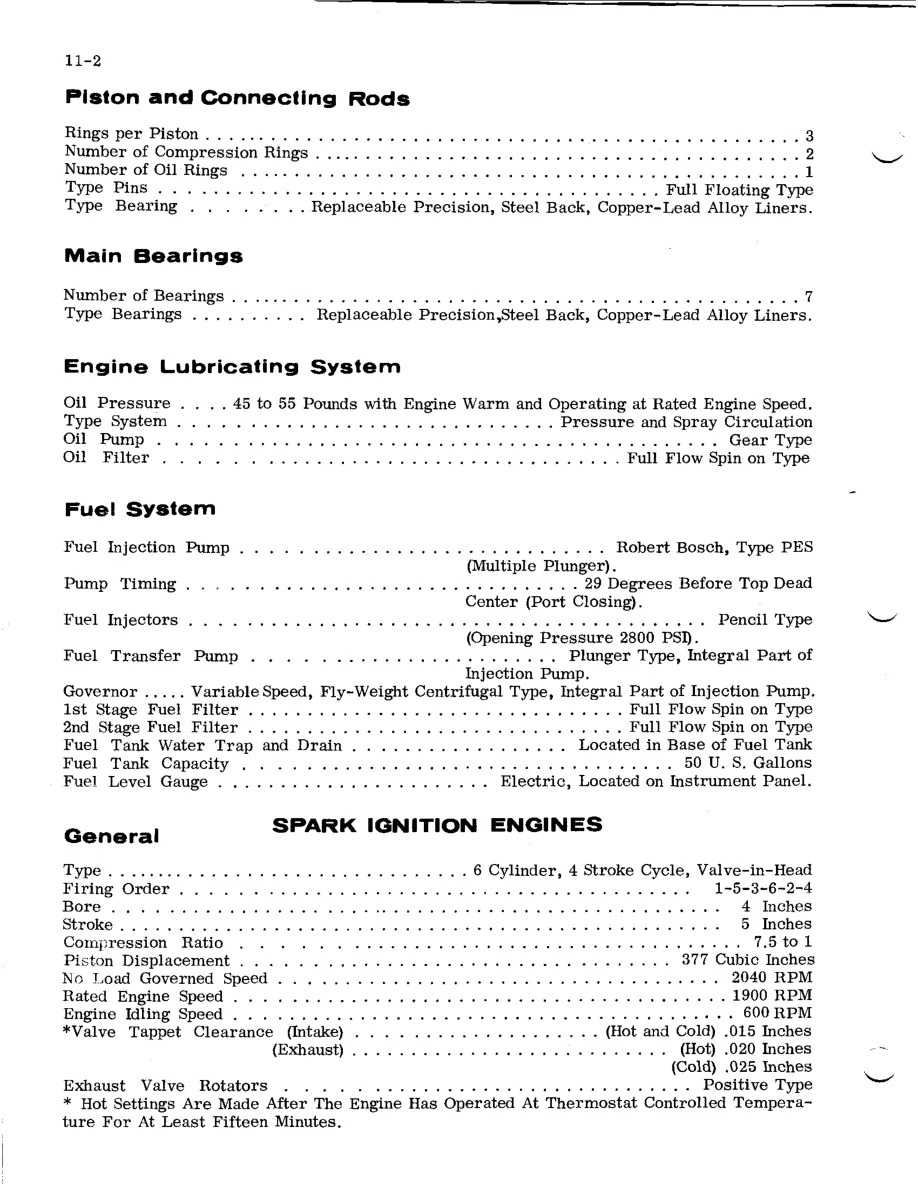

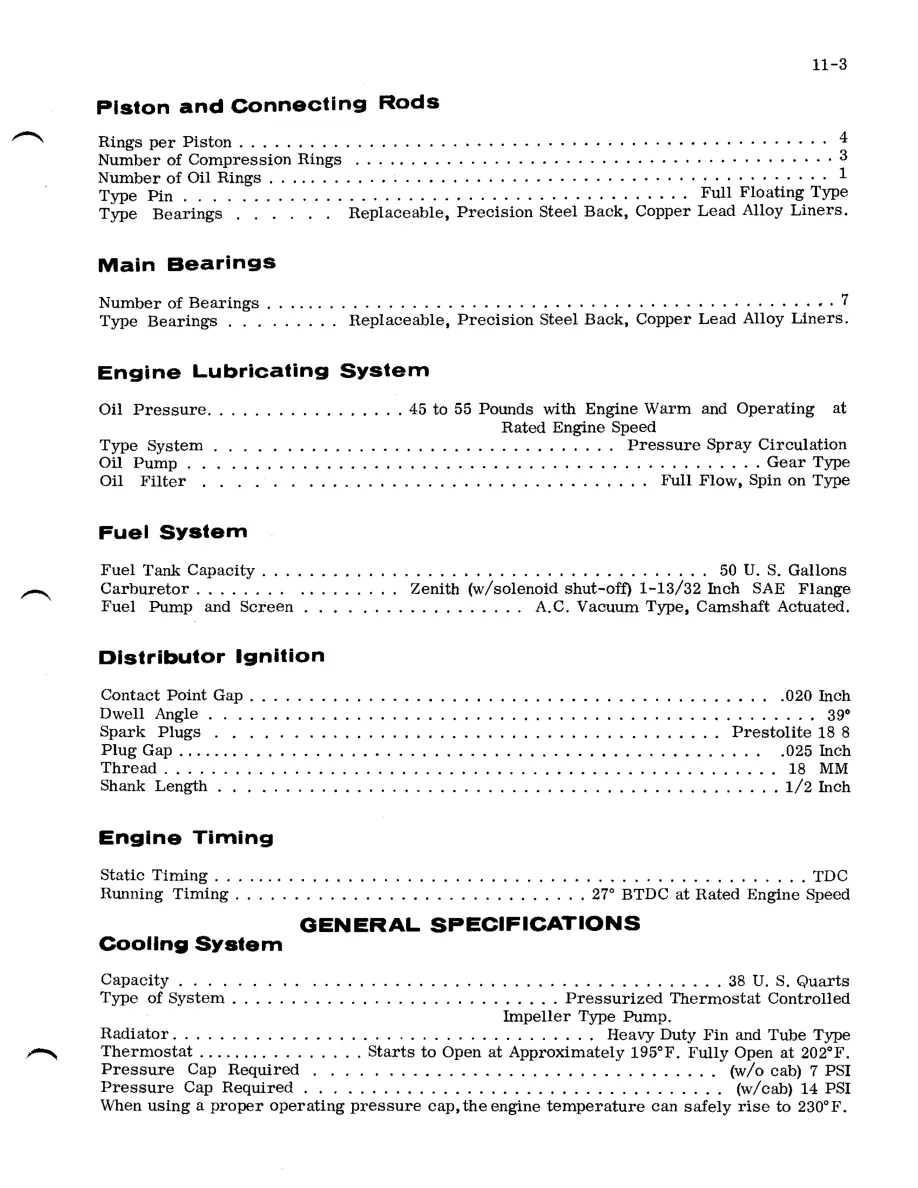

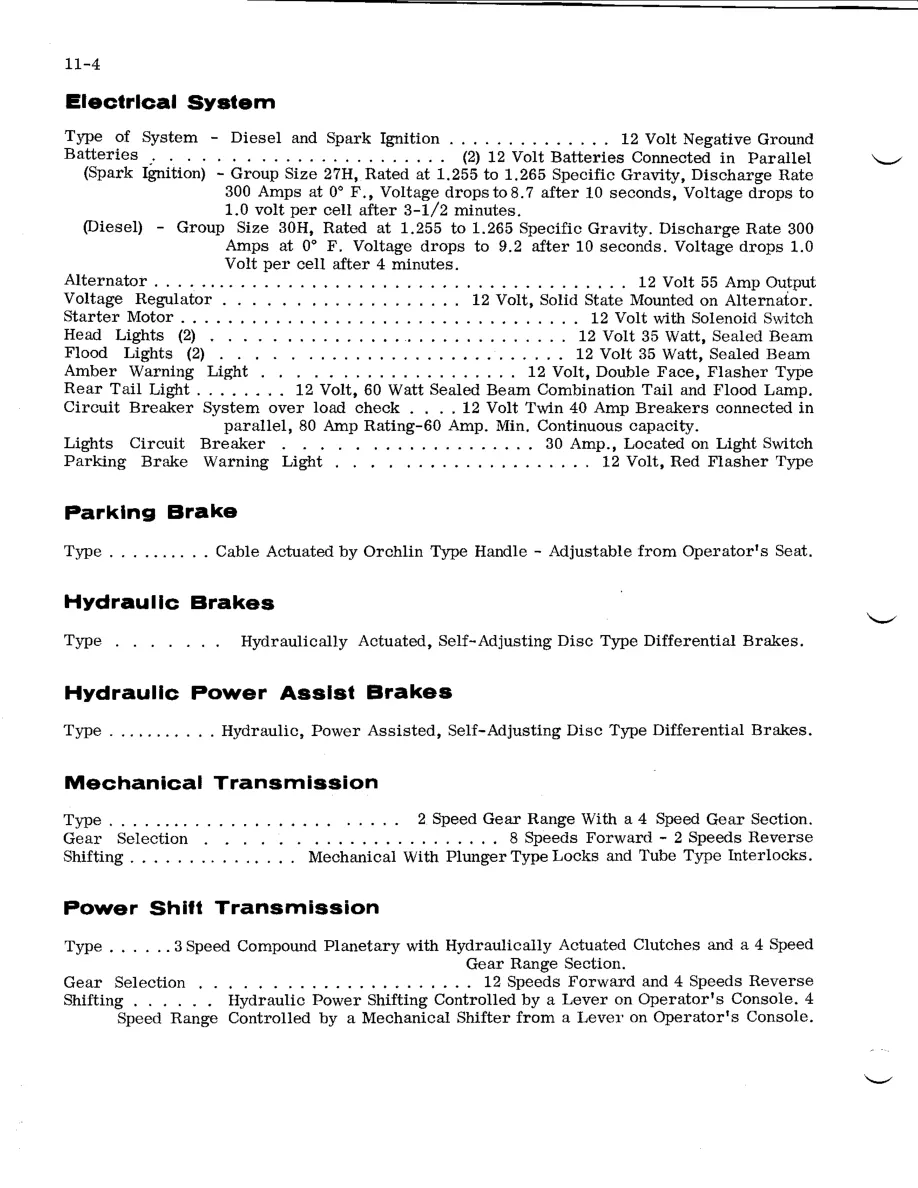

• 12- Detailed Specifications
• 13- Lubrication 970 Tractor
• 13- Lubrication 1070 Tractor
• 20- ENGINES
• 22- Cylinder Head and Valves (Diesel)
• 22- Cylinder Head and Valves (Spark Ignition)
• 23- Engine Block Assemblies
• 24- Air Intake System
• 25- Cooling System - Engine Oil Filter
• 26- Governor (Spark Ignition) 970 Tractor
• 30- FUEL SYSTEMS
• 31- Fuel Filters
• 31- Fuel Tank
• 32- Fuel Injection Pump (Diesel)
• 33- Fuel Injectors -Roosa Master (Diesel)
• 35- Carburetor (Spark Ignition) 970 Tractor
• 40- HYDRAULICS
• 42- Hydraulic Oil Filters
• 43- Dual Hydraulic Pump
• 44- Dual Remote Valve
• 44- Case Flow Divider - PTO Control Valve
• 45- Draft-O-Matic System
• 46- Remote Cylinders & Couplings
• 50- STEERING
• 52- Steering Column & Hand Pump
• 53- Steering Control Valves
• 54- Steering Actuator
• 55- Steering Axle
• 60- POWER TRAIN
• 62- Power Shift Transmission
• 64- Single Reduction Final Drive & Transmission
• 65- Hydraulic PTO
• 66- 14"-15" Traction Clutches & Pedals
• 70- BRAKES
• 72- Hydraulic Master Brake Cylinder & Pedals
• 73- Power Assist Unit & Pedals
• 74- Differential & Parking Brakes
• 80- ELECTRICAL
• 81- Wiring Diagrams (Diesel)
• 81- Wiring Diagram (Spark Ignition)
• 92- Cab, Air Conditioning & Components
• 100- HOW IT WORKS - TROUBLE SHOOTING
• 101- Hydraulic Testing - (Steering-Power Brakes)
• 111- Hydraulic Testing - (Power Shift - Dual Remotes PTO Clutch)
• 141- Hydraulic System
• 141- Dual Pump - Flow Divider Valve
• 141- Dual Remote Hydraulic System
• 141- Draft-O-Matic Hydraulic System
• 151- Power Steering Power Brakes
• 161- Power Shift Transmission

With OEM-level detail throughout, it is everything needed to service, diagnose and repair the machine.
