2024 Hyundai Palisade Service and Repair Manual
Regular price
$55.99 USD
Unit price
Covers all 2024 Palisade trims — Calligraphy Sport Utility 4-Door, Ultimate Calligraphy Sport Utility 4-Door, Preferred Sport Utility 4-Door +5 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

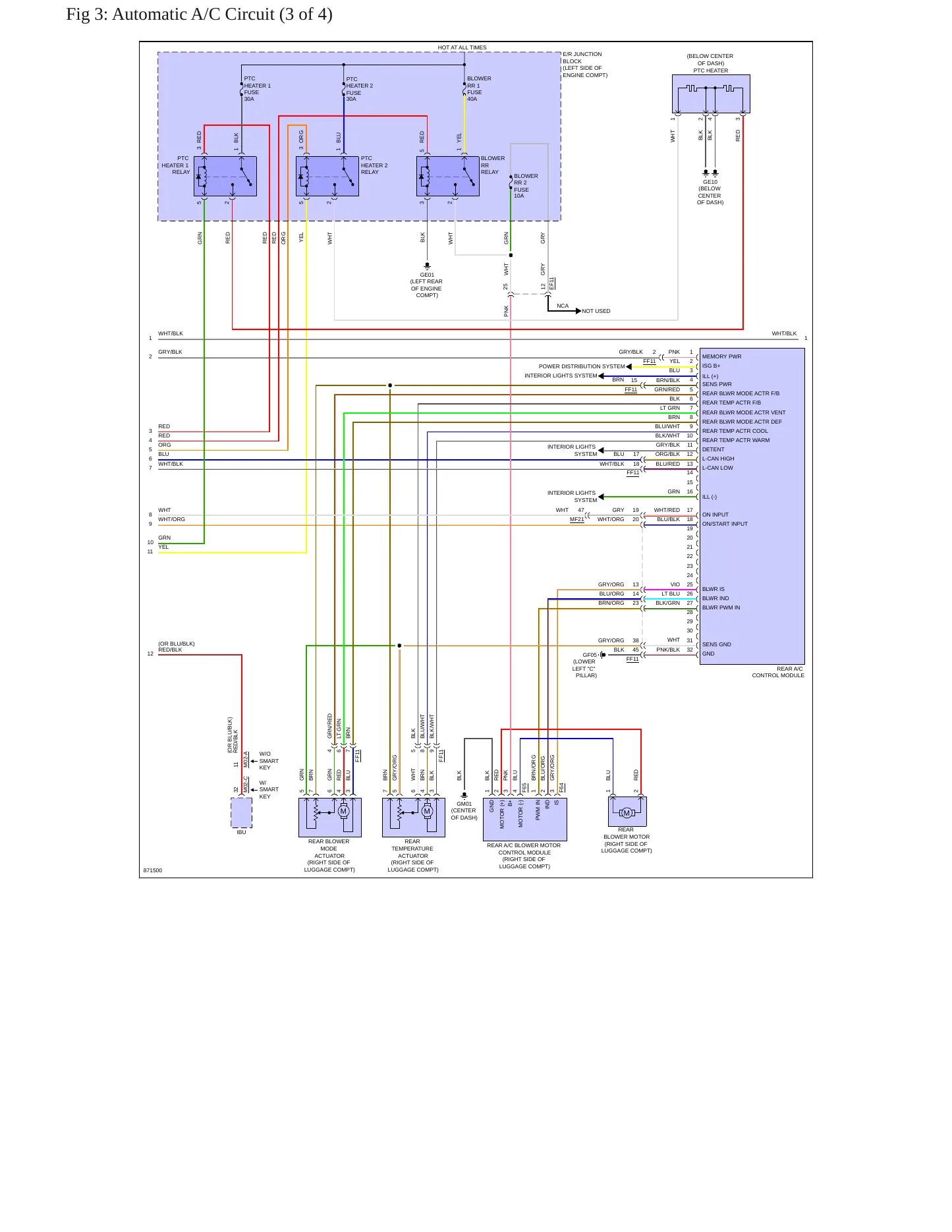

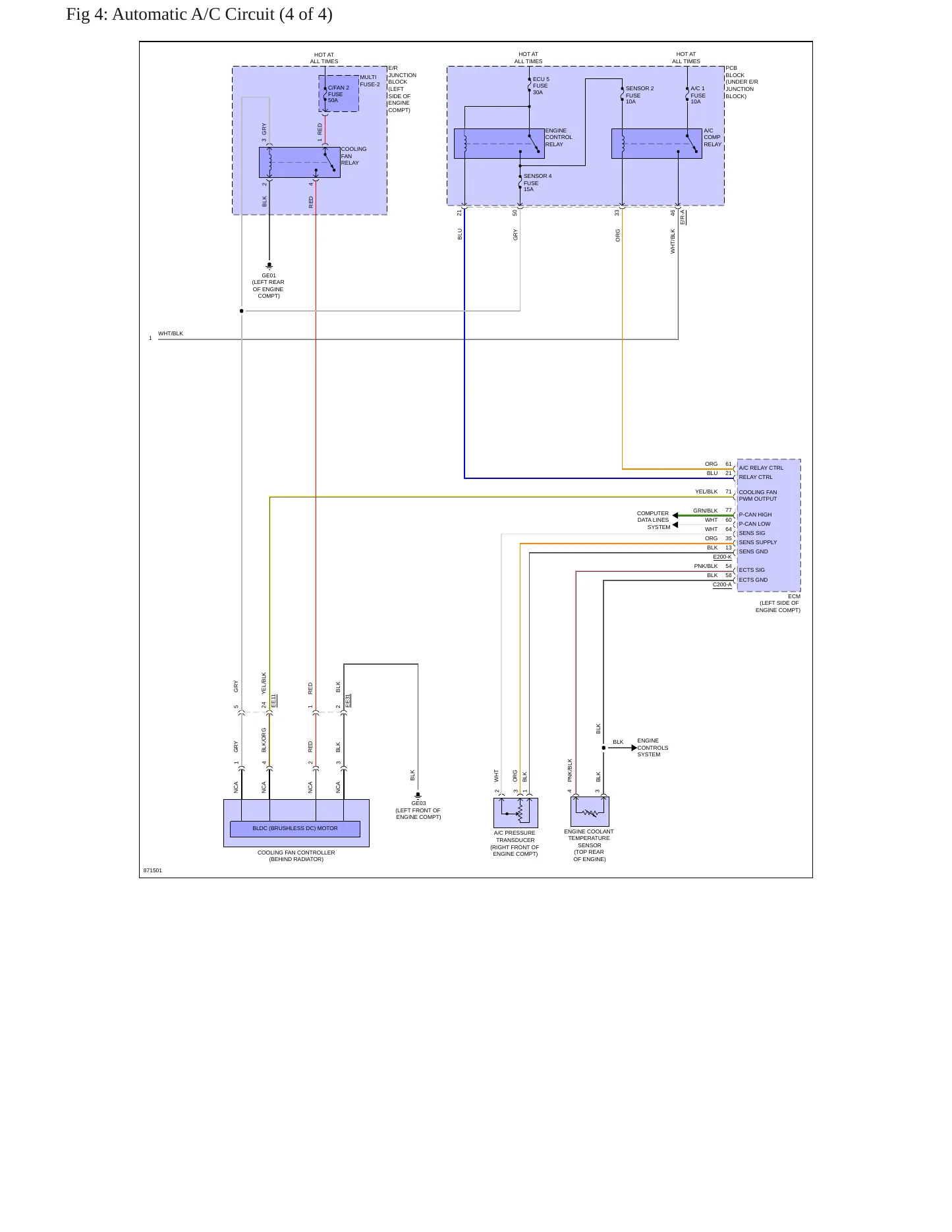

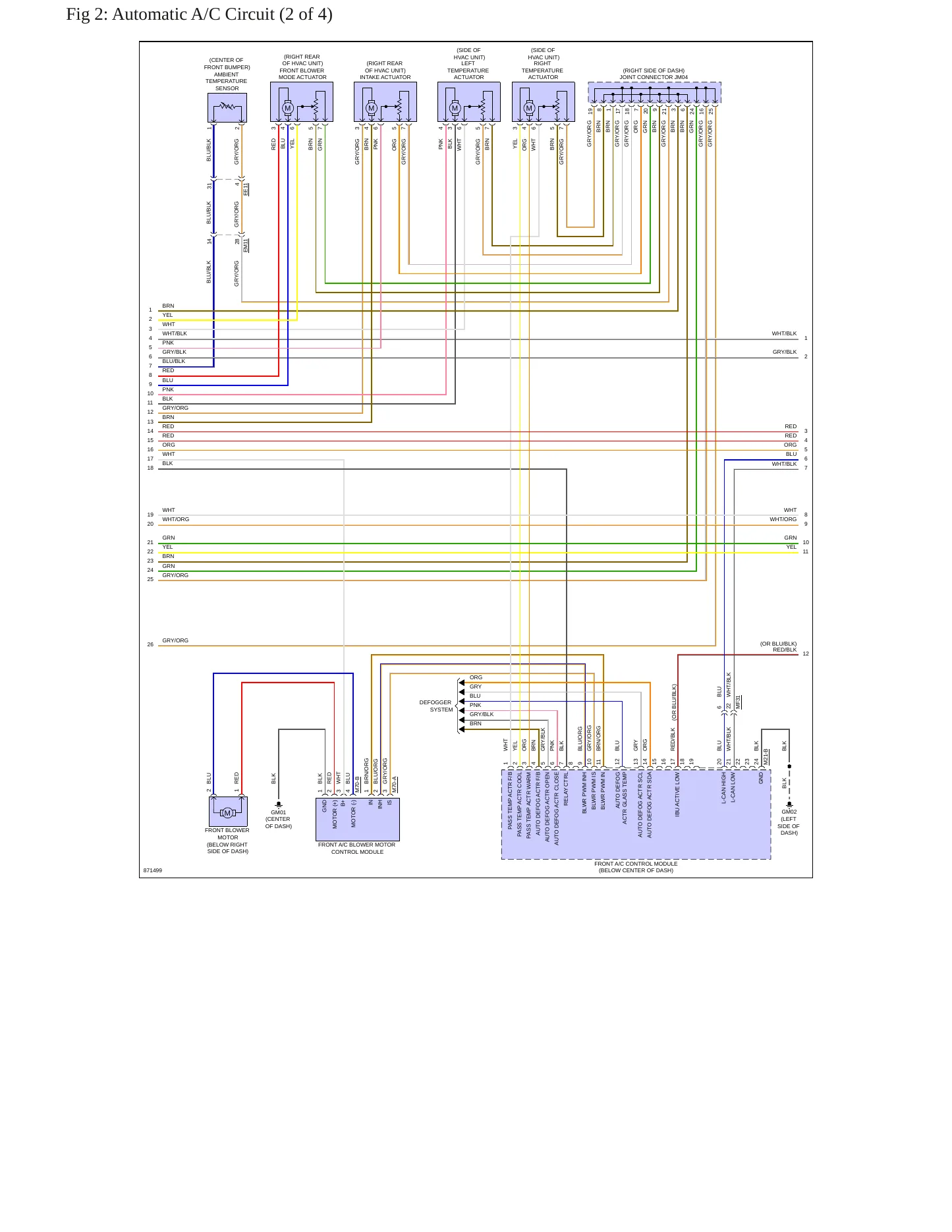

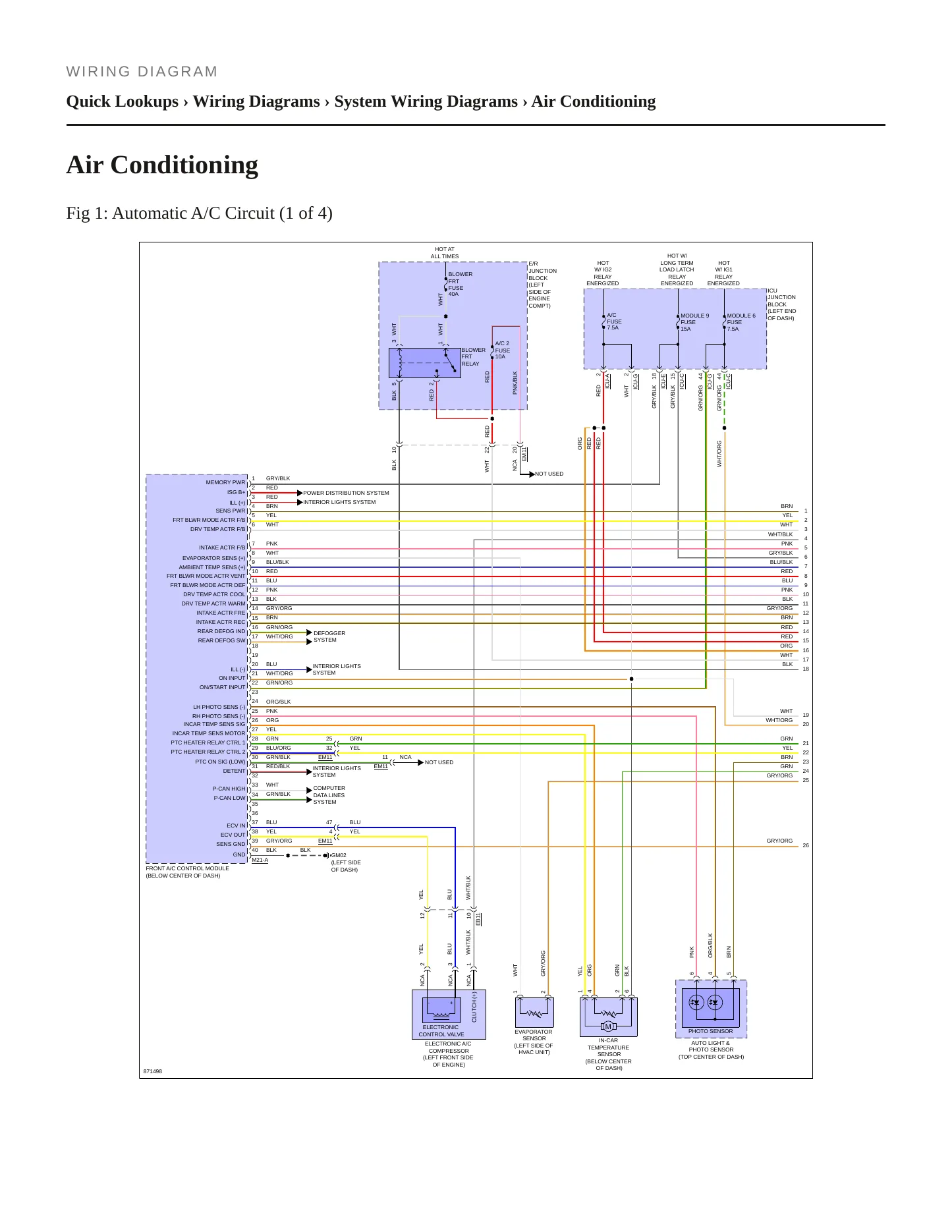

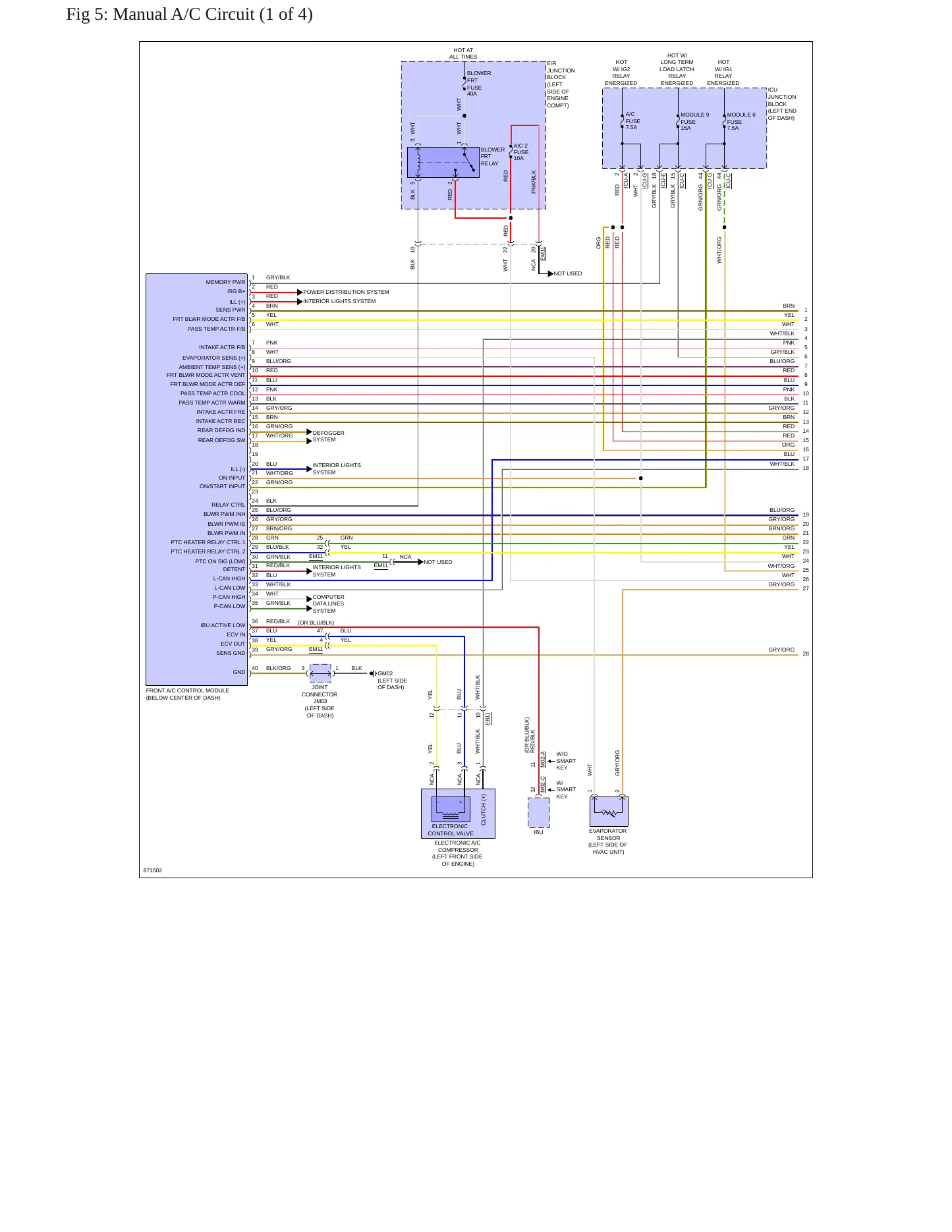

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$55.99
2024 Hyundai Palisade Service and Repair Manual
Regular price
$55.99 USD
Unit price
Hyundai published one set of specifications for the 2024 Palisade, and this factory service and repair manual carries exactly that set — matched to the year, the 3.8L V6 and each trim listed below, so no torque value or clearance in it is a figure carried over from an earlier Palisade generation.
Engines covered
- 3.8L V6 (231 cu in) — DOHC, naturally aspirated, gasoline
Body styles covered
- 4-door sport utility
Trims covered
- Calligraphy
- Calligraphy Night Edition
- Limited
- Limited Tech
- Preferred
- SE
- SEL
- Ultimate Calligraphy
- Urban
- XRT
Known issues on the 2024 Palisade. Four recalls are on federal record for this model year. The first involves the electronic controller for the Idle Stop & Go oil pump assembly: an electric oil pump assembly that overheats increases the risk of a vehicle fire. The second affects vehicles equipped with dark premium suede seats, where the Occupant Detection System may fail to detect an occupant — a deactivated front passenger air bag will not deploy as intended, increasing the risk of injury. The third covers the engine itself: the valve springs may break while driving, which can result in a loss of drive power and possibly create a hole in the engine block, and a loss of drive power increases the risk of a crash. The fourth concerns the seat belt buckles in the driver, passenger, and second-row window seats, which may fail to latch and so may not properly restrain occupants in a crash. Owners have filed 484 complaints for the year and Hyundai has issued 49 technical service bulletins. The factory diagnostic and repair procedures behind each of those systems are here.
From tracing a valve-train failure to checking the Idle Stop & Go oil pump controller or inspecting a second-row seat belt buckle, it keeps you on Hyundai’s own procedure and the correct specification for your specific 2024 Palisade.
Hyundai Motor America (Hyundai) is recalling certain 2023-2024 Palisade Tucson, 2023 Sonata, Elantra, and Kona vehicles. The electronic controller for the Idle Stop & Go oil pump assembly may contain damaged electrical components that can cause the pump controller to overheat.
Consequence
An electric oil pump assembly that overheats increases the risk of a vehicle fire.
Remedy
Owners are advised to park outside and away from structures until the recall repair is complete. Dealers will inspect and replace the electric oil pump controller, as necessary, free of charge. Owner notification letters were mailed starting September 7, 2023. Owners may contact Hyundai customer service at 1-855-371-9460. Hyundai's number for this recall is 246.
Hyundai Motor America (Hyundai) is recalling certain 2024 Palisade vehicles equipped with dark premium suede seats. The Occupant Detection System (ODS) may fail to detect an occupant and deactivate the passenger-side front air bags. As such, these vehicles fail to comply with Federal Motor Vehicle Safety Standard number 208, "Occupant Crash Protection."
Consequence
Deactivated front passenger air bags will not deploy as intended, increasing the risk of injury during a crash.
Remedy
Dealers will update the ODS software, free of charge. Owner notification letters were mailed September 26th, 2023. Owners may contact Hyundai customer service at 1-855-371-9460. Hyundai's number for this recall is 249.
Hyundia Motor America (Hyundai) is recalling certain 2024 Palisade vehicles. The engine valve springs may break while driving, which can result in a loss of drive power and possibly create a hole in the engine block.
Consequence
A loss of drive power increases the risk of a crash. A hole in the engine block increases the risk of a fire.
Remedy
Dealers will replace the engine sub-assembly, free of charge. Owner notification letters were mailed by December 6, 2024. Owners may contact Hyundai customer service at 1-855-371-9460. Hyundai's number for this recall is 255.
Hyundai Motor America (Hyundai) is recalling certain 2020-2025 Palisade vehicles. The seat belt buckles in the driver, passenger, and second-row window seats may fail to latch.
Consequence
Seat belt buckles that fail to latch may not properly restrain occupants in a crash, increasing the risk of injury.
Remedy
Passengers are advised to insert the belt firmly into the buckle with a quick and direct motion, pulling on the belt to confirm the seat belt is fully secured, until the recall remedy is performed. Dealers will replace the seat belt buckle assemblies, free of charge. Interim notification letters, notifying owners of the safety risk, were mailed beginning October 23, 2025. Final remedy owner letters will be mailed in phases, beginning in June 2026 and expected to continue through December 2026. O
Hyundai Motor America (Hyundai) is recalling certain 2020-2025 Palisade vehicles. The side curtain air bags for third-row occupants may deploy improperly in a crash. As such, these vehicles fail to comply with the requirements of Federal Motor Vehicle Safety Standard (FMVSS) number 226, "Ejection Mitigation."
Consequence
Improper side curtain air bag deployment increases the risk of injury during a crash.
Remedy
Dealers will install a protective film over the rear window and remove padding, as necessary free of charge. Interim notification letters, notifying owners of the safety risk, were mailed beginning March 13, 2026. Final remedy owner letters will be mailed in phases, beginning in June 2026 and expected to continue through December 2026. Owners may contact Hyundai customer service at 1-855-371-9460. Hyundai's number for this recall is 292. Vehicle Identification Numbers (VINs) involved in this rec
Certain 2020 2025 model year Palisade vehicles may exhibit engine oil leakage at the engine oil filter housing assembly due to deterioration of the housing seal. At Hyundai, we are committed to providing vehicles of outstanding quality and
Certain 2020 2024 model year Palisade vehicles may exhibit a clunking or thumping noise from the rear of the vehicle while driving over rough roads. This may be caused by worn rear self-leveling shock absorbers. At Hyundai, we are committed
Some Palisade (LX2) vehicles may display a Check forward safety systems warning message on the cluster along with DTC C272246, due to the front view camera calibration range being exceeded. This bulletin provides instructions to replace the
Some Palisade (LX2), Tucson (NX4), and Tucson Hybrid (NX4 HEV) vehicles may experience battery drain due to continuous operation of the cooling fan after vehicle ignition has been turned off, potentially resulting in a no-start condition. T
Certain Palisade (LX2) vehicles may exhibit a clunking or thumping noise from the rear of the vehicle while driving over rough roads. This may be caused by worn self-leveling rear shock absorbers. Hyundai is extending the warranty coverage
This bulletin provides information related to the navigation and head unit software changes introduced in the 2026 1st Navigation Map and Software Update. The changes may vary depending on vehicle type, model, and navigation system. Refer t
Some Palisade (LX2) vehicles may produce noise from AWD coupling vibrations when making turns caused by a logic error with the All Wheel Drive Electronic Control Unit (AWD ECU). This bulletin provides instructions to update the AWD ECU to r
Some Palisade (LX2) vehicles may exhibit engine oil leakage at the engine oil filter housing assembly due to deterioration of the housing seal. Hyundai is extending the warranty coverage for the engine oil filter housing seal to 15 years /
Showing the 8 most recent of 54 technical service bulletins on file with NHTSA.
RE: Failed Radar Braking on a 2024 Hyundai Palisade What component or system failed or malfunctioned .. . . On Feb 8th, 2026 I was driving in to Lakeland FL on I-75 N, in the right hand lane, near a green stoplight following a car 2 lengths ahead. The radar cruise control was slowing me down, keeping up with the car in front. Another driver suddenly cut in front of me from the far left lane. The cruise slammed on the brakes. Within seconds he took a hard right to catch an exit ramp. The r
My vehicle hyuandai pallasade 2024 was stopped behind a white car. My vehicle was struck from behind. The vehicle was a large truck that hit at approximately 55-60 mph per highway patrol. This pushed my Hyundai into the white car in front of me and flipping my vehicle front down into a ditch with rear tires suspended in the air. The airbags did not deploy, the entire third row collapsed up to the second row. My vehicle sustained front, rear and side impact with no airbag deployment.
As the vehicle drove over railroad tracks the steering wheel began to shake violently and I attempted to push the brake pedal with my full body weight but the brakes would not work and the car lunged forward, striking the vehicle in front of me. The failure of the brake system on my 2024 Hyundai Palisade prevented me from stopping the vehicle and thus I impacted the vehicle in front of me putting not only my life in jeopardy but also the driver of the car in front of me. I sustained a neck i
The contact rented a 2024 Hyundai Palisade. The contact stated that while the vehicle was in park(P), she exited the vehicle and proceeded to the rear of the vehicle. The contact stated that while attempting to open the rear latch, the vehicle started rolling backward. During the incident, an occupant who is the contact's daughter jumped out of the vehicle to assist the contact with attempting to stop the vehicle. A 4-month-old child was in the vehicle during the failure. The vehicle collided wi
I was pulling into my driveway [XXX] when I engaged the brake pedal pushing it fully down to stop behind my other vehicle. The antilock brake system seemed to turn on and the car did not stop. The steering wheel started shaking violently and the car went forward another 10-15 feet and I crashed into my other car, all while the brake pedal was completely down. We brought the car in to the dealership, Ettleson Hyundai in Countryside, IL, where they could not reproduce the event. They changed out
Driving slowly in a parking lot, went over a speed bump and the car suddenly started to shake/rumble and the brakes did not work. Almost hit the car infront of me. Very forcibly, applied brakes again which did stop the car. Just did a Google search and others have reported same issue and one suggested to file this complaint with you as apparently Hyundai is doing nothing about it. Car has just over 3000 miles on it and we have had no other issues. We have not brought it to service as it has
There is a known issue documented online regarding the 2024 Hyundai Palisade and the ABS system. On multiple occasions we have noticed that when driving at slow speeds (less than 25 miles per hour) and if the road is slightly uneven, gravel, on an incline or decline, the brake pedal start to vibrate and there is loss of control and increased stopping distance. We reported this previously to Hyundai dealership and they found no fault. Today, 9/30/25, the care was involved in a low speed colli
abs fails when going over bumps at speeds of 15mph or under and I've had it repaired 2x in the 3 months I've owned it
Date: [XXX] Time: 12:00 PM Location: [XXX] (heading toward [XXX] ). - Turned left into the second entrance to the parking lot between [XXX] and [XXX]. My Vehicle: 2024 Hyundai Palisade Night Edition Incident Summary While entering the parking lot, the vehicle in front of me braked. When I attempted to brake (approx. 10 mph), my vehicle: - Began pulsing/jerking, consistent with ABS engaging. No matter how hard I pressed the brake my car would not stop it's kept pulsing - alerts and Beeping with
When driving over slightly uneven terrain the brakes malfunction and don't work. I start feeling a vibrating and rattling and the car just doesn't stop when braking. There are many reports of this issue online. Yesterday I was involved in an accident because of this and that I god I didn't hit a person only a car and no one was seriously injured
Vehicle Safety Concern - Unintended Vehicle Movement Vehicle Information: 2024 Hyundai Palisade Incident Date: XXXXXXX Location: Commissary parking lot in [XXX] Incident Description: On XXXXXXX my wife parked our Hyundai Palisade in a designated parking space at the commissary. She properly engaged the parking gear selection and turned off the engine. After opening the rear hatch to retrieve shopping bags and securely closing it, she proceeded into the commissary to shop. Upon returning approxi
I was ata yield sign and the car in front of me started to go and had to slam on their brakes because a car ran a stop sign. I had started rolling forward and hit my brakes when I noticed she had hit her brakes. My vehicle started to vibrate and keep going. It did nit stop right away it way like it was just skiding. My vehicle has done this before but this time it did not stop quick enough to avoid hitting the vehicle in front t of me I have notified Hyundai of the issue and after doing resear
I was in stop and go traffic on a side road. I was traveling about 5-15 mph on an uneven road surface. The traffic stopped in front of me and I applied my brakes. I heard the grinding sound of the anti-lock brakes but my car did not stop. My foot was to the ground on the brake and it didn’t even slow down. I ended up hitting the car in front of me. This has happened before but I never hit anything before. It happens all of the time on uneven road surfaces such as man hole covered, rail road cros
The contact owned a 2024 Hyundai Palisade. The contact stated while driving at approximately 65 MPH, an 18-wheeler crashed while driving approximately 85-90 MPH into the rear end of the vehicle and impacted the vehicle approximately 4 times including the passenger side. As a result, the vehicle ricocheted into a concrete barrier. The contact did not recollect where the vehicle came to a stop. The contact mentioned that the driver of the 18-wheeler stated that he was unaware the contact vehicle w
Driving on a 4 lane street at approximately 25 mph in the right hand lane next to curb when another vehicle swerved from the left lane into my lane. I slammed on the brakes in an attempt to stop and avoid any contact with the other vehicle. All the brakes did was a hard and long shudder, and did not seem to even slow my car let alone stop the car. Fortunately, the other vehicle attempting to swerve into my lane stopped. My vehicle never stopped and only seemed to slow down slightly. All I
Showing the 15 most serious of 380 complaints filed with NHTSA.
