1994 Mazda B2300 Service and Repair Manual

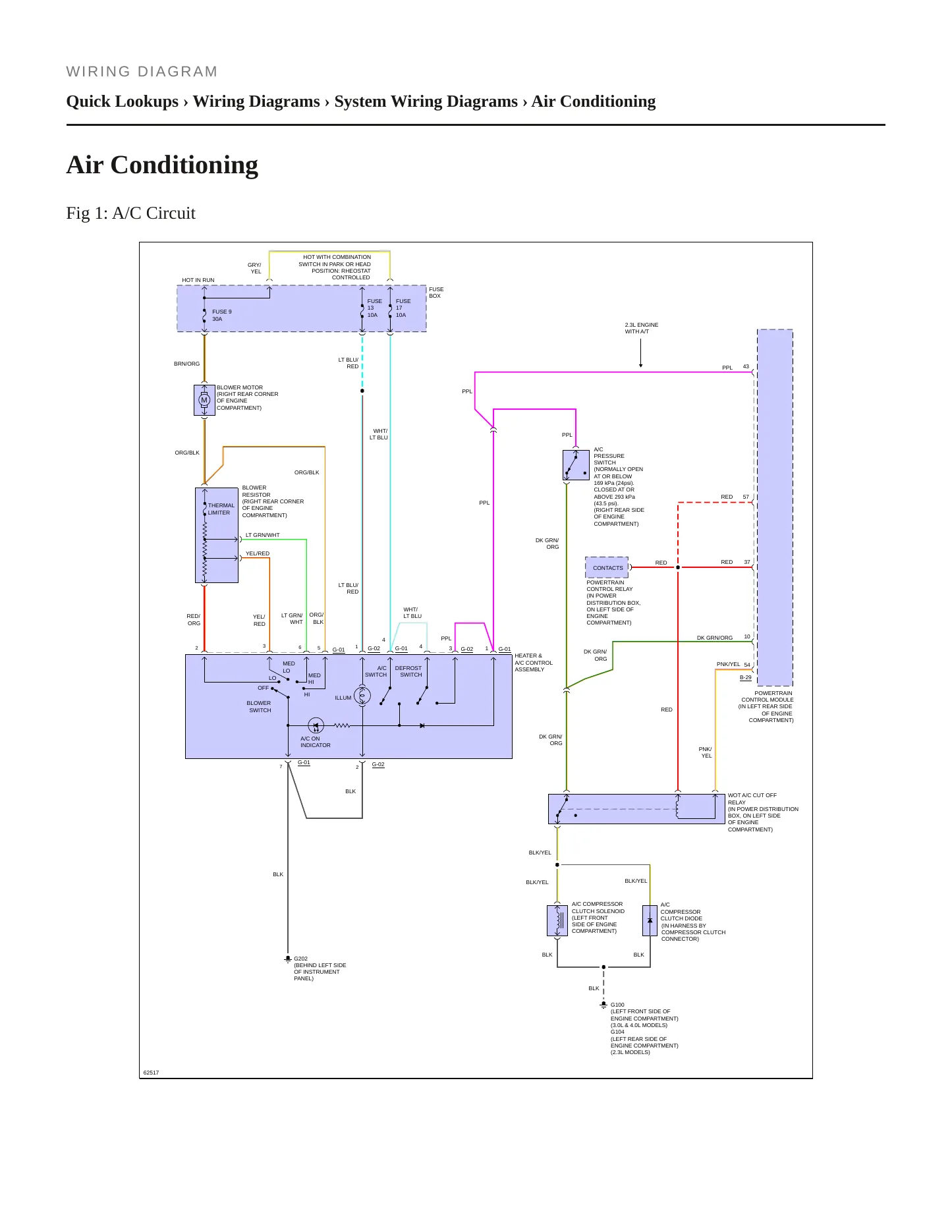

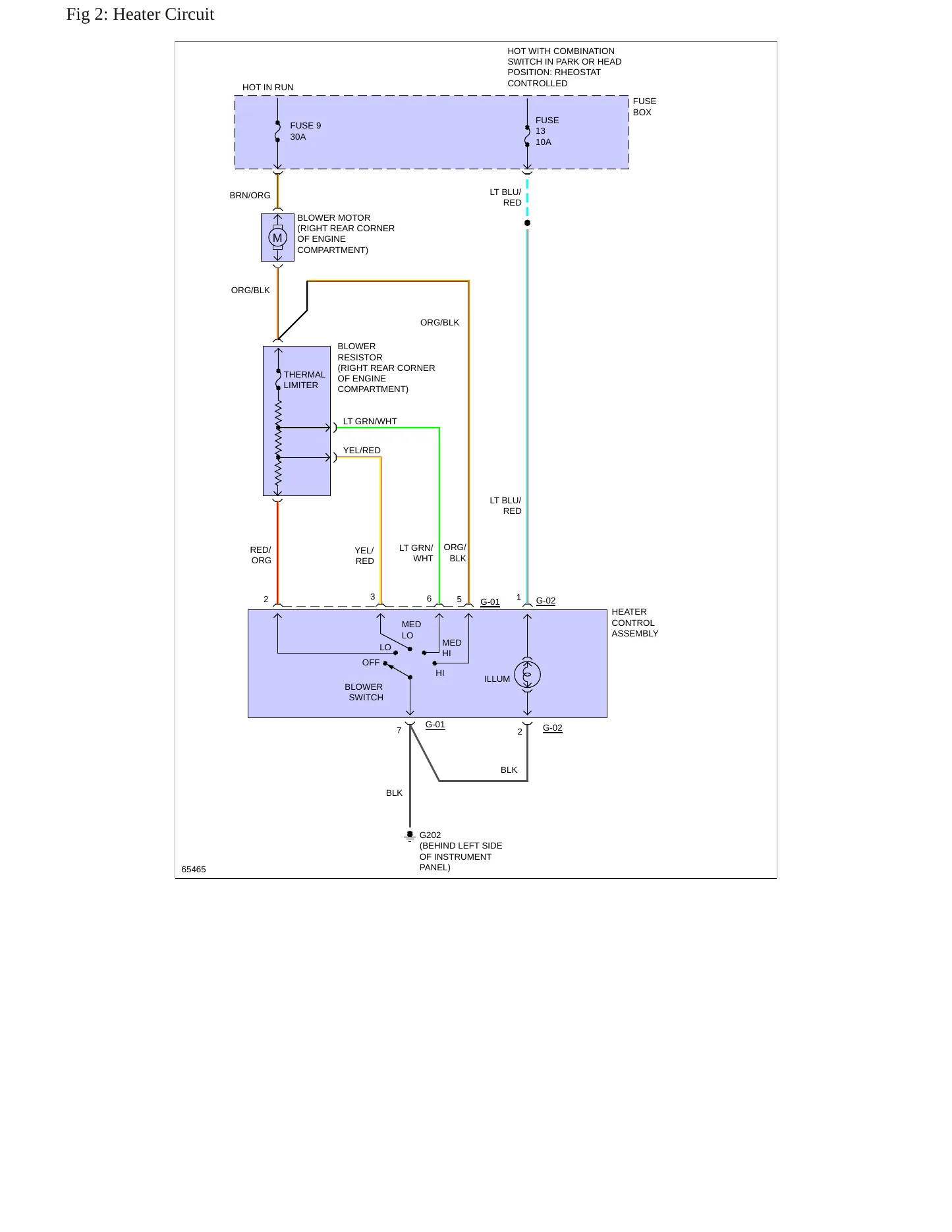

This factory service and repair manual for the 1994 Mazda B2300 covers the pickup in two body styles, the 2-door extended cab pickup and the 2-door standard cab pickup, and two trims, Base and SE. Its engine is a 2.3L inline-four of 140 cubic inches with a single overhead camshaft, naturally aspirated and running on gasoline. Procedures, specifications and torque values are given for that engine and its fuel, ignition and cooling systems, and for the transmission, drivetrain, brakes, suspension and steering, with wiring diagrams for the electrical system.

Engines covered

• 2.3L inline-four (140 cu in) — SOHC, naturally aspirated, gasoline

Body styles covered

• 2-door extended cab pickup
• 2-door standard cab pickup

Trims covered

• Base
• SE

Known issues on the 1994 B2300. The manual's engine specifications, torque values and diagnostics for the 1994 B2300 center on its single-overhead-cam 2.3L four, together with procedures for the gasoline fuel system, ignition and cooling. Behind the engine, procedures and specifications apply to the transmission and drivetrain; underneath, to the brakes, suspension and steering. Wiring diagrams cover the electrical system of the standard cab and extended cab pickups in Base and SE trims.
